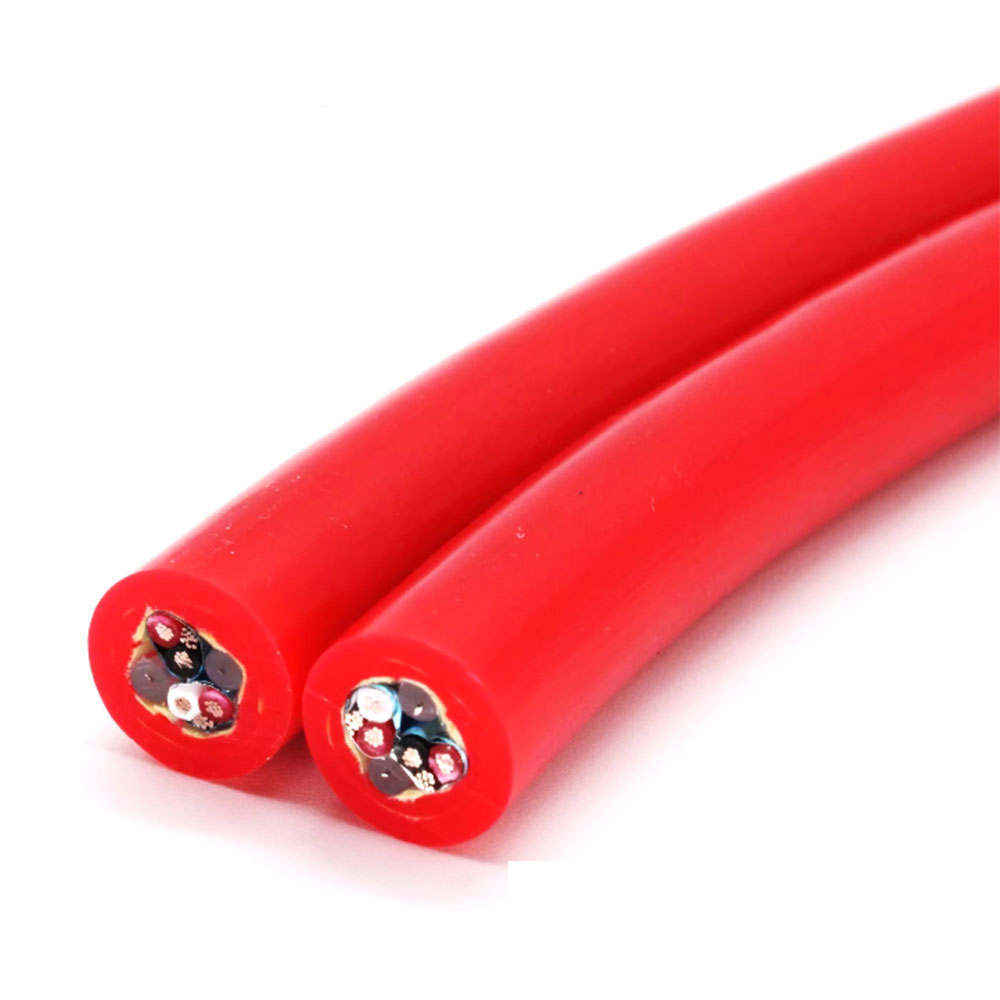

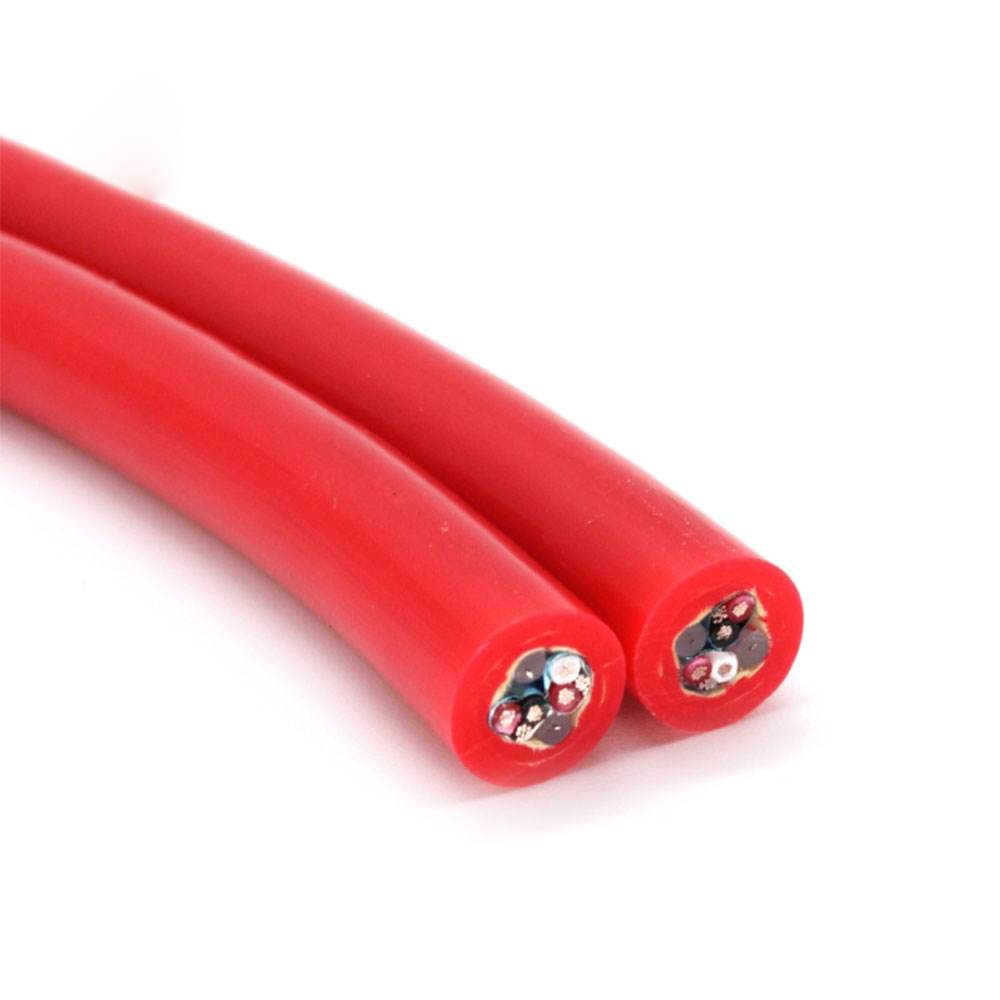

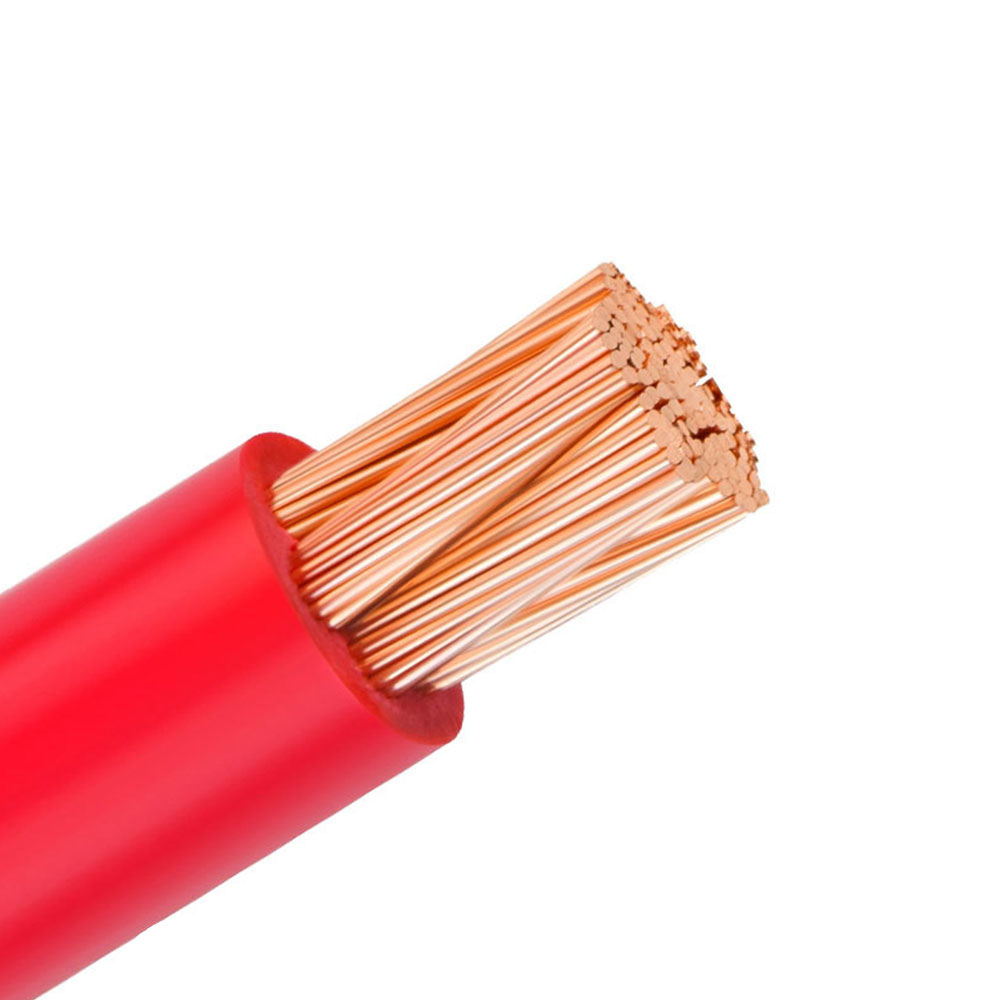

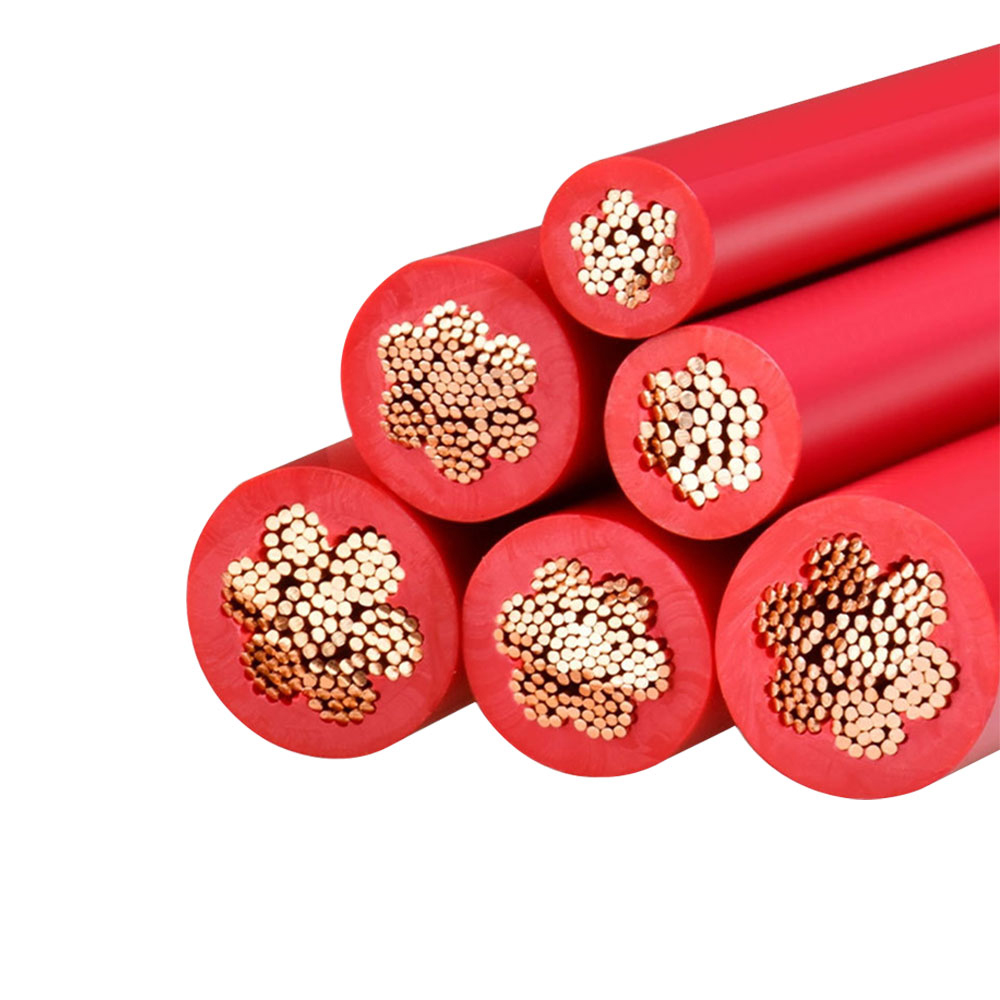

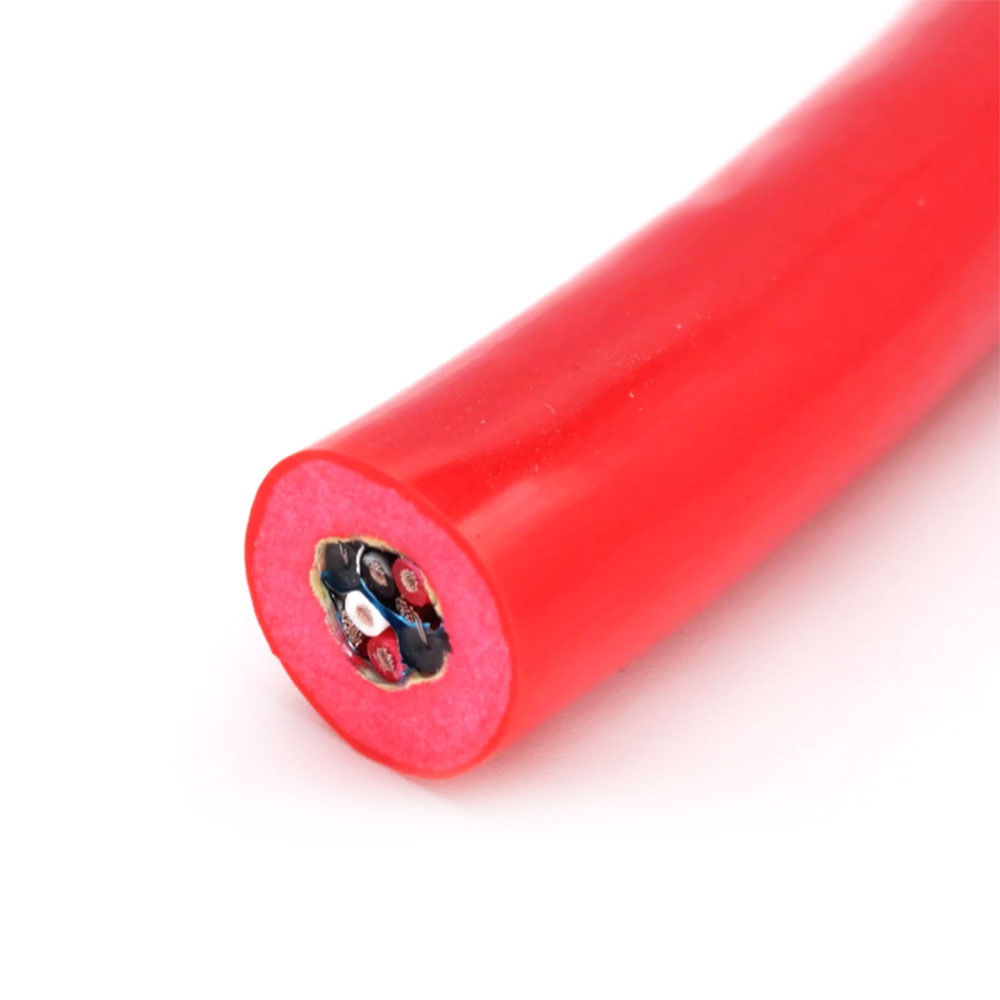

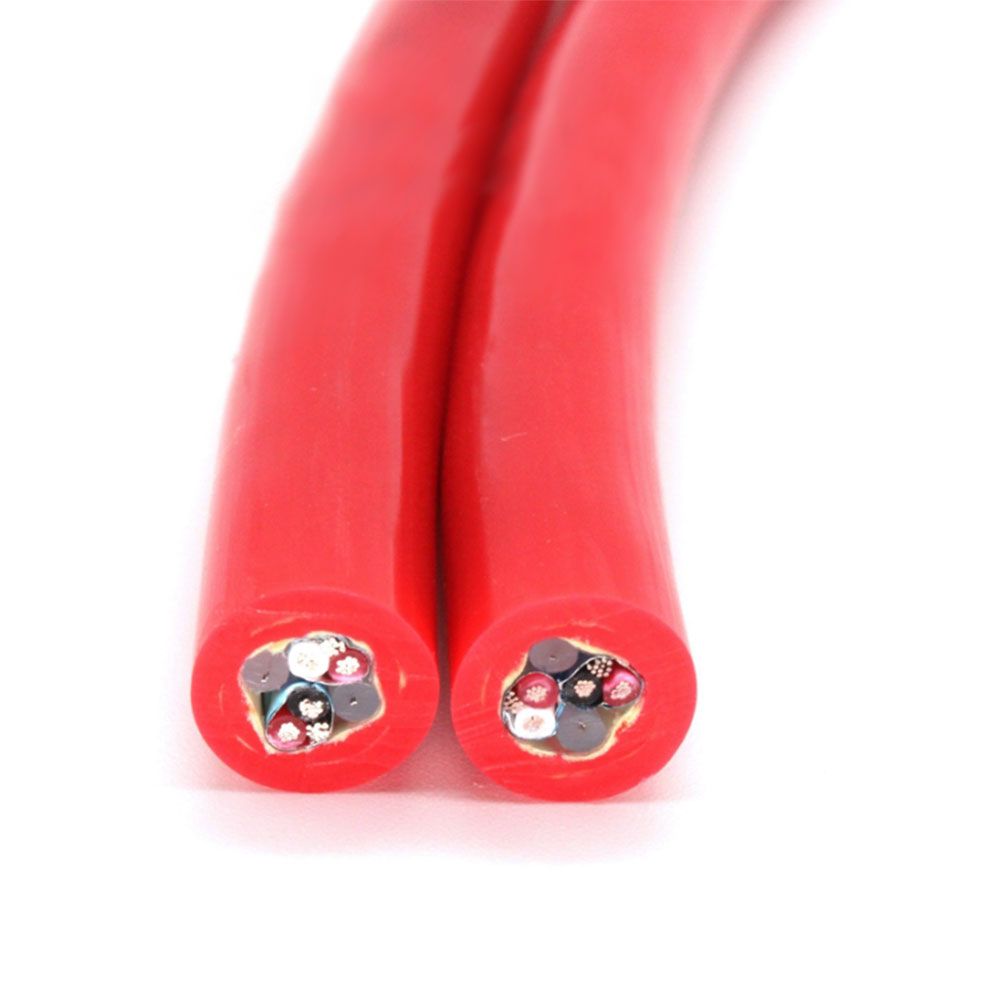

GG Extreme temperature adaptability Silicone Rubber Cable

Excellent Chemical Resistance:
- Resistant to oil, solvents, acids, and alkalis (except strong acids/bases)
- Resistant to ozone and UV radiation (withstands direct outdoor exposure for over 10 years)
Mechanical and Safety Characteristics:
- High flexibility: dynamic bending lifespan far exceeds that of ordinary rubber cables
- Flame-retardant and self-extinguishing: self-extinguishes within 2 seconds after flame removal (VW-1)
- Low smoke and non-toxic: smoke density during combustion <150 (IEC 61034)
Electrical Reliability:
- Insulation resistance remains stable at high temperatures
Application Scope:
Used in harsh industrial environments, specialized equipment, and high-end facilities where extreme temperatures, frequent movement, severe chemical corrosion, or high fire safety requirements are present.

Core Number Range:1-core (single-core power cable) to 50-cores (control cable)
Cross-sectional Area Range:
- Low-voltage power type: 0.5 mm² to 400 mm² (large cross-sections for high current)
- Control/signal type: 0.2 mm² to 6 mm² (multi-core stranded, with overall shielding)
Conductor: Class 5 or Class 6 multi-strand tinned copper (corrosion-resistant) or bare copper; nickel-clad copper (ultra-high temperature resistant) optional
Insulation: Silicone rubber, thickness customized according to voltage rating and cross-section
Sheath Options:
- Silicone rubber outer sheath (overall flexibility)
- Glass fiber braiding + silicone resin impregnation (enhanced mechanical protection)
Shielding Options:
- Tinned copper braided shielding (coverage ≥80%)
- Aluminum-plastic composite tape + drain wire
Color Identification:
- Insulation layer color-coded (black/brown/blue/yellow-green, etc.)
- Overall sheath + core numbering
Rated Voltage:
- Low voltage: 600V
- Medium-high voltage: 2kV to 15kV
- Maximum (custom): 30kV
Long-term Operating Temperature:
- Conventional: -60°C to +180°C
- Special formula: -70°C to +250°C
Short-term Overload Temperature:
- 250°C (4 hours)
- 300°C (1 hour, special formula)
Minimum Installation Temperature:
- -40°C (conventional)
- -55°C (special formula)
Withstand Voltage Test:
- 3.5kV AC / 5 minutes (600V grade)
- 2-3 times rated voltage (e.g., 25kV test for 10kV cable)
- Customized
Insulation Resistance:
- ≥1000 MΩ·km (20°C, conventional)
- ≥2000 MΩ·km (20°C, medium-high voltage)
- ≥5000 MΩ·km (special formula)
Minimum Bending Radius:
- Fixed installation: 6×D (cable outer diameter)
- Mobile use: 10×D
- 8-12×D (depending on voltage grade, medium-high voltage)
- Customized (as low as 4×D, special formula)
