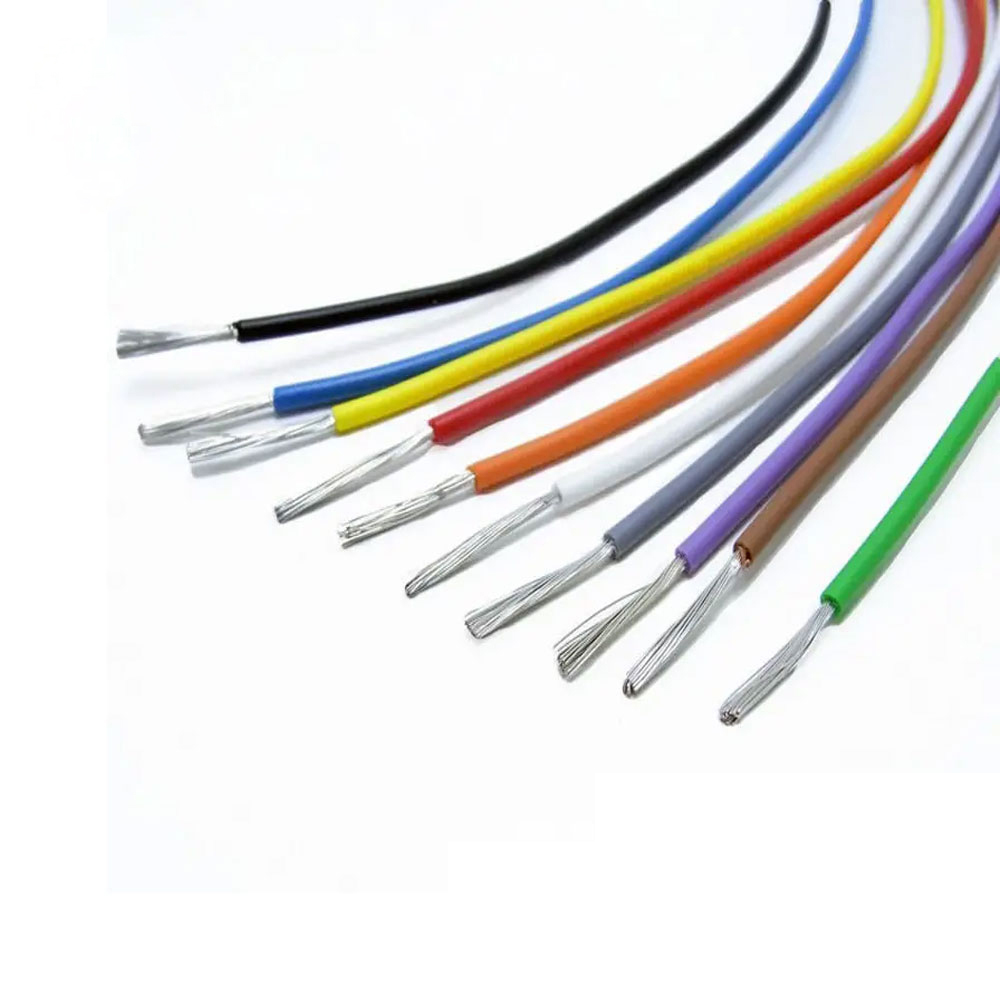

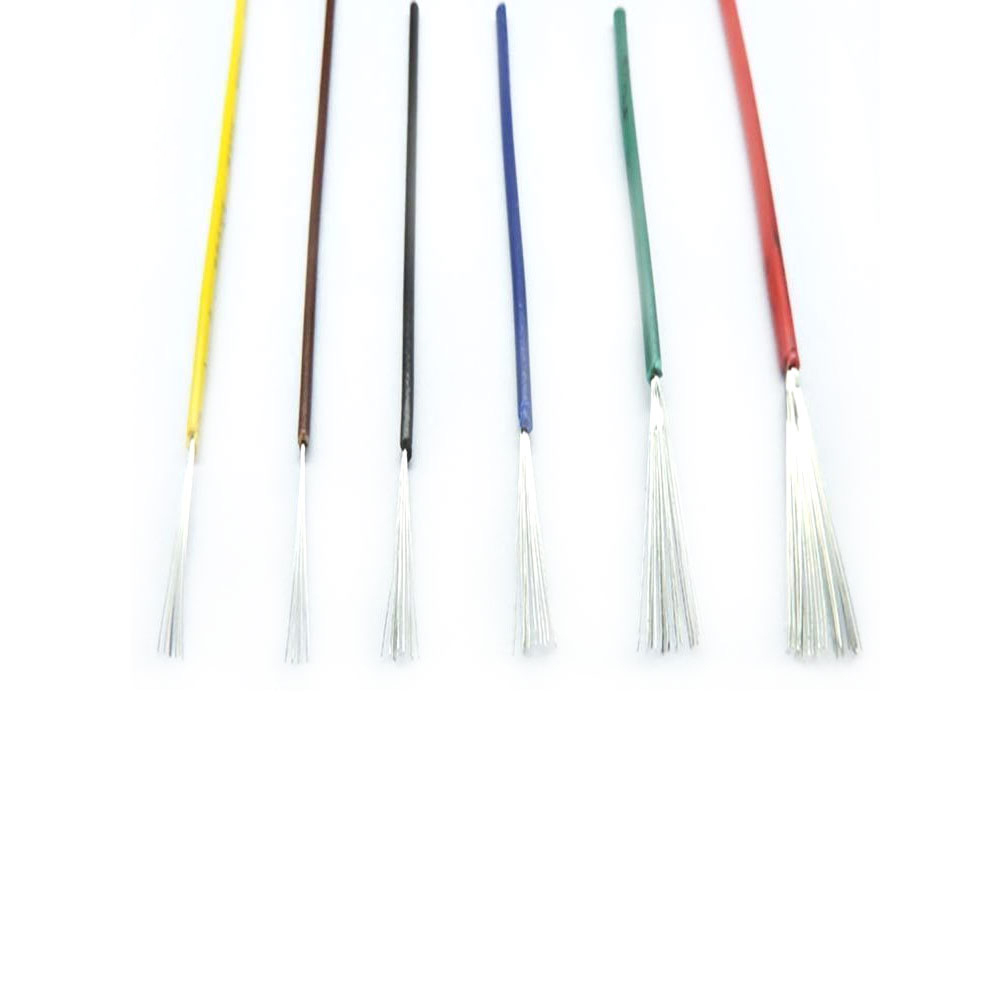

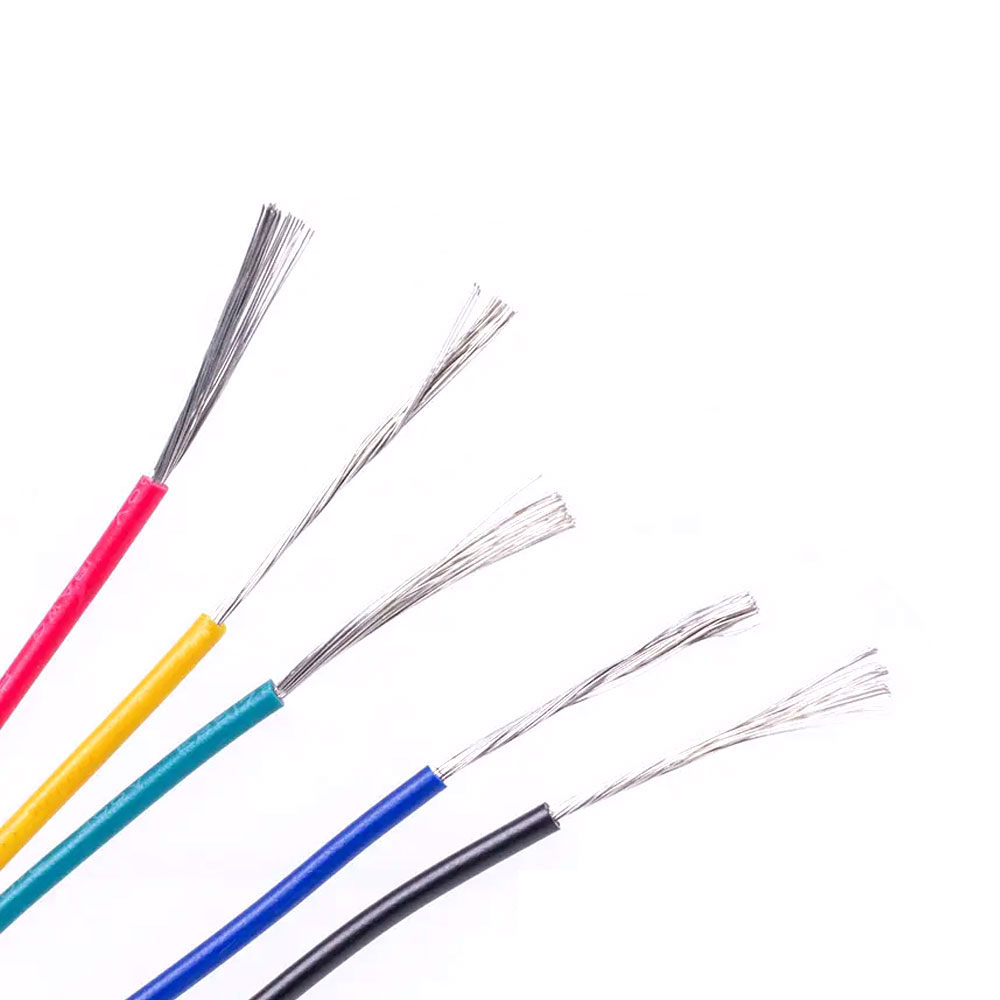

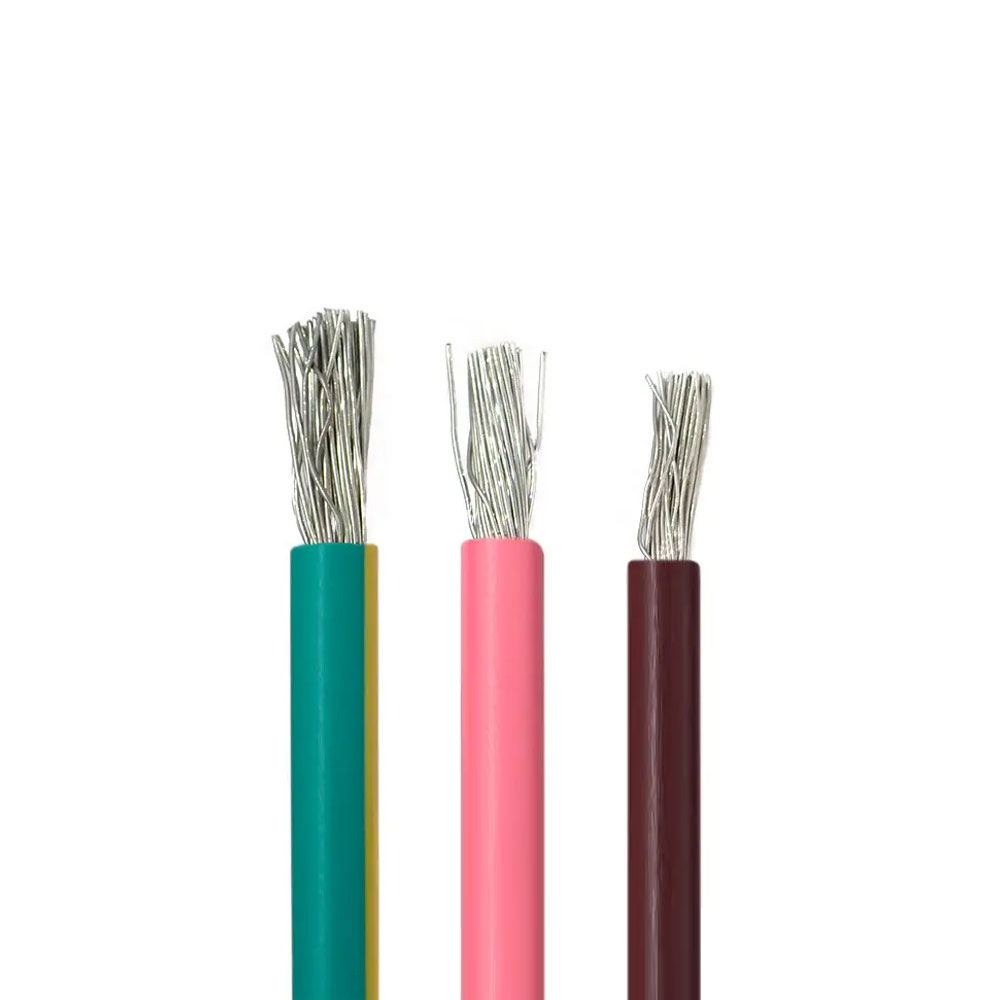

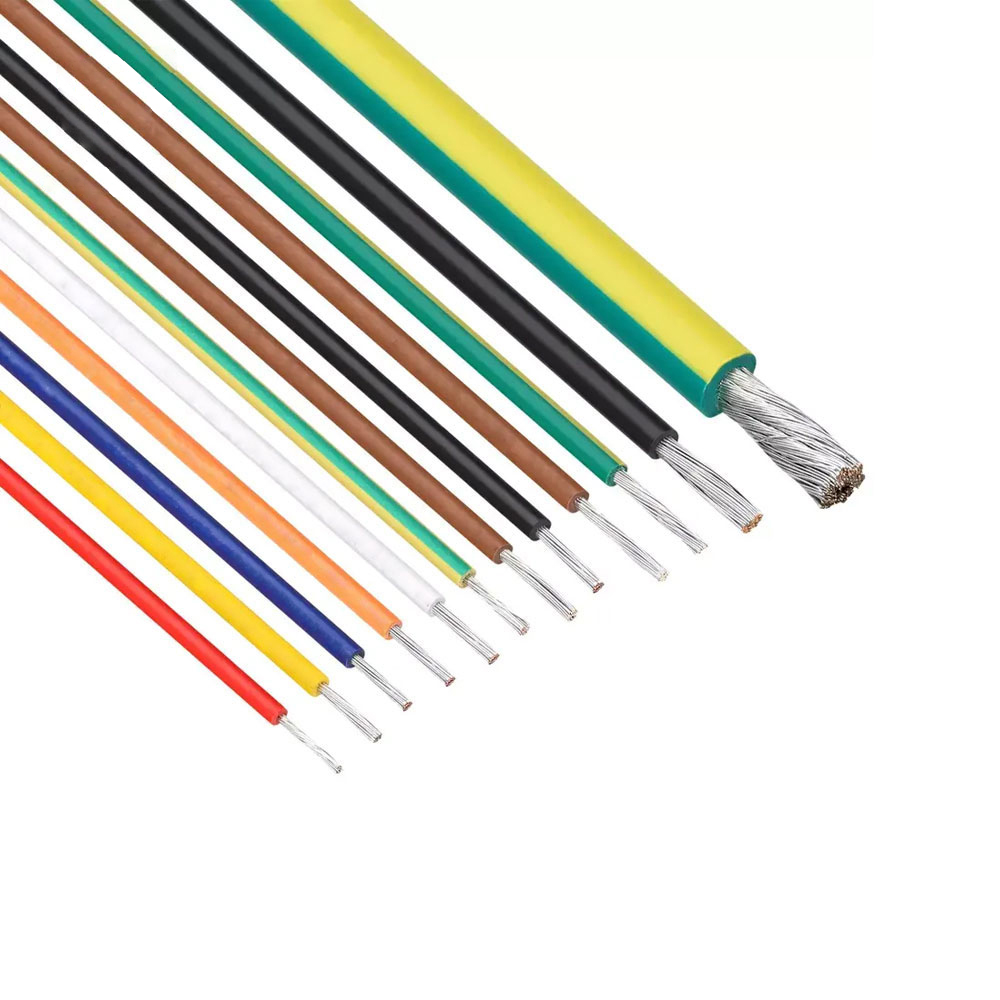

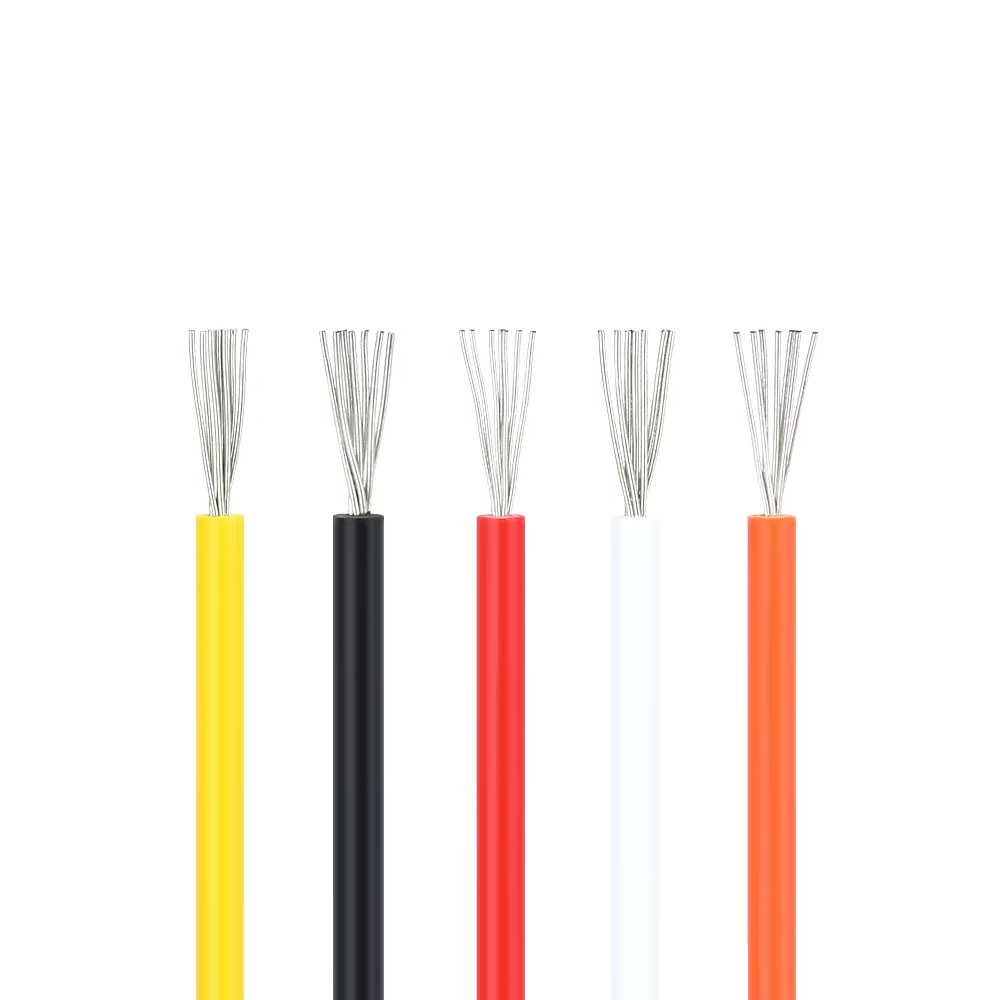

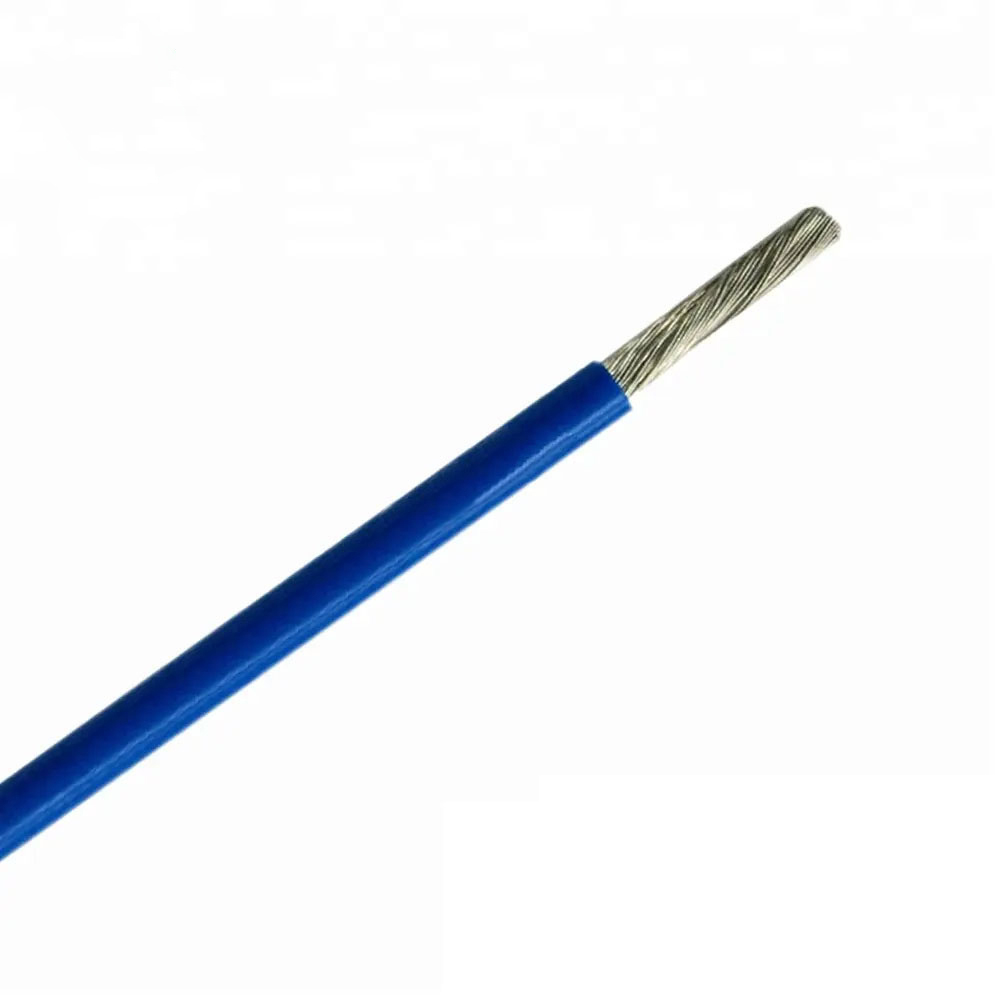

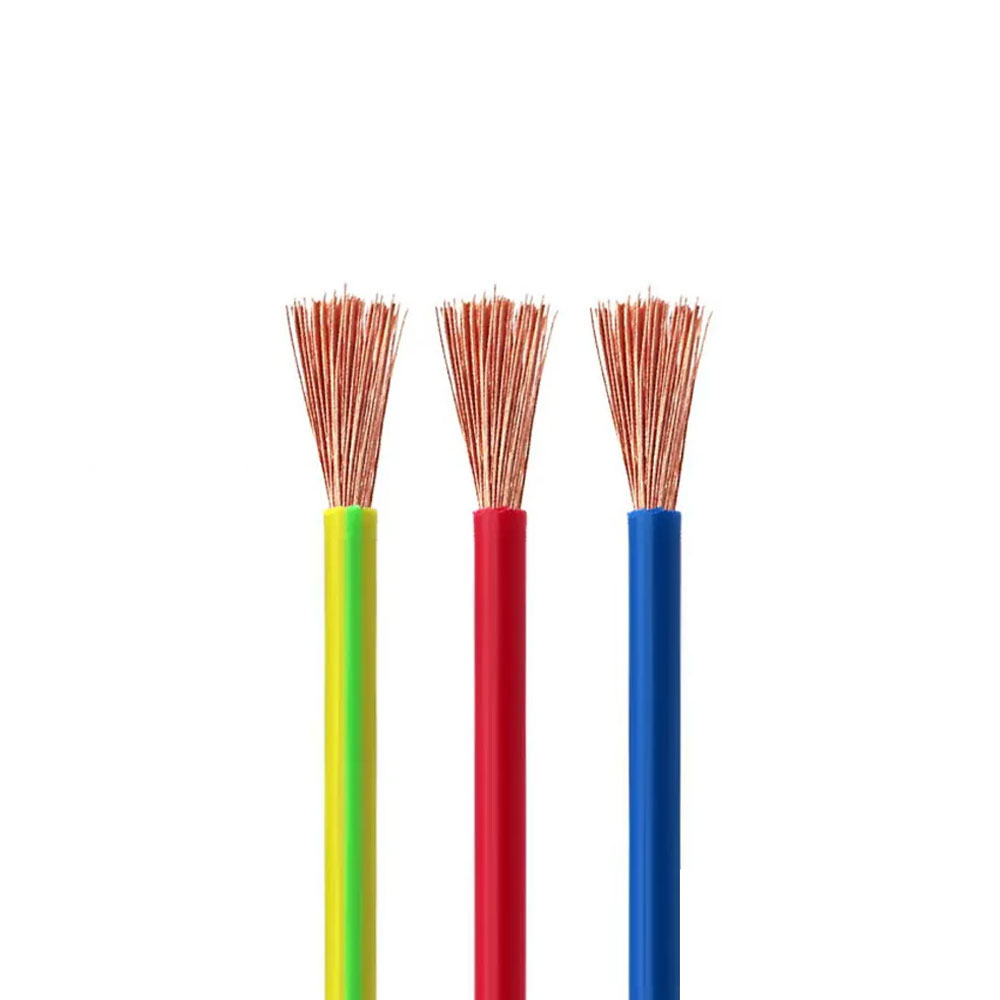

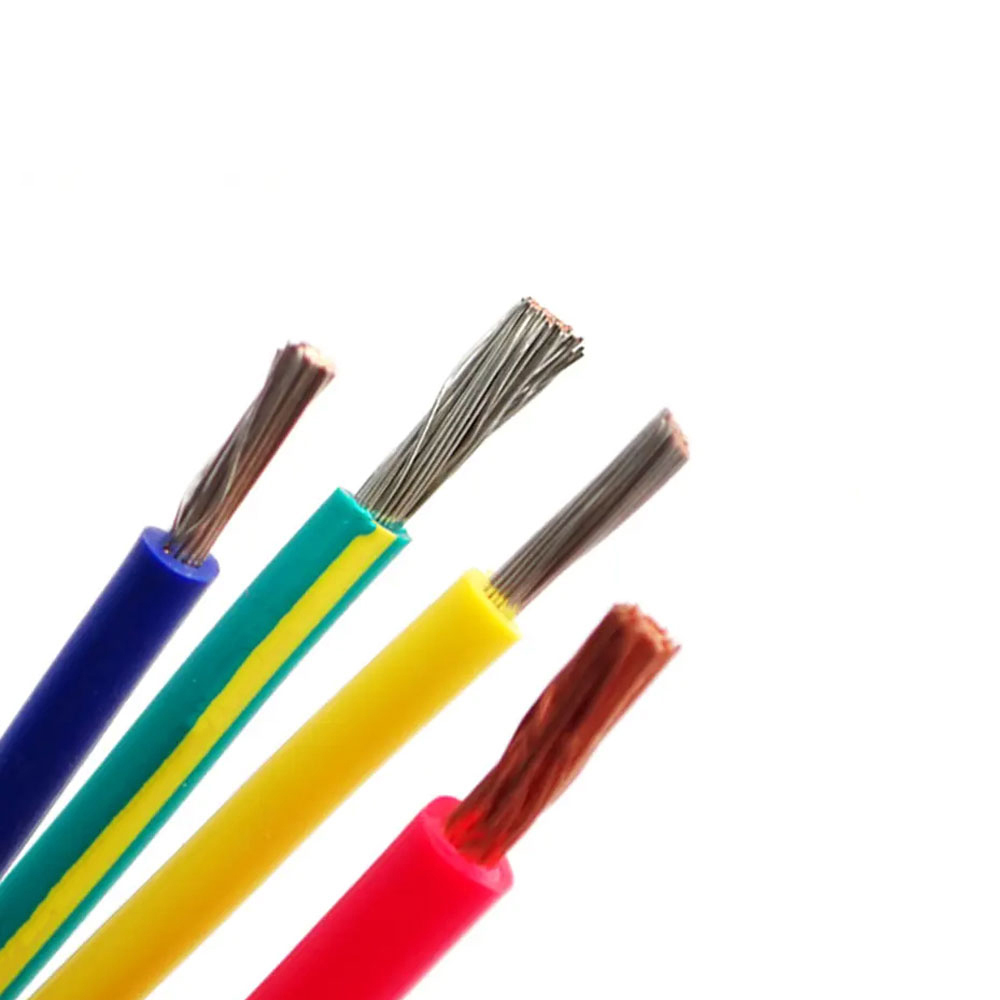

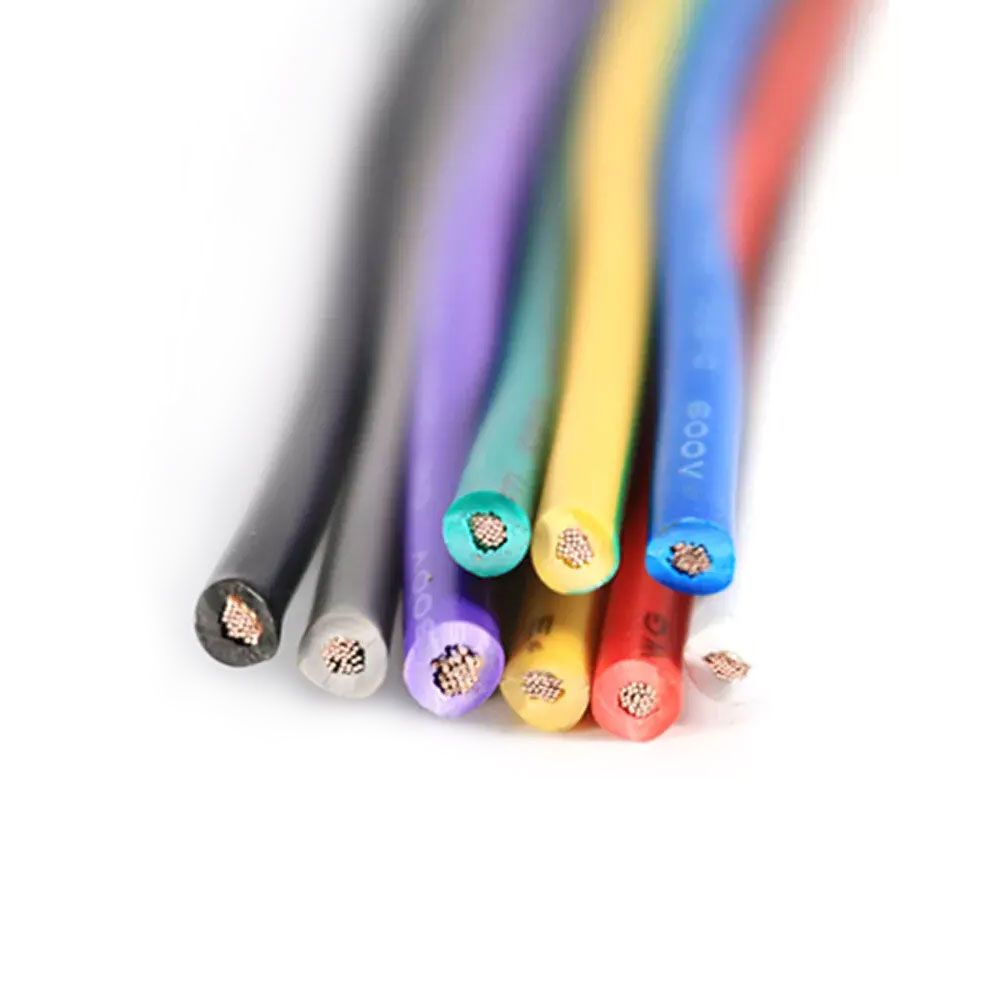

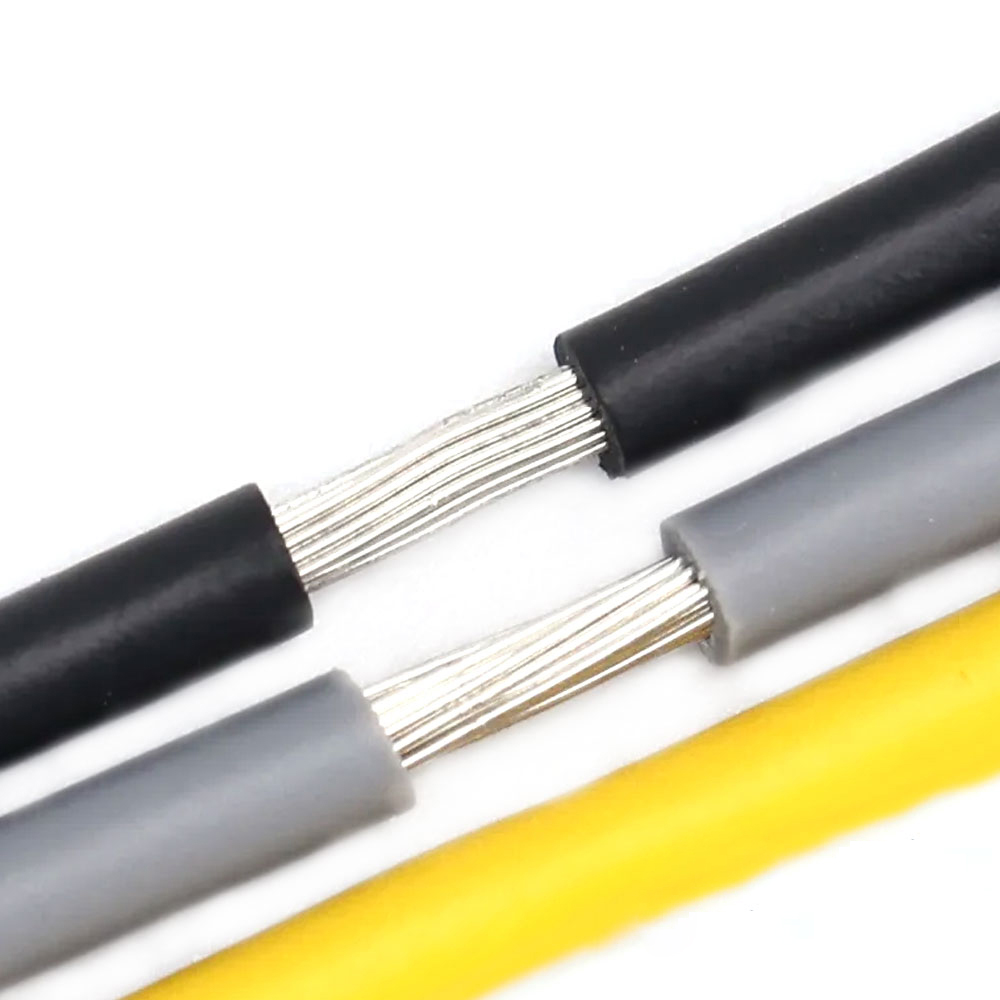

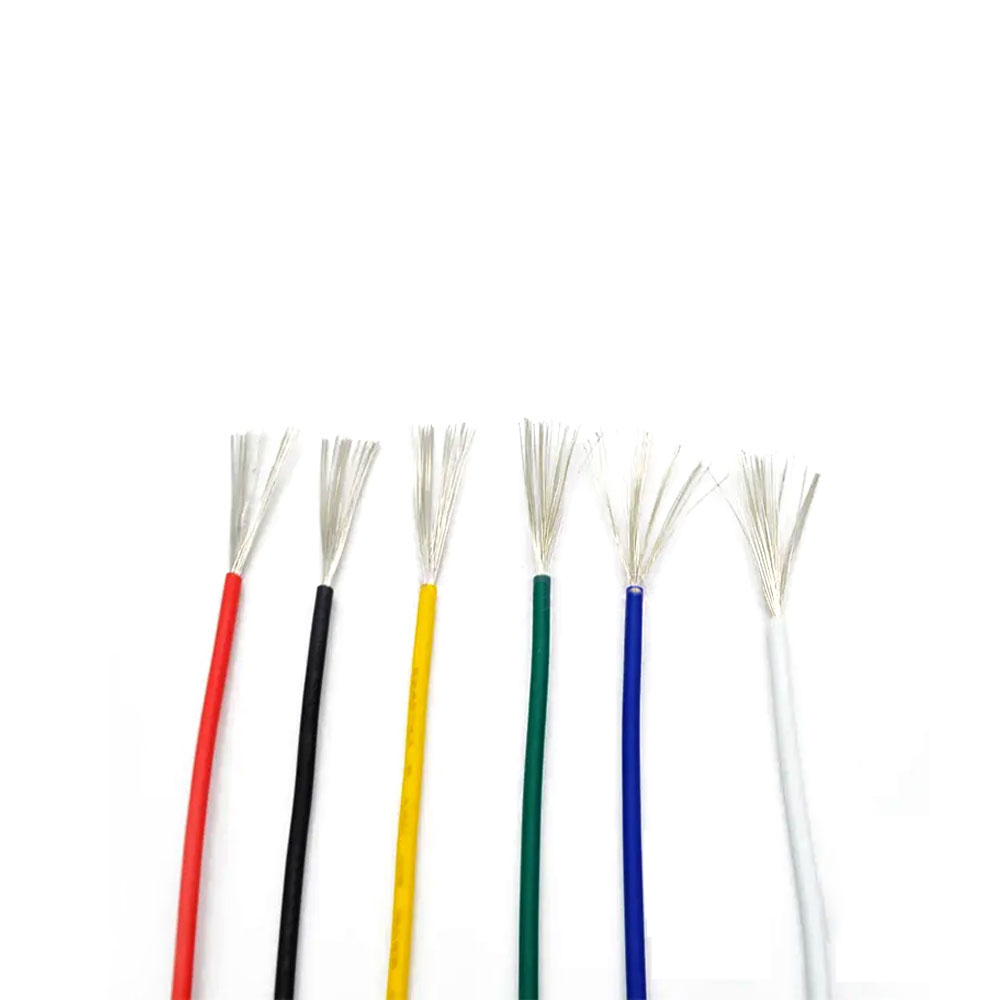

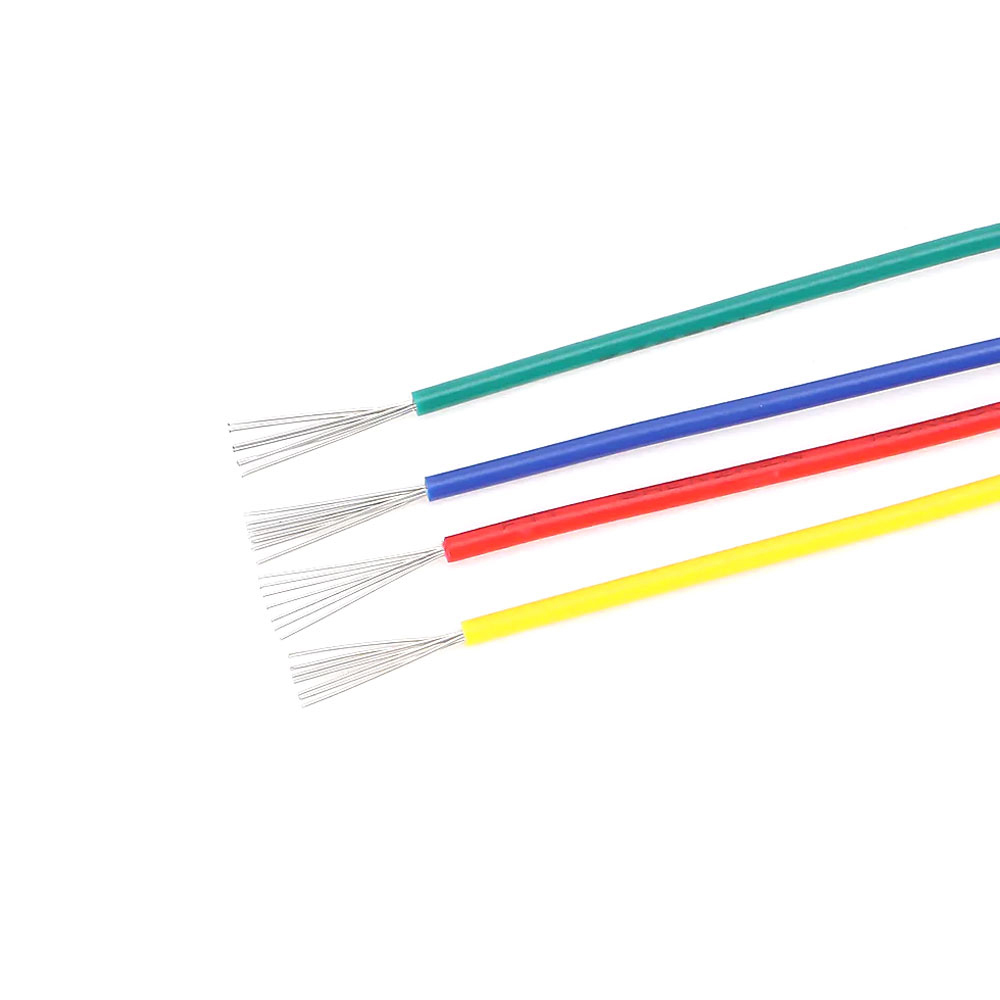

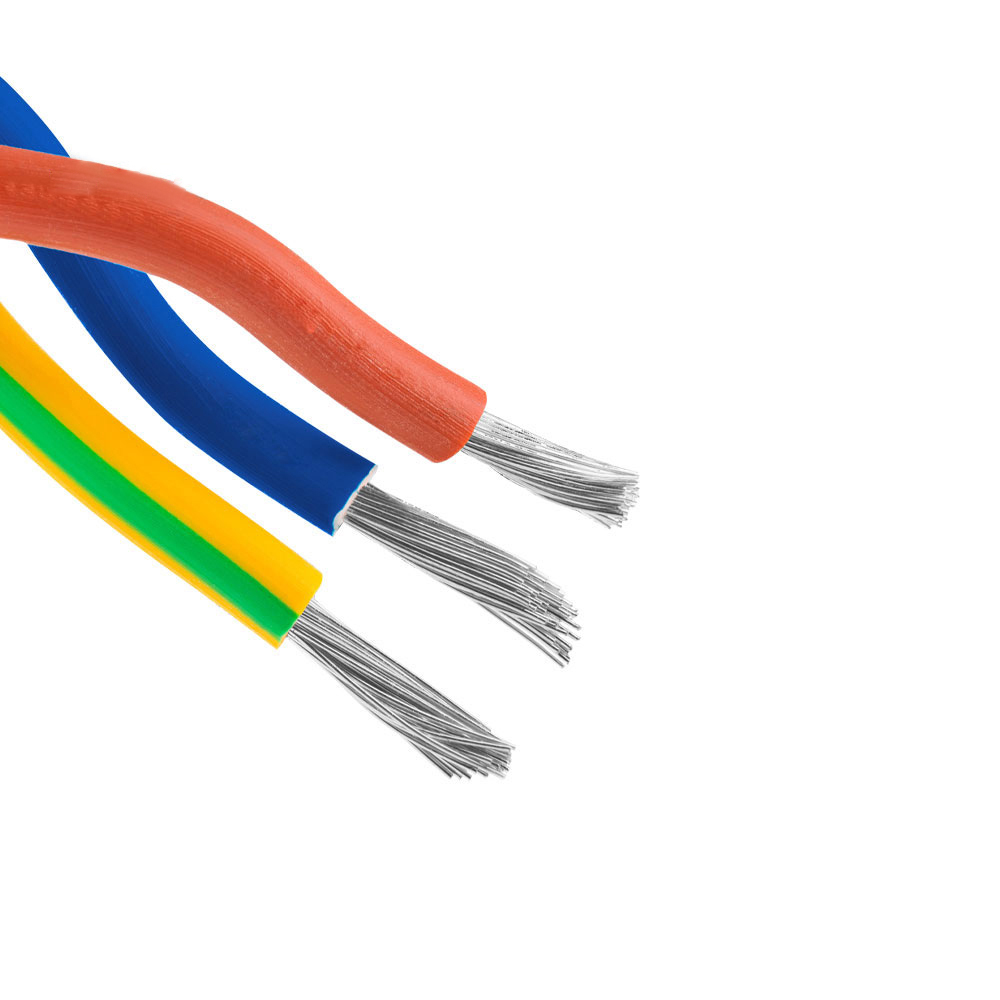

UL1571 High temperature resistance UL-Certified Cable

UL1571 Wire Advantages
Ultra-Flexible Thin Wire Design: Ultra-fine conductor stranding suitable for high-density precision wiring
High Temperature Resistance: 105°C long-term operating temperature, higher than most electronic wire standards
Stable Electrical Performance: Uniform insulation, good voltage resistance, reliable signal transmission
Rich Color Identification: Offers dozens of standard colors to support complex circuit identification
U.S. Standard Electronic Wire Compliance: Passes UL certification, meeting U.S. internal wiring requirements for electronic equipment

UL1571 Wire Selling Points
Standard Wire for North American Precision Electronics: Widely used for high-density internal wiring in computers and communication equipment in the U.S. and Canadian markets
UL-Certified Ultra-Flexible Thin Wire: Complies with the UL 1061 standard, supporting rapid product certification in North America
Plug-and-Play Precision Connection: Compatible with U.S. standard micro-terminals and connectors, requiring no preprocessing
Cost-Effective High-Density Solution: Provides low-cost internal jumpers for precision electronic products exported to North America
Complete Specifications and Fast Delivery: Common AWG sizes (32–22 AWG) are well-stocked, supporting small-batch, quick response

UL1571 Wire Application Scope
Internal Wiring for Computers: Internal signal jumpers for servers, motherboards, and hard drive backplanes in the U.S. and Canadian markets
Connections for Communication Equipment: High-frequency signal lines inside switches, routers, and base station equipment
Internal Wiring for Precision Instruments: Low-voltage signal transmission inside test instruments and medical equipment
High-Density Wiring for Consumer Electronics: Camera and sensor connections inside smartphones and tablets
Precision Repair and Replacement in North America: Specialized ultra-thin wires for precision electronic equipment repairs in the U.S. and Canada
Compliance Certifications: UL

Conductor: Annealed copper, typically solid or stranded. Commonly in the range of AWG 20 to AWG 30.
Insulation Layer: Solid or foamed polyethylene, which is the key layer for constructing its characteristic impedance.
Shielding Layer: Aluminum foil shield + braided copper shield, typically dual-shielded to provide excellent interference resistance.
Sheath: Polyvinyl chloride (PVC) or flame-retardant polyolefin.
Characteristic Impedance:75 ohms ± a certain percentage (e.g., ±3Ω). This is its most critical electrical parameter, specifically designed for video and RF signal matching.
Rated Voltage:300 Volts (for signal transmission purposes, voltage is not the primary consideration).
Long-term Operating Temperature:80°C (common). Some models can reach 105°C.
Minimum Bending Radius:6 × D (D: cable outer diameter; careful bending is required to prevent impedance discontinuity).
Attenuation: The signal loss value (dB/100ft) at specific frequencies (e.g., 100MHz, 400MHz) is a key metric for evaluating its performance.
Shielding Effectiveness:** Typically requires high high-frequency shielding attenuation (e.g., > 90 dB @ 1 GHz).
