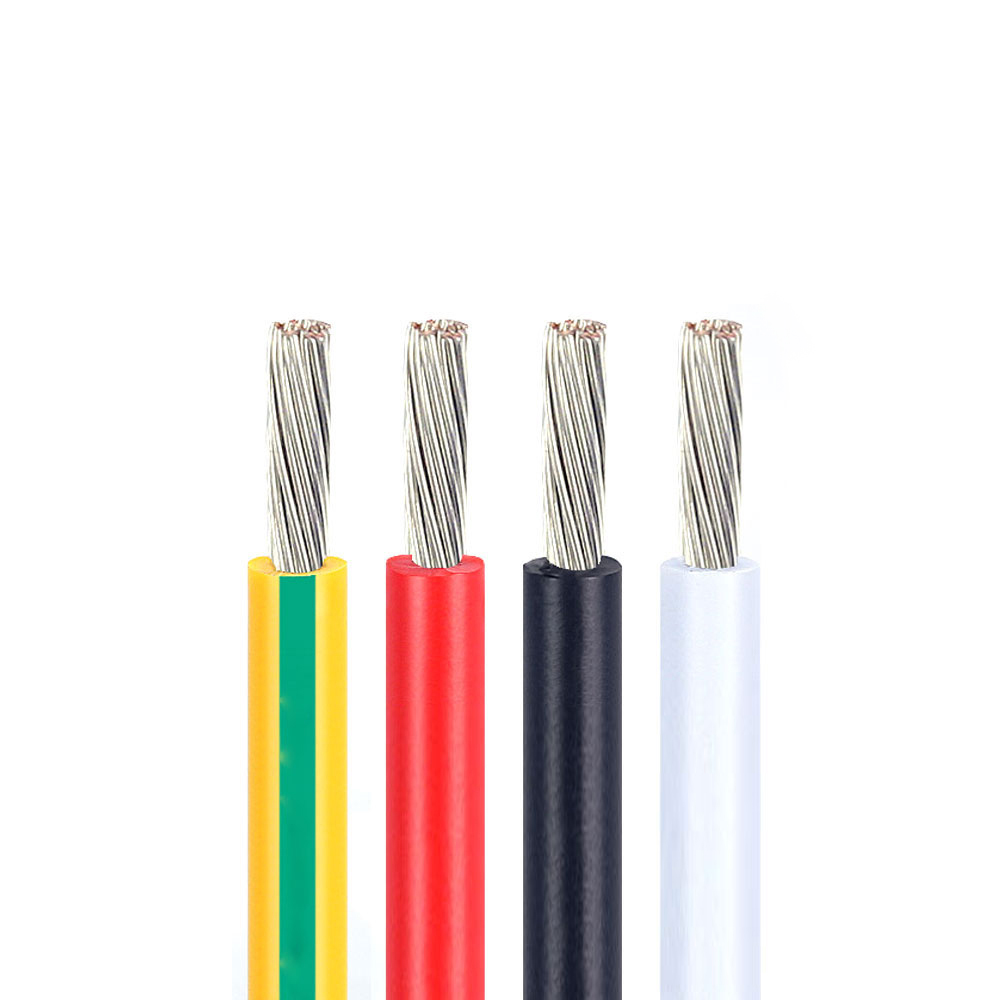

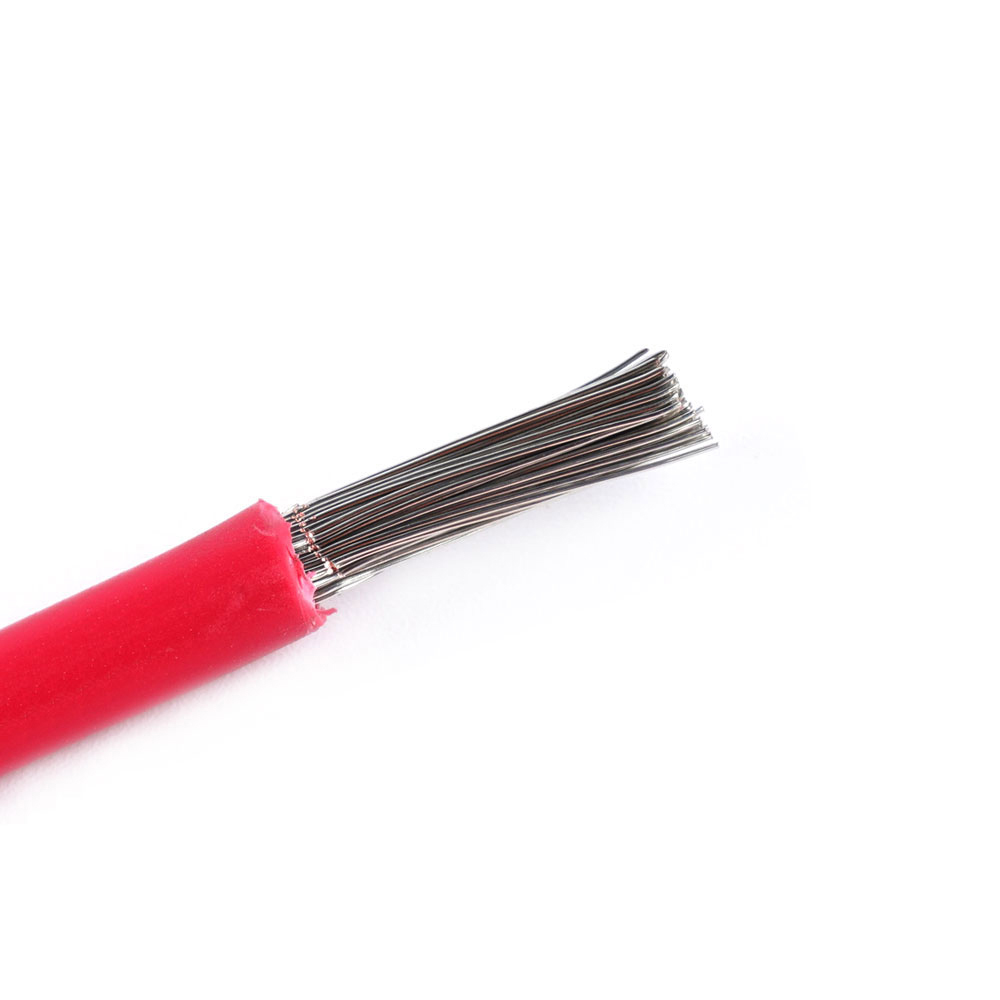

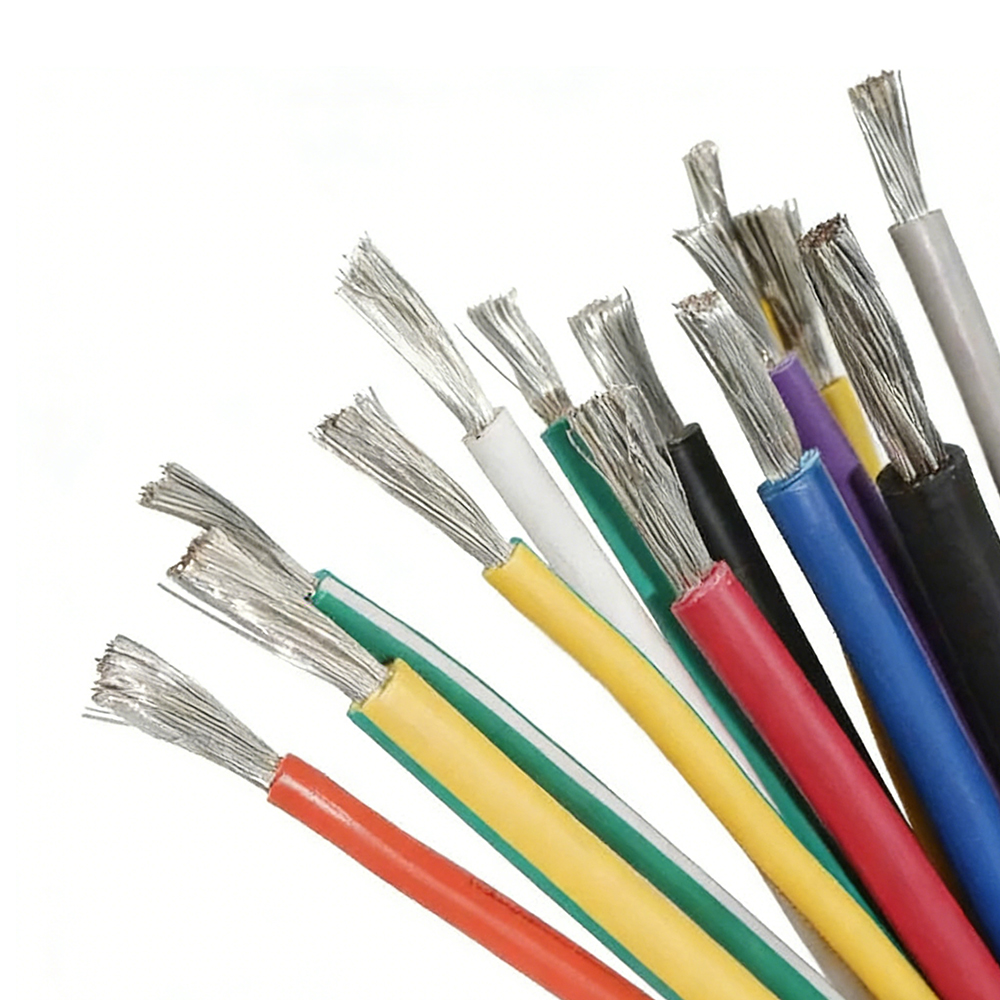

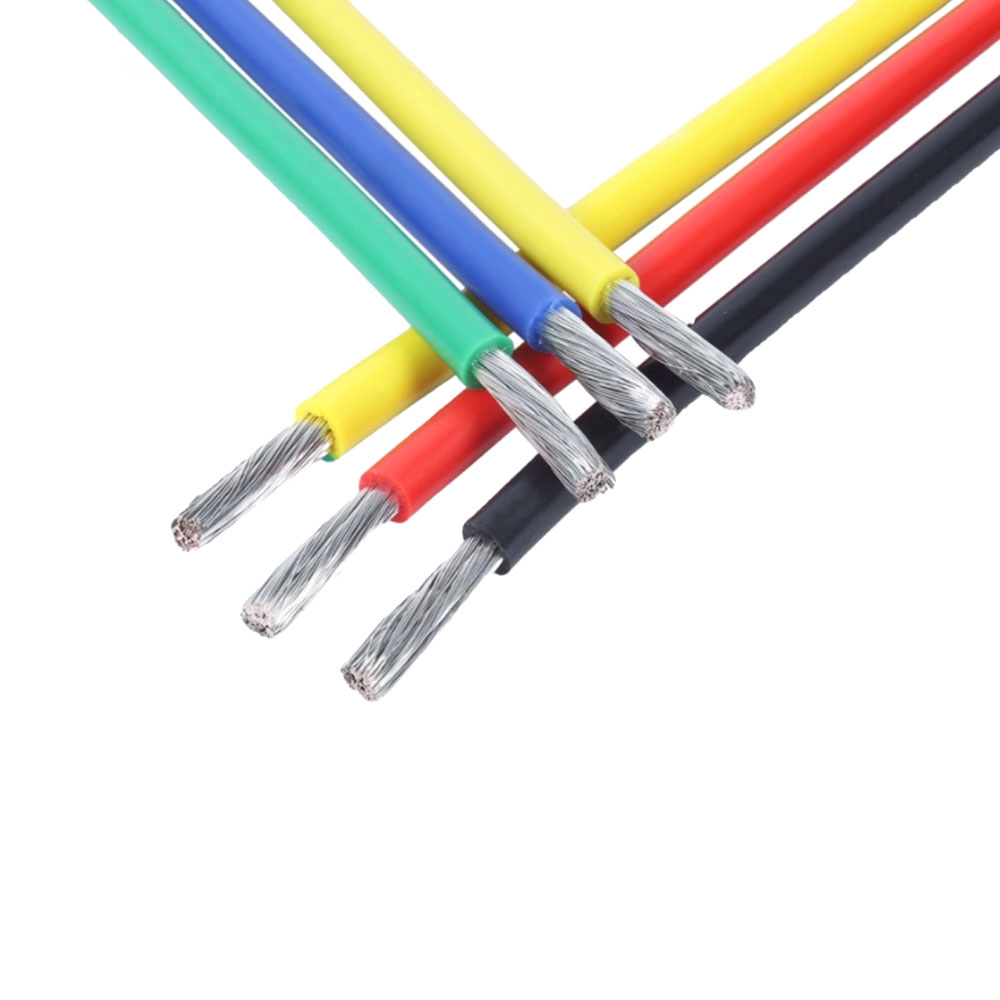

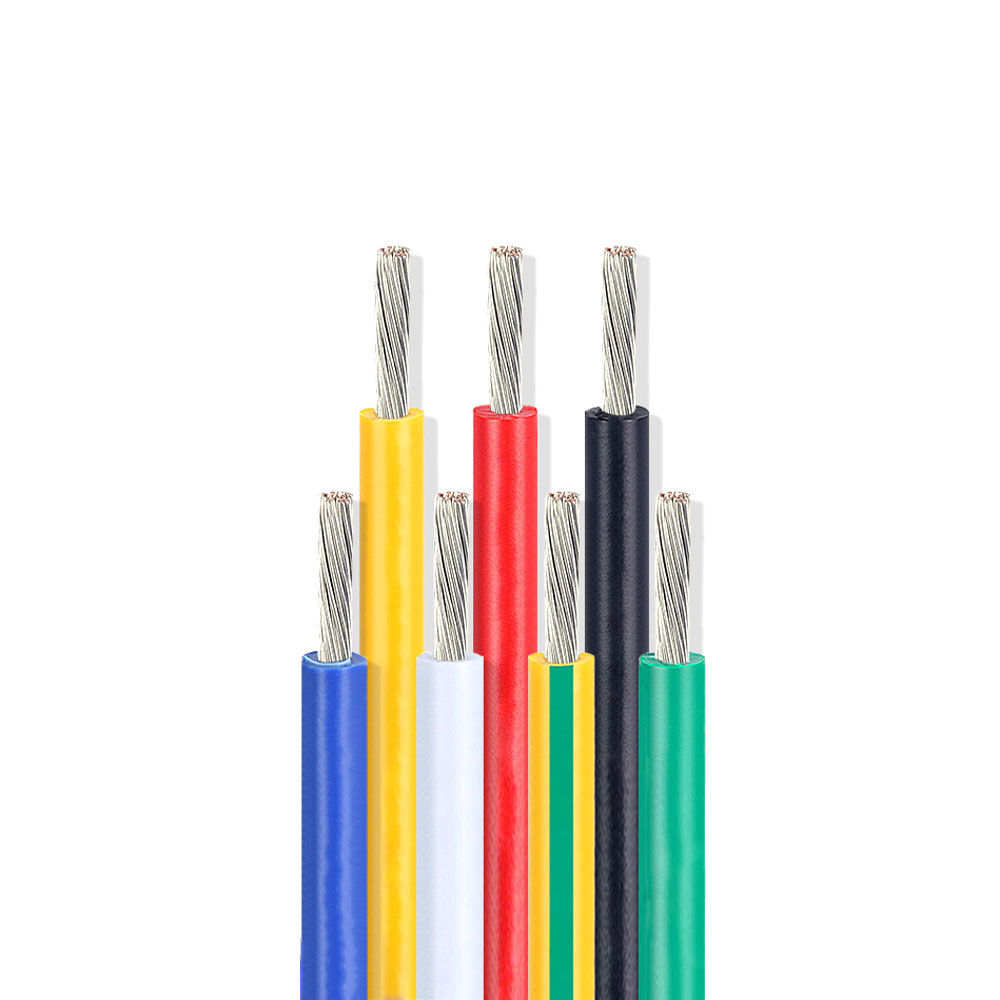

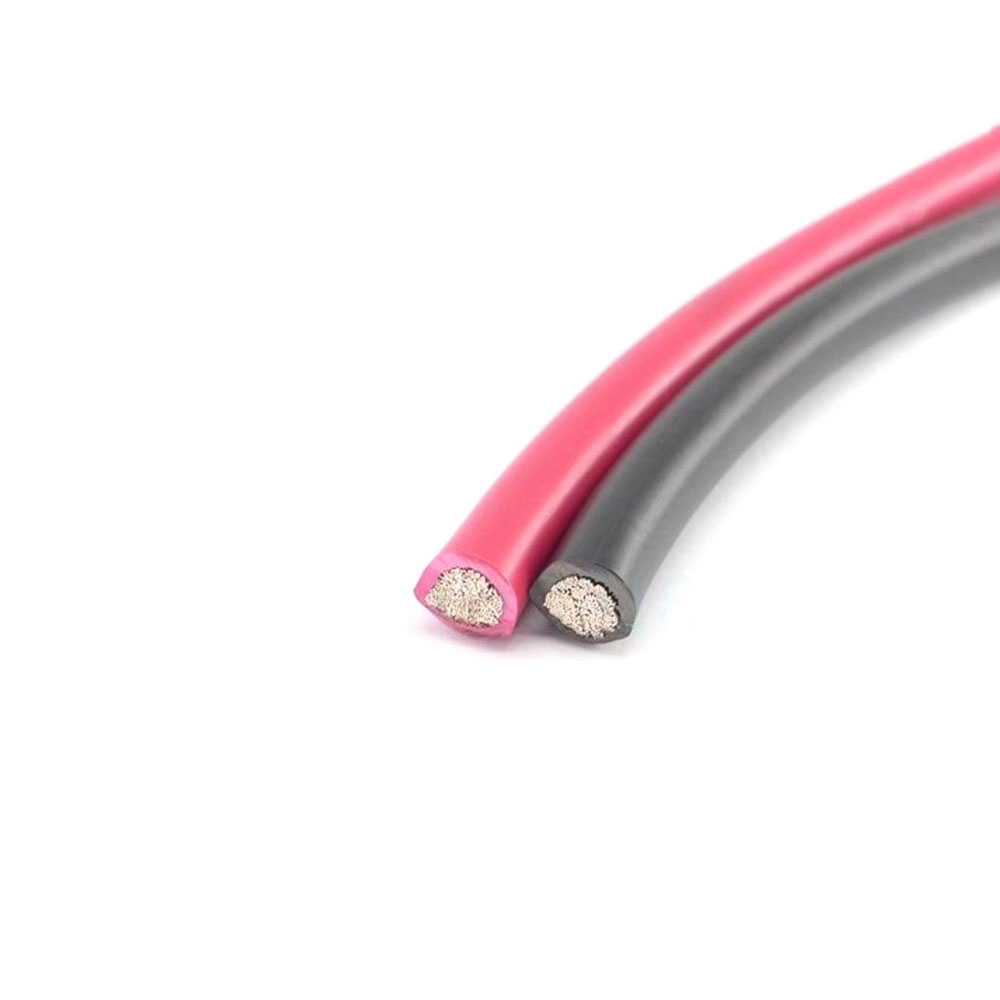

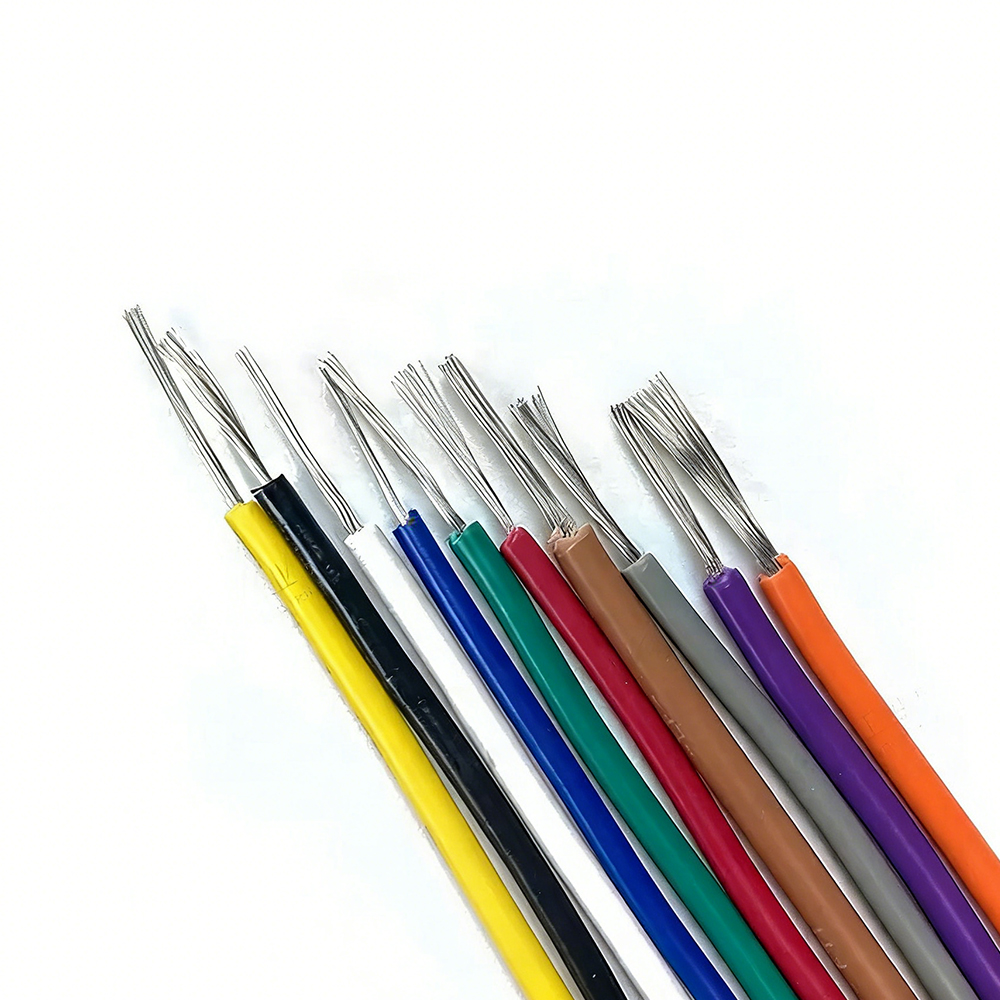

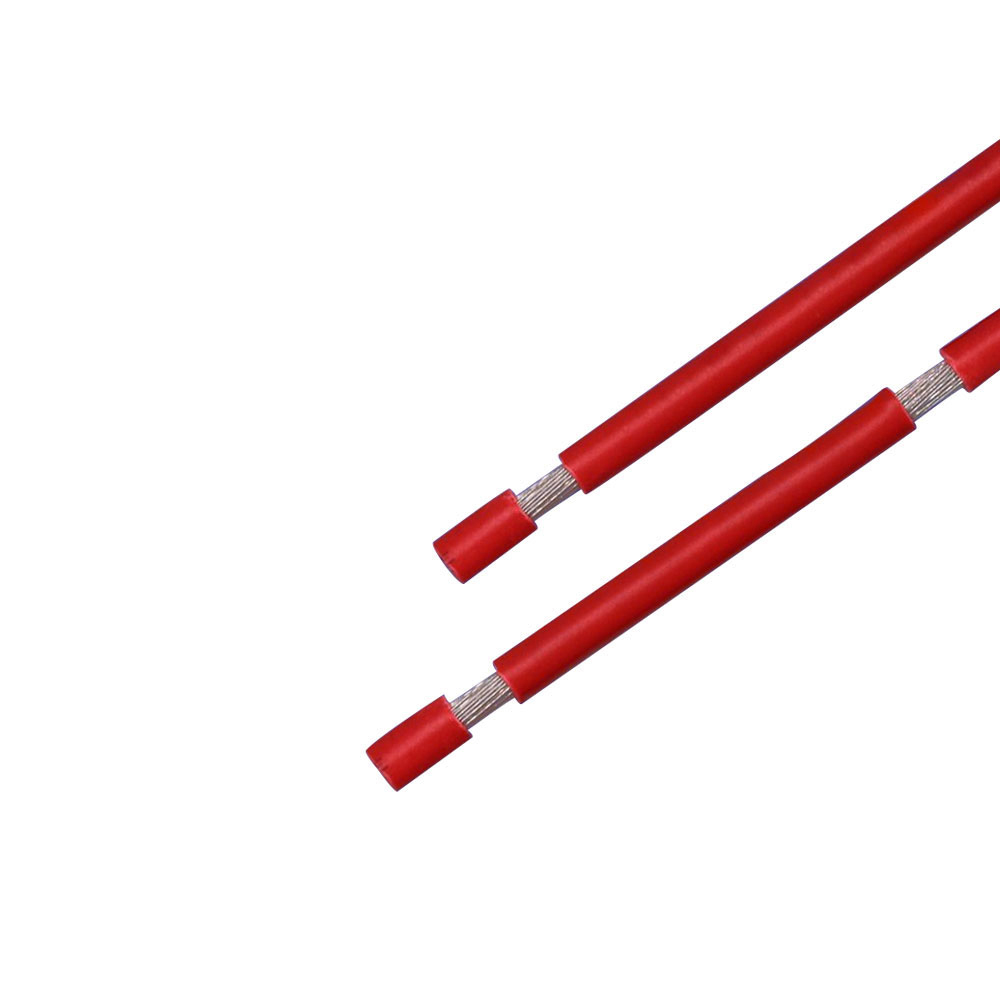

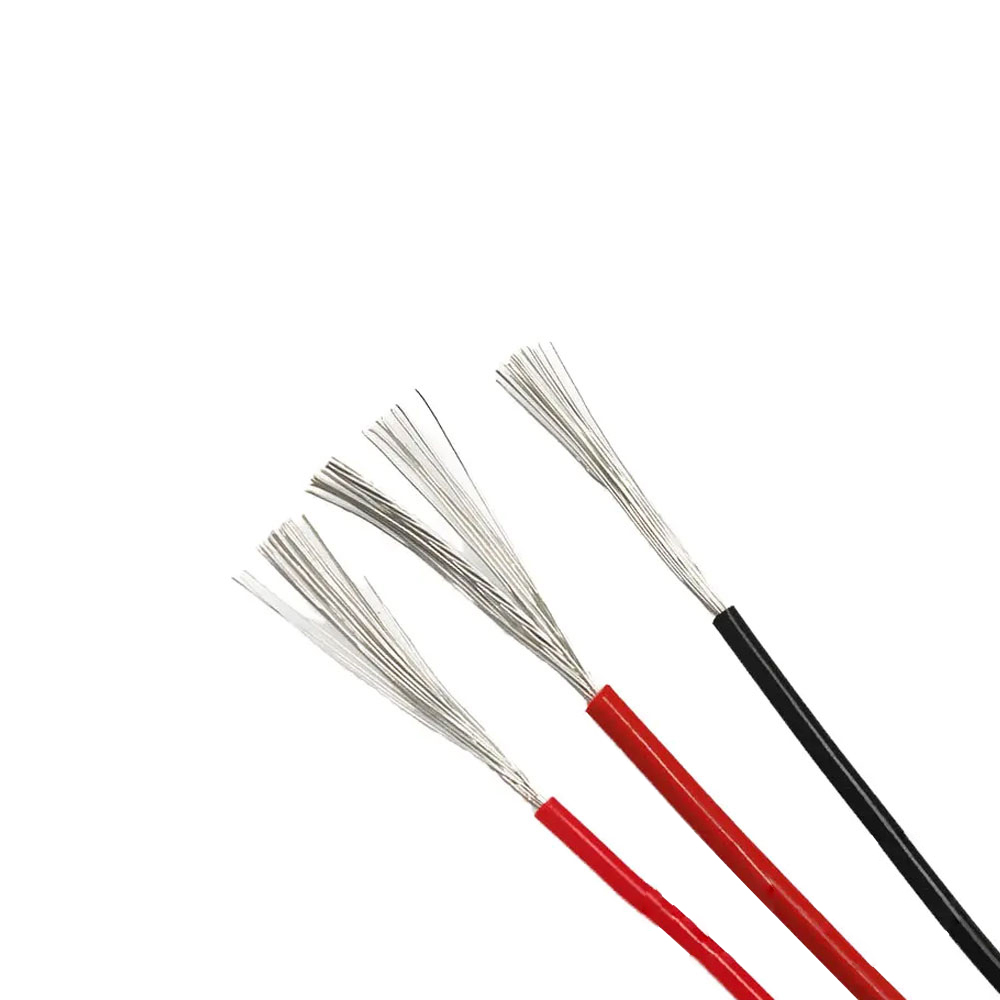

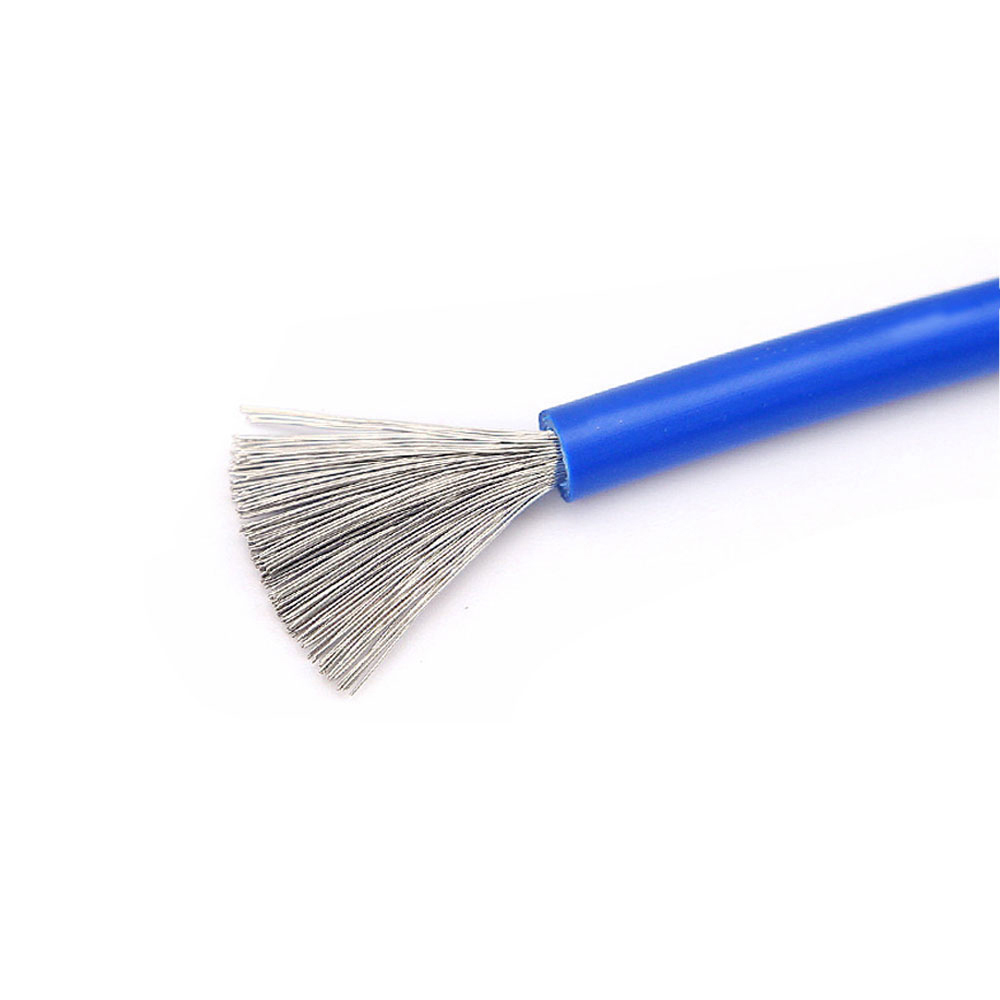

UL1015 High pressure resistance UL-Certified Cable

UL1015 Wire Advantages
High Voltage and Temperature Resistance: 600V voltage rating and 105°C temperature resistance, suitable for higher-demand electrical environments
Dual U.S.-Canada Certification: Simultaneously passes UL (U.S.) and cUL (Canada) certification, allowing access to the North American market
Enhanced Insulation Performance: Thicker PVC insulation provides better electrical isolation and mechanical protection
Reliable Flame Retardant Safety: Passes VW-1 vertical flame test, meeting North American safety standards
Standardized Color Identification: Provides standard color codes for easy installation, identification, and maintenance management

UL1015 Wire Selling Points
Standard Wire for North American Industrial Equipment: Widely used in high-demand applications such as industrial control cabinets and motor leads in the U.S. and Canadian markets
Dual Certification for Unhindered North American Access: UL + cUL certification supports direct entry into the U.S. and Canadian markets
Plug-and-Play Industrial-Grade Cable: Compatible with North American industrial terminals and connectors, meeting NEC and other electrical codes
Cost-Effective Industrial Connection Solution: Provides reliable and economical internal wiring for industrial equipment exported to North America
Complete Specifications and Stable Supply: Common AWG sizes (20–8 AWG) are well-stocked to support project requirements

UL1015 Wire Application Scope
Wiring for Industrial Control Cabinets: Power and control circuits inside PLC cabinets and frequency converter cabinets in the U.S. and Canadian markets
Motor and Equipment Leads: Power supply leads for industrial motors, pumps, fans, and other equipment
Internal Connections for Electrical Equipment: Connection lines below 600V inside UPS systems, transformers, and distribution boxes
Electrical Wiring for Machinery: Internal wiring for CNC machine tools, packaging machinery, conveyor lines, and other equipment
Industrial Repair and Replacement in North America: Standard replacement wires for industrial equipment repairs in the U.S. and Canada
Compliance Certifications: UL

Conductor: Annealed copper, solid or stranded (commonly in American Wire Gauge, AWG).
Common Specifications: AWG 32 to AWG 8 (corresponding cross-sectional area approximately 0.03 mm² to 8.4 mm²), offering a broader range than UL1007.
Insulation Material: Polyvinyl chloride (PVC), formulated for higher heat and voltage resistance.
Rated Voltage:** 600 Volts (this is a key distinction from UL1007).
Long-term Allowable Operating Temperature: 105°C (maximum). This is its core temperature rating, higher than UL1007's 80°C.
Minimum Operating Temperature: -40°C (maintains flexibility, superior to UL1007's -20°C).
Flame Retardant Rating: Must pass UL VW-1 (vertical flame test) or FT1 flame retardant test.
Insulation Thickness: Thicker than UL1007 of the same specification to meet the requirements of the 600V voltage rating.

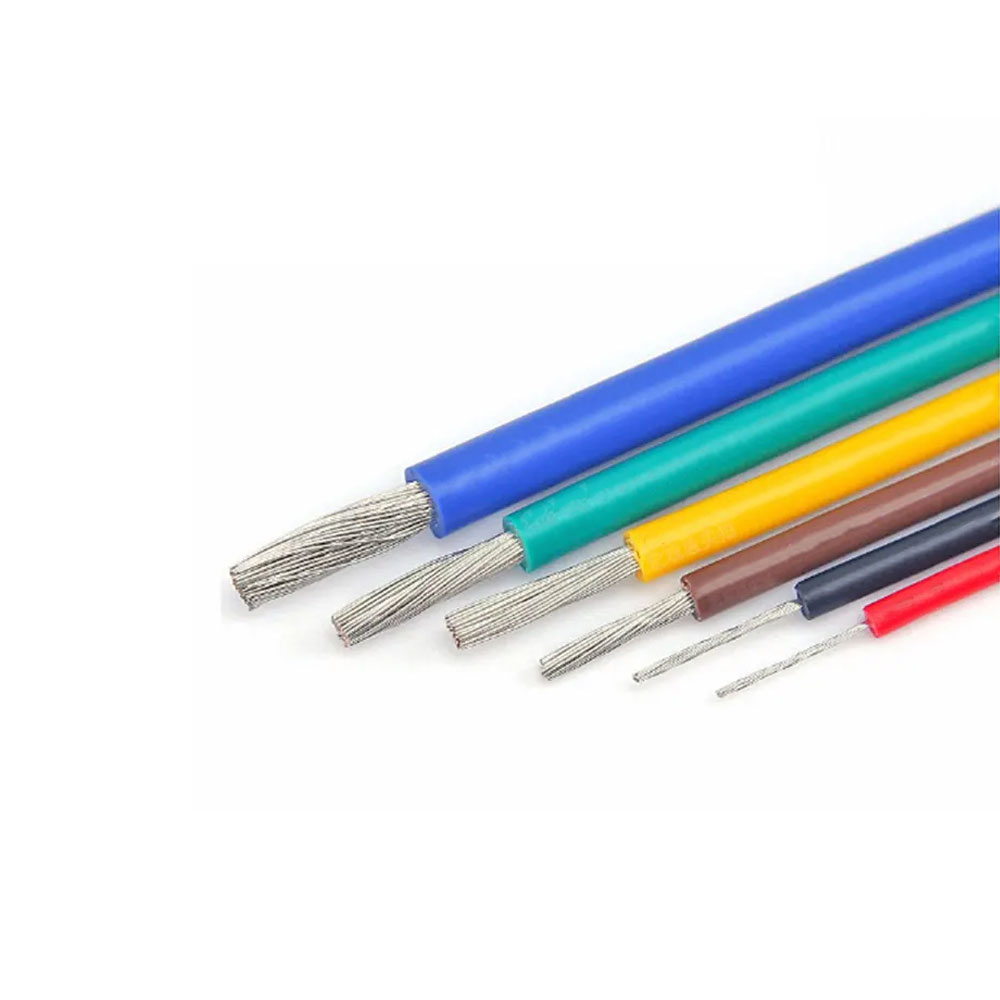

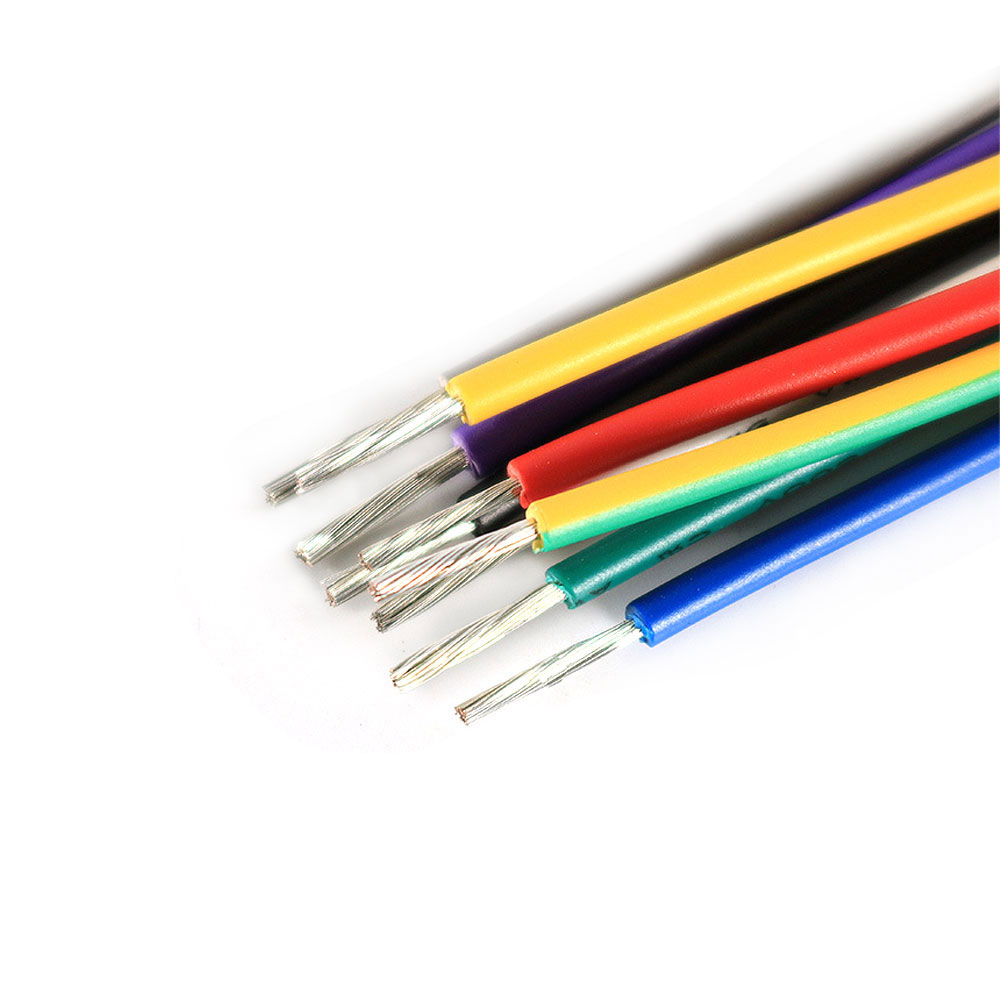

Color: Extremely diverse, with dozens of standard colors available.
