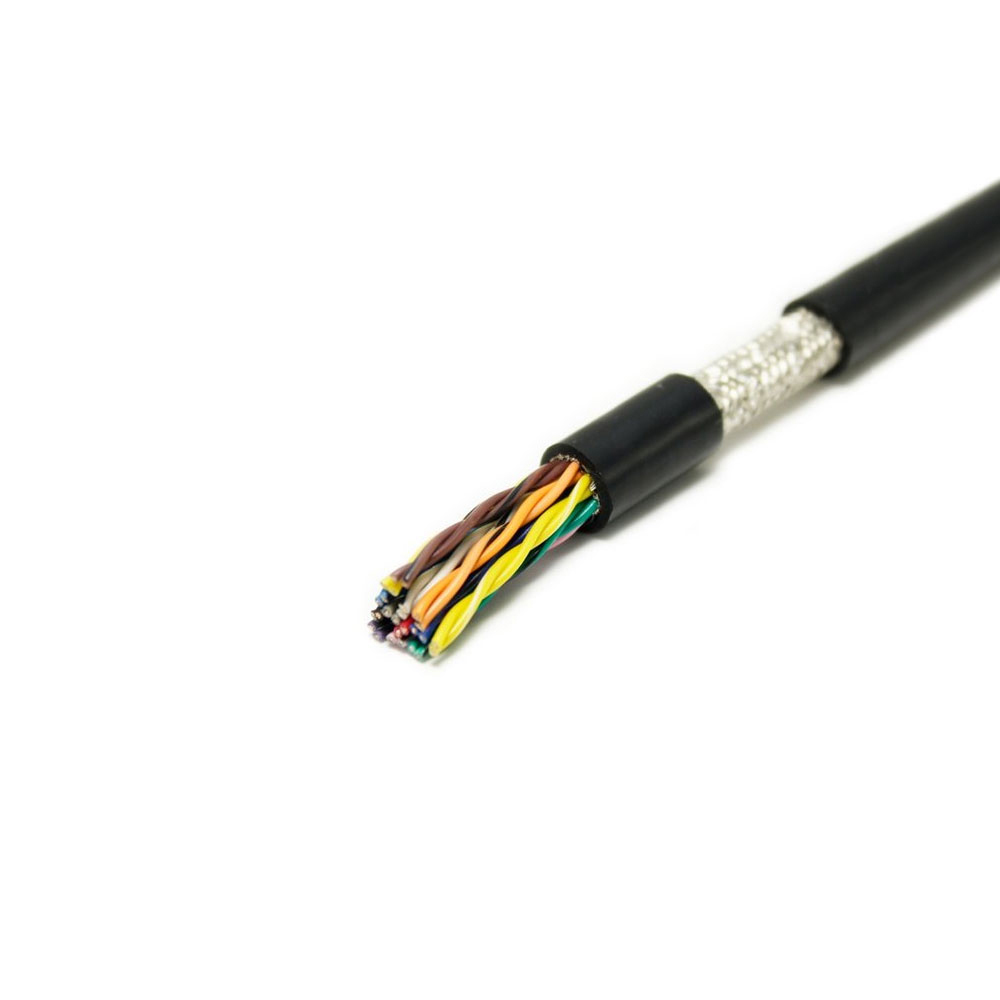

UL2517 Multiple shielding UL-Certified Cable

UL2517 Advantages
General-Purpose U.S. Standard Electronic Wire: Complies with UL 758 standard, suitable for internal connections in various electronic devices
Flexible and Easy to Wire: Fine-stranded soft conductor facilitates bending, suitable for complex internal routing
Standardized Color Identification: Offers over ten standard colors to support circuit identification and fault diagnosis
Stable Electrical Performance: Uniform insulation, reliable voltage resistance
Dual Certification for North American Access: Simultaneously passes UL and cUL certification, allowing sales in the U.S. and Canadian markets

UL2517 Selling Points
Basic Wire for the North American Electronics Industry: Widely used for internal jumpers in consumer electronics and small household appliances in the U.S. and Canadian markets
UL-Certified Standard Wire: Complies with UL 758 AWM standard, supporting rapid product certification for customers
Plug-and-Play Low-Cost Solution: Compatible with U.S. standard terminals and connectors, requiring no additional compatibility processing
Economical Internal Connection Solution: Provides the most cost-effective internal wiring for electronic products exported to North America
Stable Supply and Complete Specifications: Common AWG sizes (30–18 AWG) are well-stocked, supporting JIT delivery

UL2517 Application Scope
Internal Jumpers for Consumer Electronics: Circuit board connections inside TVs, audio systems, and gaming consoles in the U.S. and Canadian markets
Control Circuits for Small Household Appliances: Internal control board wiring for appliances such as coffee makers, toasters, and blenders
Internal Wiring for Office Equipment: Low-voltage connections inside printers, scanners, and computer power supplies
Auxiliary Circuits for Automotive Electronics: Internal wiring for car chargers, navigation devices, and dash cams
Repair and Replacement for North American Electronics: Standard replacement wires for electronic device repairs in the U.S. and Canada
Compliance Certifications: UL

Conductor: Tinned annealed copper, fine-stranded structure.
Key Wire Pairs: Consistent with UL2501, including:
1. USB 2.0 differential pair (D+/D-)
2. USB 3.0 SuperSpeed TX differential pair (SSTX+/SSTX-)
3. USB 3.0 SuperSpeed RX differential pair (SSRX+/SSRX-)
4. Power line (VBUS) and ground line (GND)
Insulation Material: High-density polyethylene or foamed polyethylene, used to achieve 90Ω differential impedance.
Wire Pair Structure: Four differential pairs, identical in structure to UL2501, employing layered independent shielding.
Shielding Structure: Multi-layer shielding:
• Each SuperSpeed differential pair has independent aluminum foil shielding.
• Overall braided copper mesh shielding (typically ≥65% coverage).
Sheath: Polyvinyl chloride (PVC) or flame-retardant polyolefin.
Characteristic Impedance: Differential impedance: 90Ω ±15% (for SuperSpeed pairs).
Rated Voltage:30V DC (VBUS power line).
Long-term Operating Temperature:** 60°C to 80°C.
Data Transfer Rate: USB 3.0: 5 Gbps (SuperSpeed); USB 2.0: 480 Mbps.
Maximum Length: Recommended ≤3 meters.
DC Resistance: Strict requirements for VBUS and GND conductors to ensure power delivery capability (900mA @ 5V).
