Mining Communication Cable Comprehensive Introduction
I. Definition and Core Characteristics
Mining communication cables are specially designed and manufactured communication cables for transmitting telephone, monitoring, control, and data signals in underground environments of coal mines, metal mines, and non-metallic mines. They serve as the "neural network" for mine safety production, dispatch command, and automation systems, and must ensure absolute reliability and uninterrupted communication in extremely harsh and highly hazardous environments. Their design complies with strict mine safety regulations, with core requirements focusing on explosion-proof safety, mechanical protection, and signal reliability.
Core Characteristics:
Intrinsically Safe Explosion-Proof Design: Strictly adheres to the requirements of the Mining Product Safety Certification (MA), utilizing special structures to prevent electrical sparks from cable faults that could trigger gas or coal dust explosions.
High-Strength Mechanical Protection: Possesses exceptional resistance to crushing, impact, tearing, and dragging, capable of withstanding severe mechanical damage such as falling rocks, mine vehicle crushing, and equipment collisions underground.
Flame Retardant and Low-Smoke Halogen-Free: Cable materials exhibit extremely high flame retardancy, producing low smoke and no toxic halogen acid gases during combustion, creating conditions for underground personnel evacuation.
Excellent Moisture and Corrosion Resistance: Employs a fully sealed structure to prevent degradation of insulation or short circuits caused by underground water leakage, humidity, and corrosive gases.
Strong Anti-Interference Capability: Effective shielding design ensures clear and stable signal transmission in underground environments with strong electromagnetic interference.
II. Main Types and Application Scenarios
Primarily classified into two types based on structure:
Armored Communication Cables: Equipped with a metal (e.g., galvanized steel wire, steel tape) armor layer, providing the strongest mechanical protection.

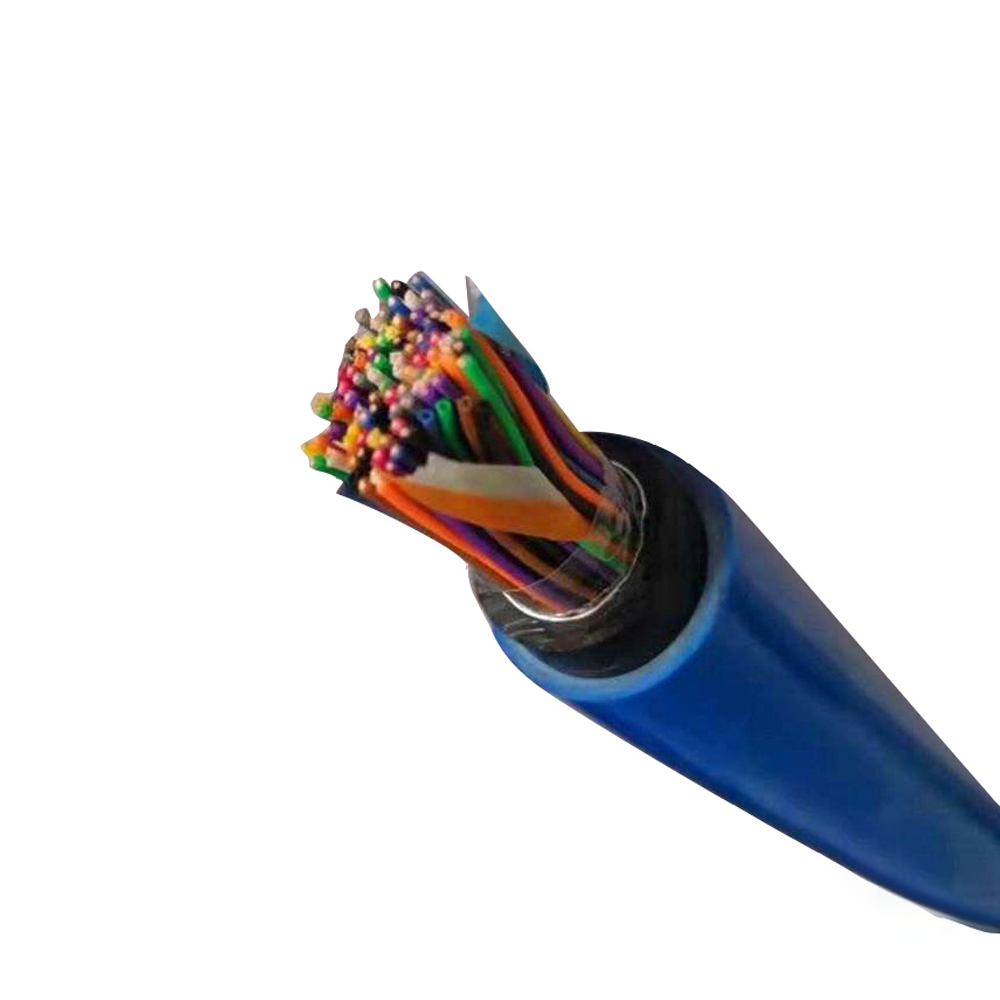

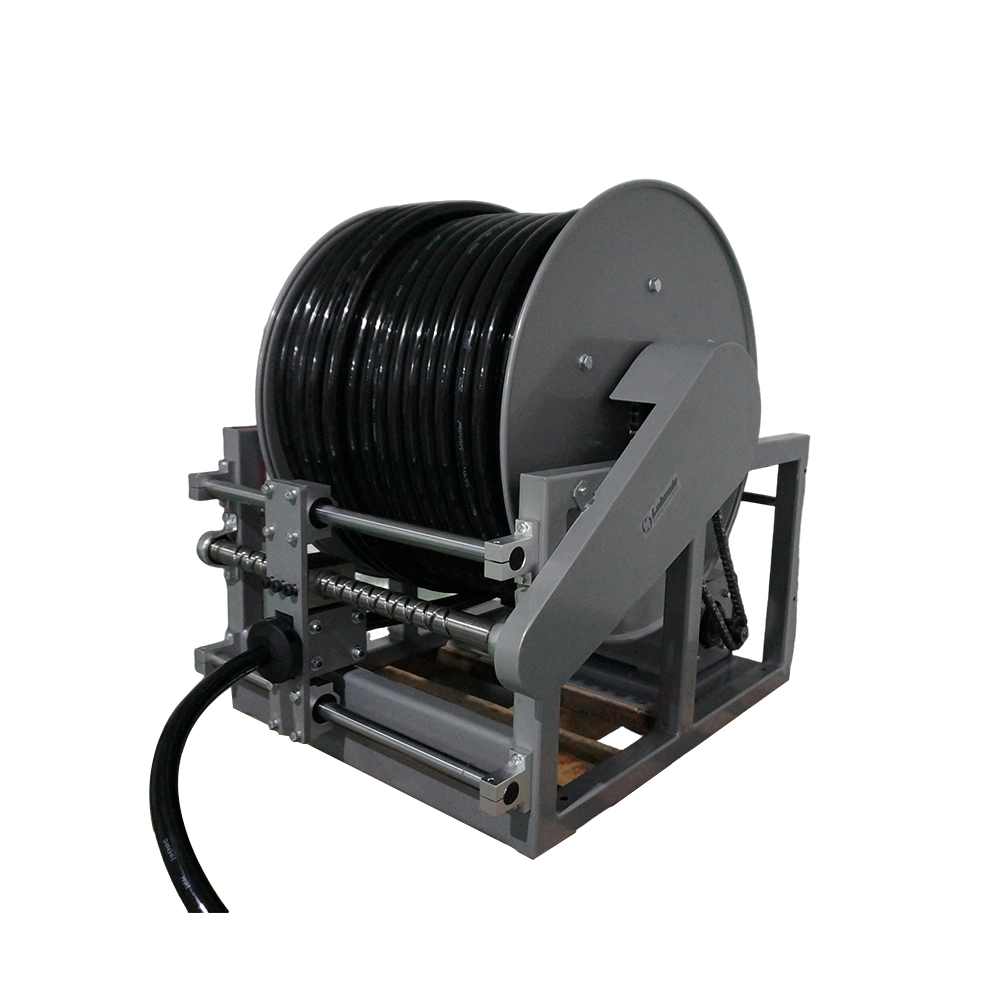

Model Examples: MHYV (mining polyethylene-insulated polyvinyl chloride-sheathed communication cable), MHYAV (with aluminum-plastic composite tape shielding).
Applications: Used for fixed or semi-fixed installations in main transport roadways, fully mechanized mining faces, and other areas with high mechanical damage risks.
Lightweight (Non-Armored) Communication Cables: Lighter weight and better flexibility, but with relatively lower mechanical protection levels.

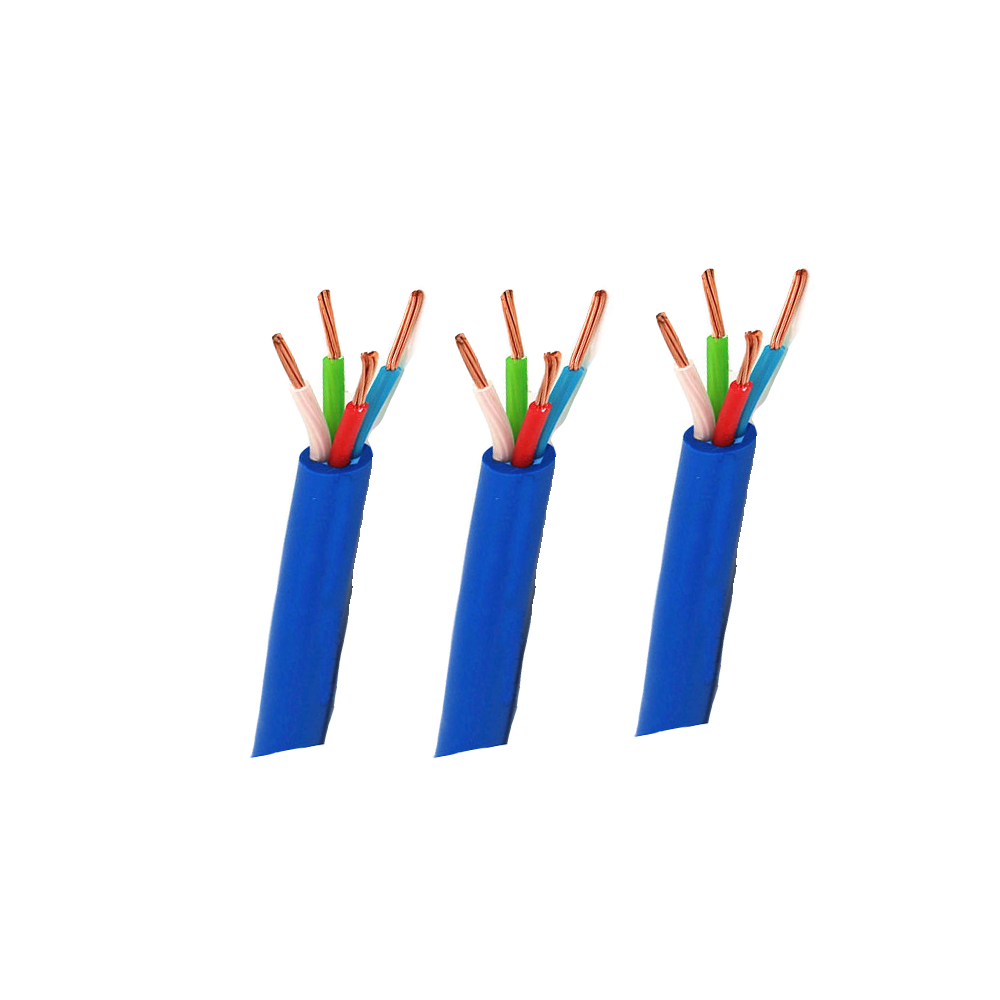

Model Examples: MHYVR (mining polyethylene-insulated polyvinyl chloride-sheathed flexible communication cable).
Applications: Used for connections to moving parts of equipment, underground telephone handset cords, and other scenarios requiring flexibility.
Main Application Systems:
Mine Dispatch Communication System: Connects explosion-proof telephones at various underground work sites to the surface dispatch console.
Safety Monitoring System: Transmits data from sensors (e.g., gas, carbon monoxide, wind speed) to the surface monitoring center.
Personnel Positioning System: Serves as the signal transmission channel for radio frequency identification (RFID) base stations and readers.
Industrial Television System: Transmits video surveillance signals from critical underground areas.
Automation Control System: Provides control signal channels for centralized belt control, automated pump drainage, and other systems.
III. Key Production Process Controls
Conductor: Uses high-purity annealed copper wires to ensure conductivity. Conductor surfaces are often tin-plated to prevent oxidation and corrosion.
Insulation: Employs high-density polyethylene or environmentally friendly low-smoke halogen-free polyolefin materials, with uniform extrusion thickness and high insulation resistance.
Pair Twisting and Cabling: Communication pairs require precise twisting to suppress interference. For multi-pair cables, the pairs are tightly arranged during cabling, with gaps filled with water-blocking materials.
Shielding: Utilizes a composite shielding structure, such as aluminum-plastic composite tape wrapping (100% coverage) combined with tin-plated copper wire braiding (coverage ≥80%), effectively isolating internal and external electromagnetic interference.
Sheathing and Armoring:
Inner Sheath: A layer of adhesive sheath is extruded to secure the cable core and enhance protection.
Armor Layer (if applicable): Galvanized steel wire or steel tape is tightly wrapped to provide core tensile and compressive protection.
Outer Sheath: Extruded from highly wear-resistant, flame-retardant, and anti-static polyvinyl chloride or polyurethane materials, typically in black or orange.
IV. Detailed Core Advantages
Safety and Reliability as a Lifeline: Complies with mandatory national MA certification, eliminating safety incidents caused by cables at the source, and serves as a mandatory prerequisite for mine safety production permits.
Exceptional Mechanical and Environmental Durability: Unique reinforced structural design enables long-term resistance to the complex physical and chemical challenges of underground environments, with failure rates far lower than those of ordinary cables, ensuring uninterrupted operation of communication systems.
Stable and Clear Signal Transmission: Optimized shielding and insulation systems ensure minimal attenuation and low error rates for voice, data, and monitoring signals transmitted over long distances in underground roadways with strong interference, supporting the reliable operation of various critical systems.
Low Maintenance Costs and Long Service Life: Robust and durable designs significantly reduce the frequency of repairs and replacements due to environmental damage. Although initial investment is higher, the total lifecycle cost is advantageous.
Standardization and Easy Identification: Strict adherence to MT/T standards ensures uniform specifications and models, with clear sheath markings facilitating rapid identification, installation, and maintenance underground.
Summary
Mining communication cables are an indispensable critical infrastructure in the mine safety production assurance system. Their value far exceeds that of ordinary communication products, as they are comprehensive safety equipment integrating electrical performance, mechanical strength, materials science, and safety regulations.
