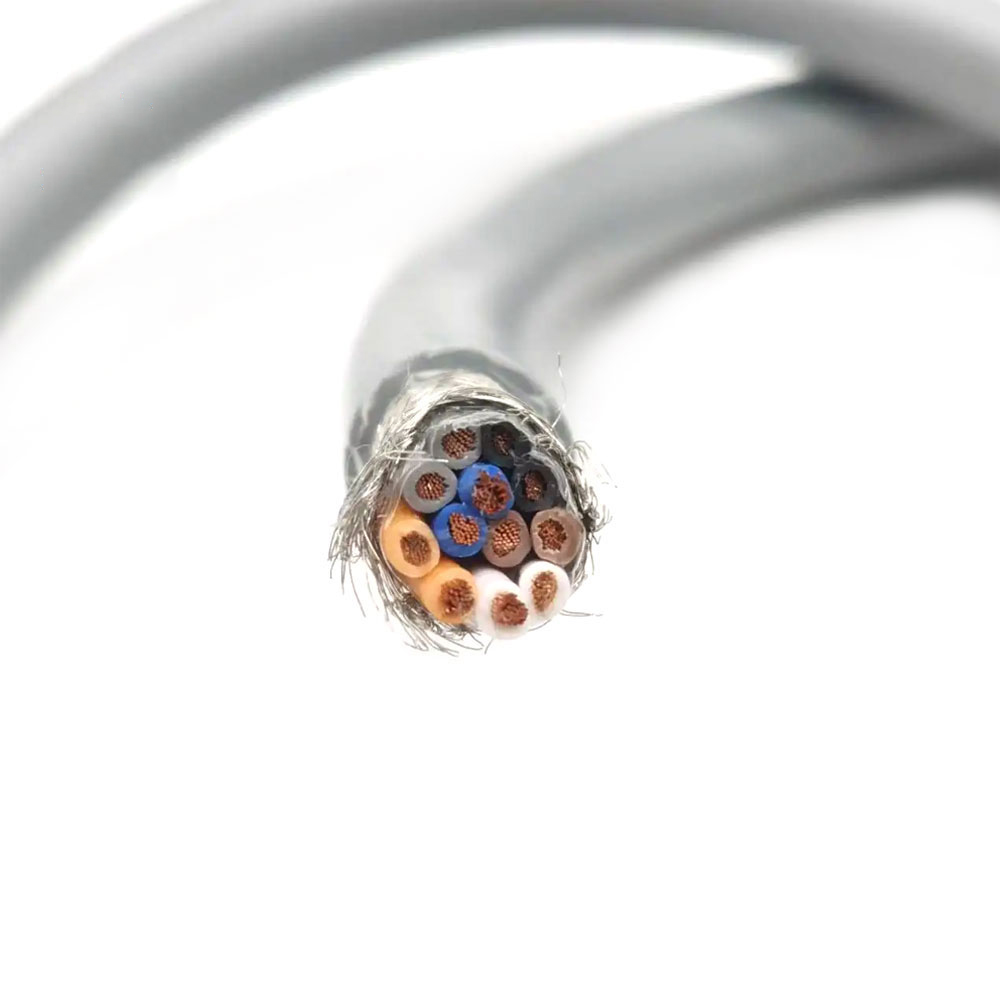

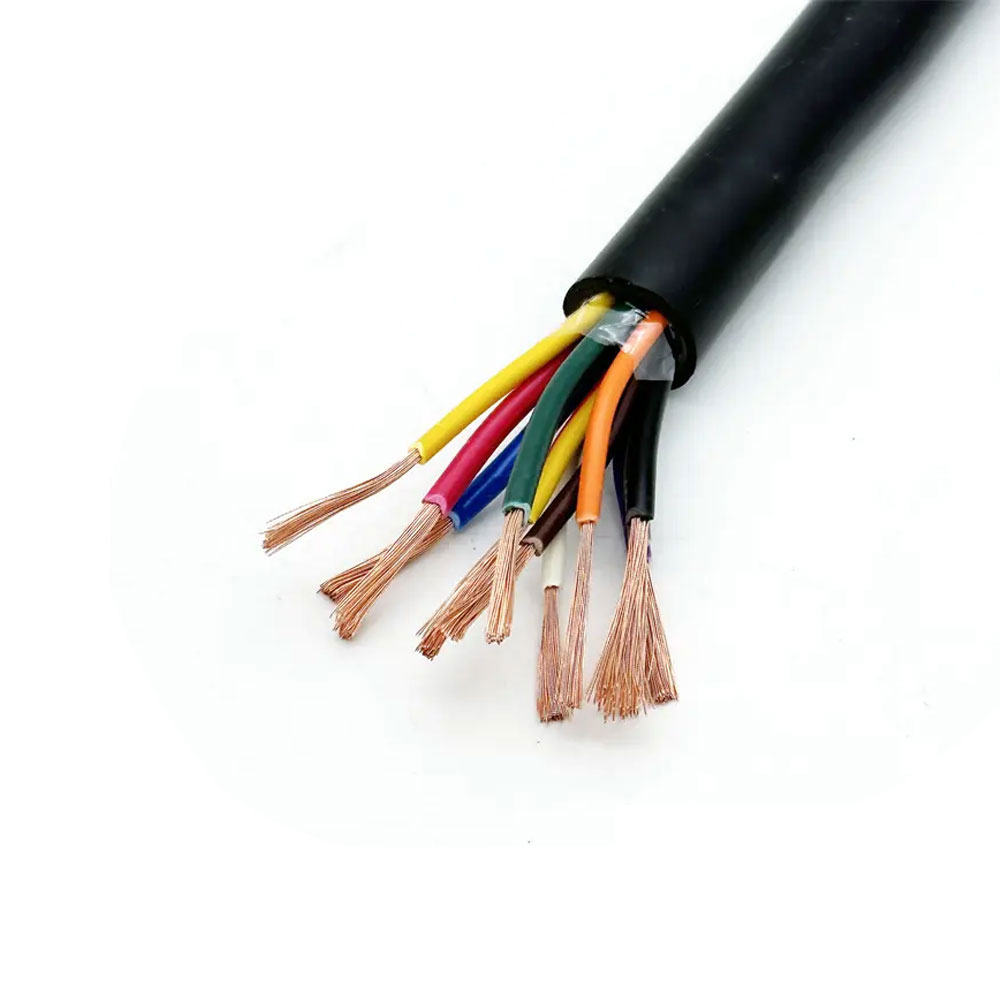

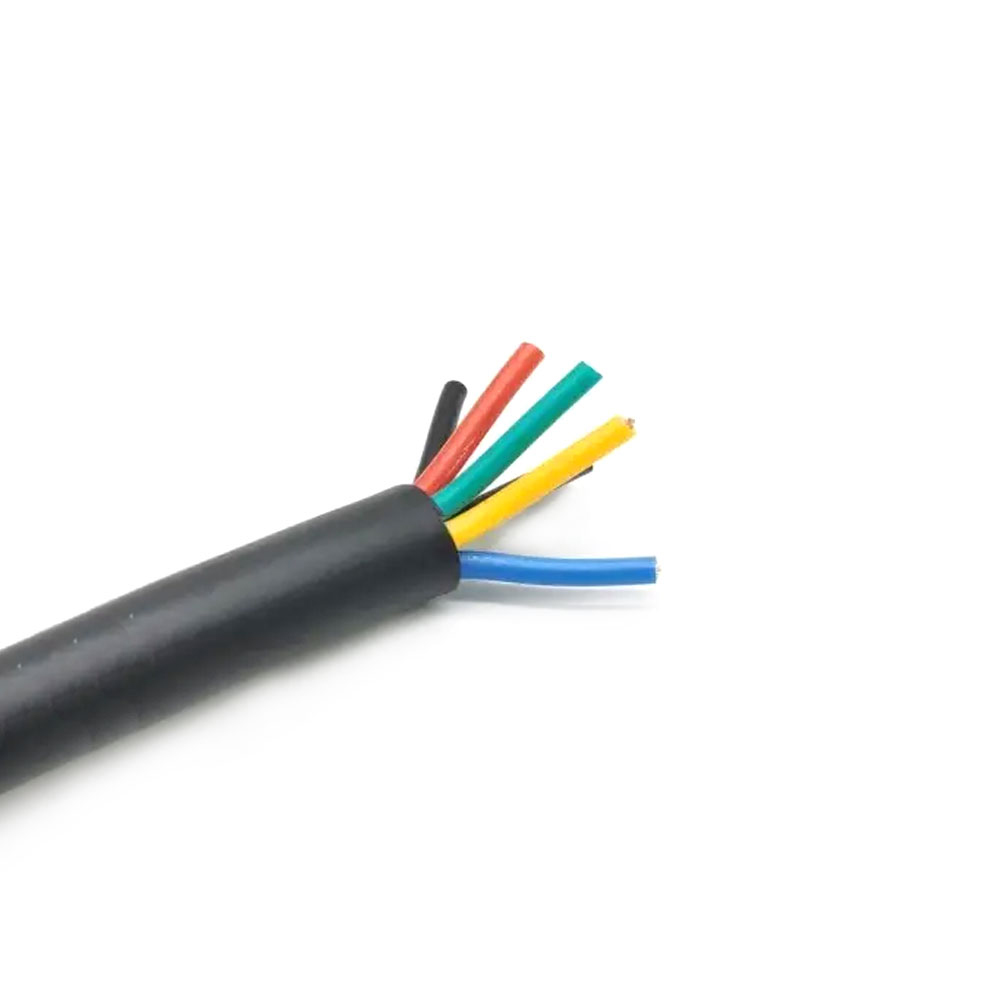

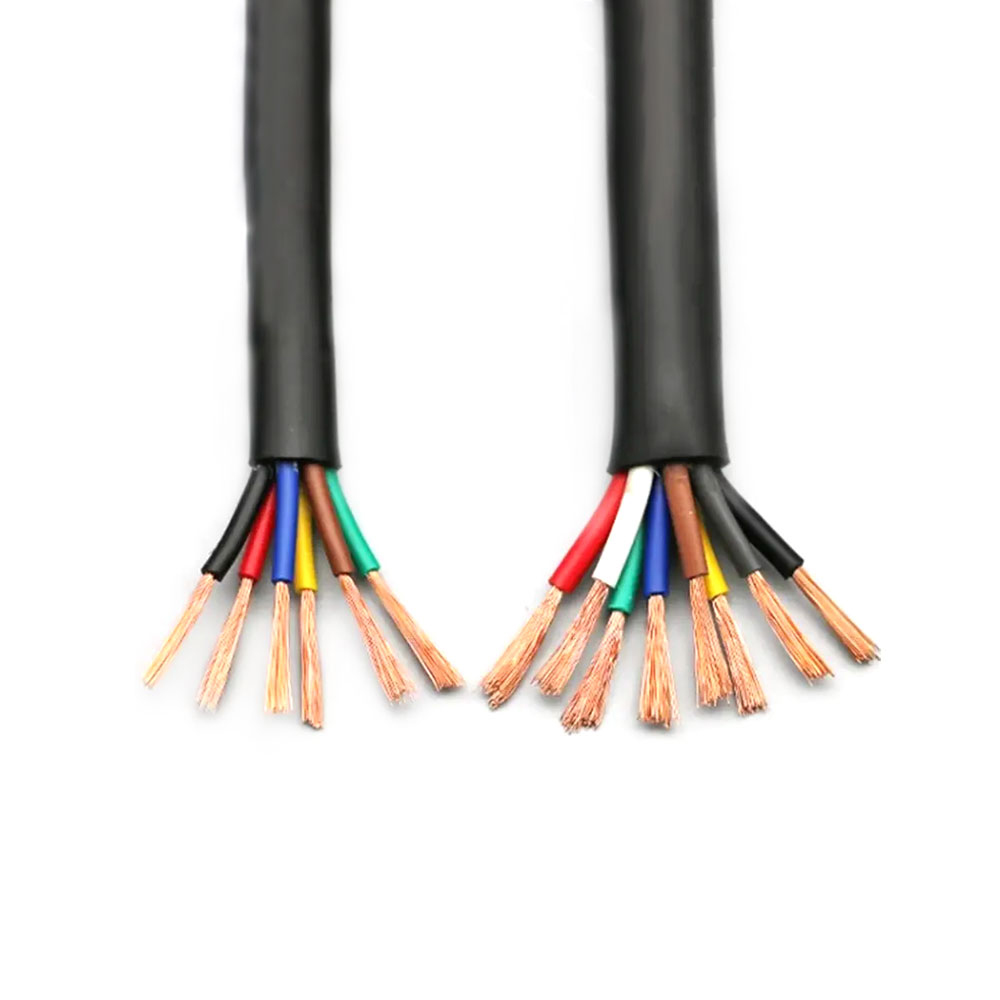

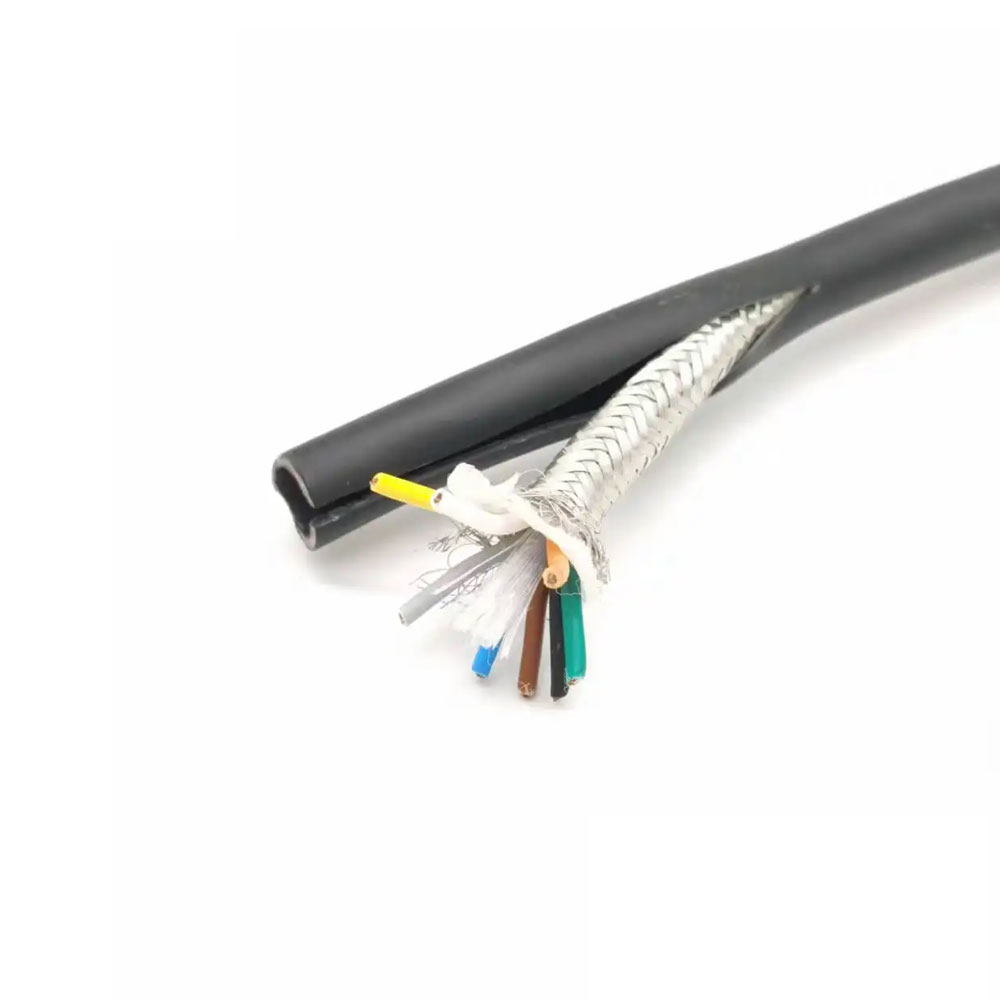

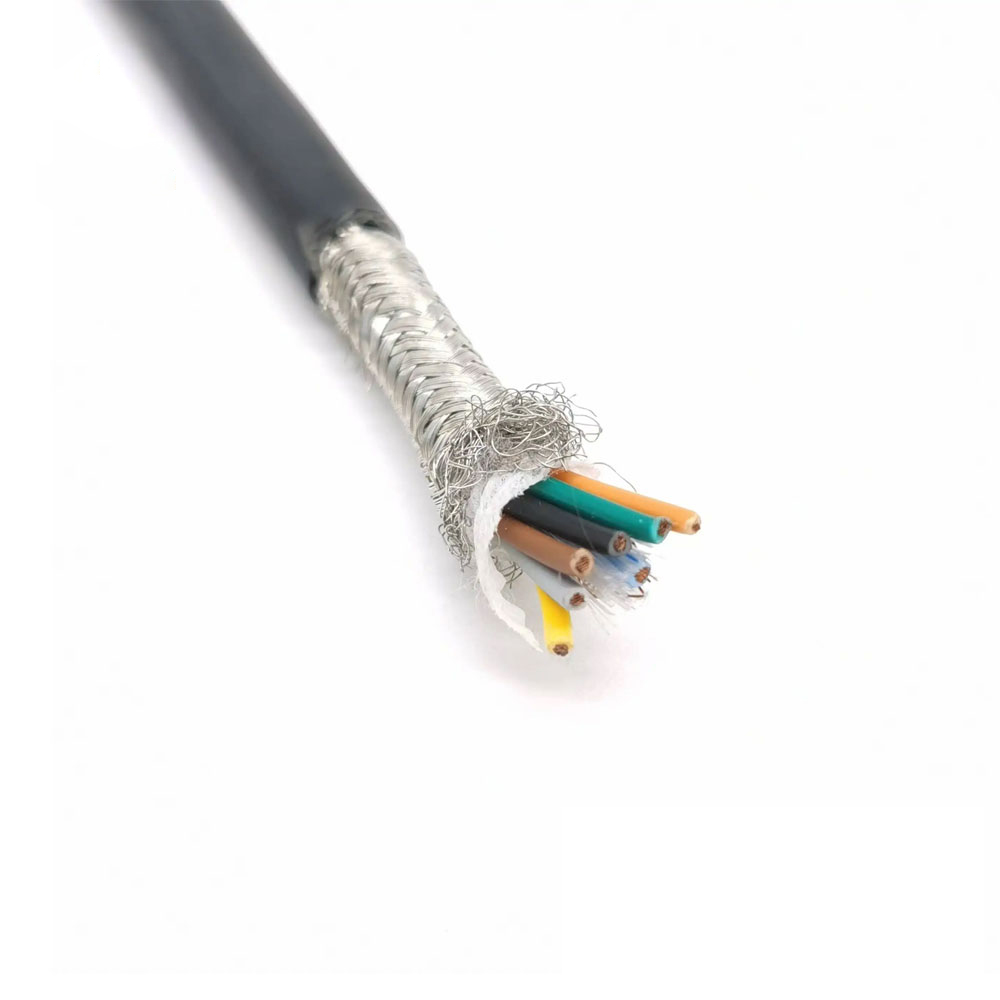

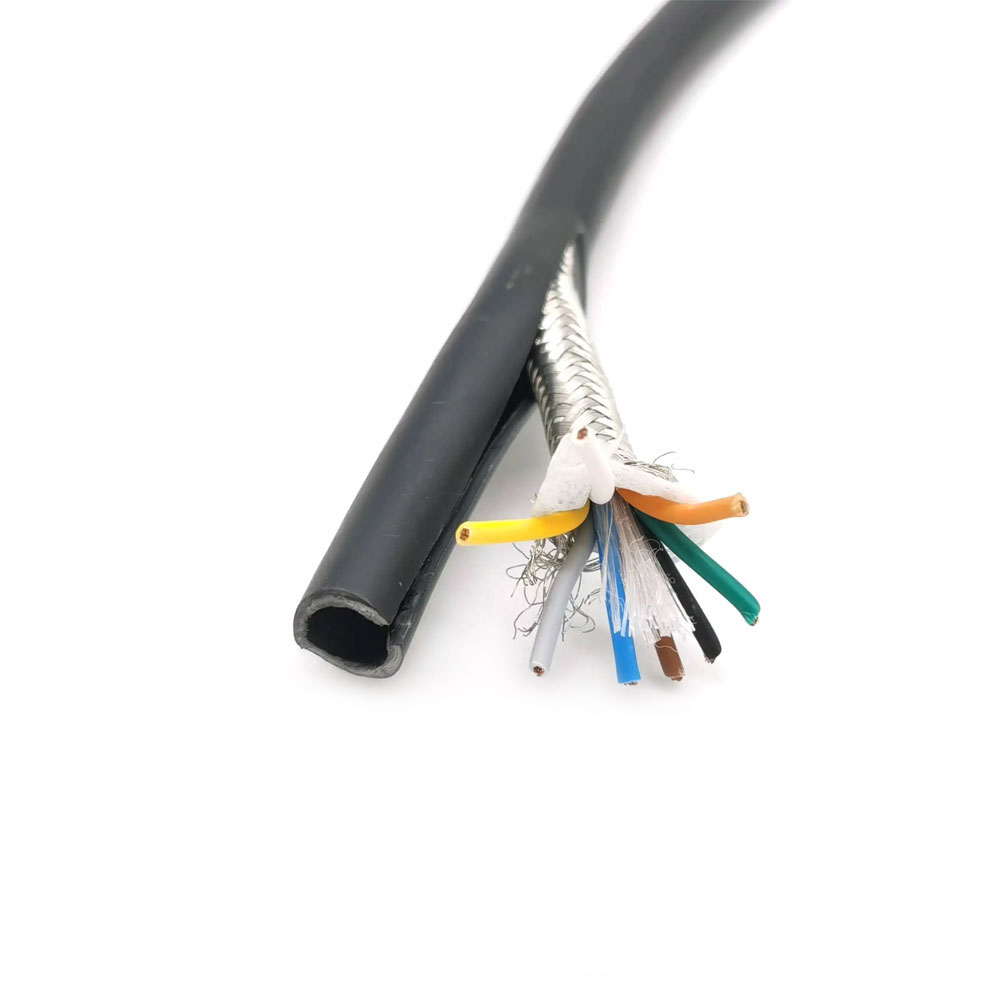

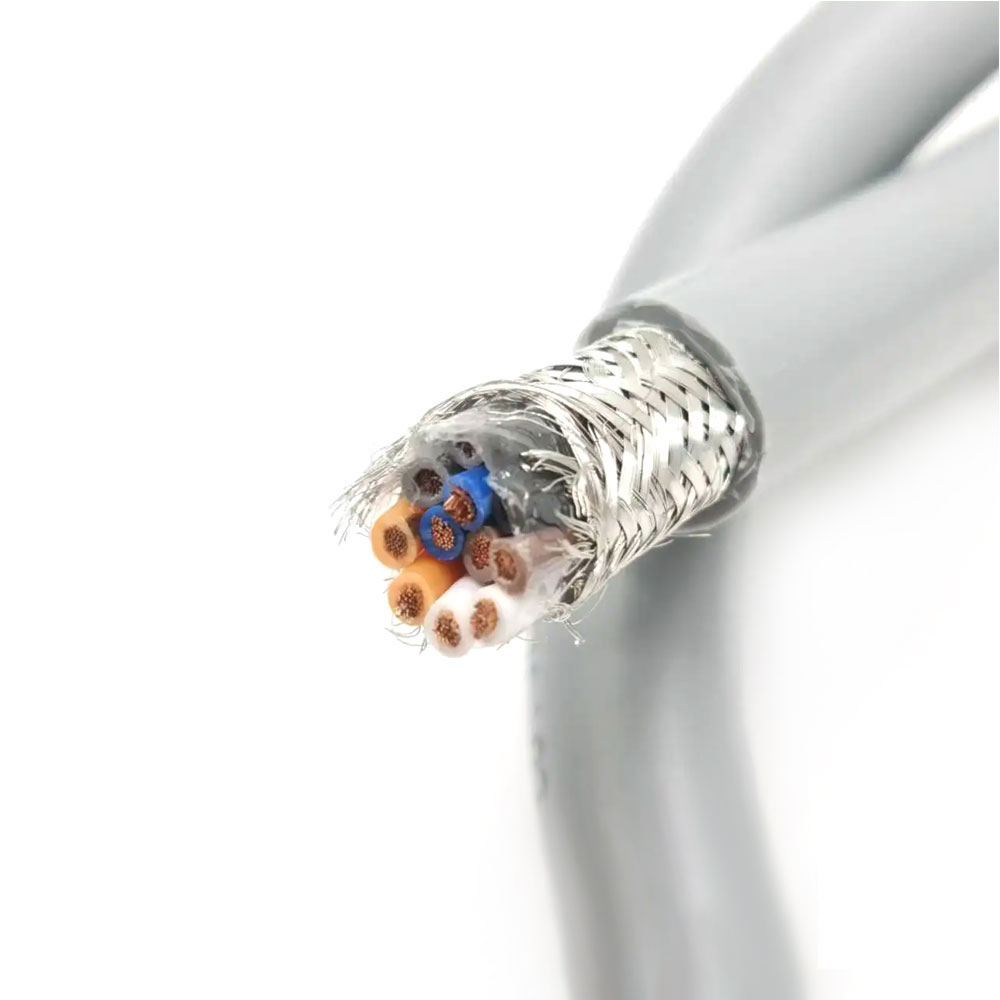

UL20886 Excellent electrical performance UL-Certified Cable

UL20886 Advantages
High-Performance Composite Structure: XLPO insulation resists high-temperature aging, TPU sheathing is oil-resistant, wear-resistant, and tear-resistant
High Temperature and Corrosion Resistance: 125°C long-term operating temperature, tin-plated conductor enhances corrosion resistance
Balances Flexibility and Durability: TPU sheathing maintains flexibility while providing excellent mechanical protection
Exceptional Electrical Performance: XLPO insulation has high dielectric strength, suitable for medium- to high-voltage signal transmission
Dual U.S.-Canada Certification: Simultaneously passes UL and cUL certification, allowing free circulation in the North American market

UL20886 Selling Points
Oil- and Wear-Resistant Specialty Wire for North America: Specifically designed for high-wear applications in construction machinery, robotics, etc., in the U.S. and Canadian markets
Dual-Certified Composite Cable: UL + cUL certification supports entry into North American high-end industrial supply chains
Plug-and-Play Wear-Resistant Solution: TPU sheathing is oil- and wear-resistant, compatible with dynamic connection points in industrial equipment
High-Reliability Choice for Dynamic Use: Tin-plated conductor prevents oxidation, composite structure adapts to bending and vibration environments
Flexible Customization Services: Supports conductor specifications, sheath colors, and printing customization, with controllable lead times

UL20886 Application Scope
Wiring for Construction Machinery: Oil- and wear-resistant lines near hydraulic systems in equipment such as excavators and cranes
Connections for Industrial Robots: Dynamic power supply and signal transmission for robot joints and end-effectors
Moving Parts of Automated Equipment: Power supply and communication lines for conveyor sliders and mobile platforms
Internal Wiring for Special Vehicles: Oil-resistant lines inside cabins of engineering vehicles and agricultural machinery
Industrial Repair and Replacement in North America: Specialized wires for high-wear equipment repairs in the U.S. and Canada
Compliance Certifications: UL

Conductor: Stranded copper conductor, compliant with DIN VDE 0295, IEC 60228 Class 5.
Standards Compliance: Meets UL 758 & UL 1581 and CSA C22.2 No. 210.02 standards.
Insulation: Blended heat-resistant, flame-retardant, environmentally friendly PVC insulation.

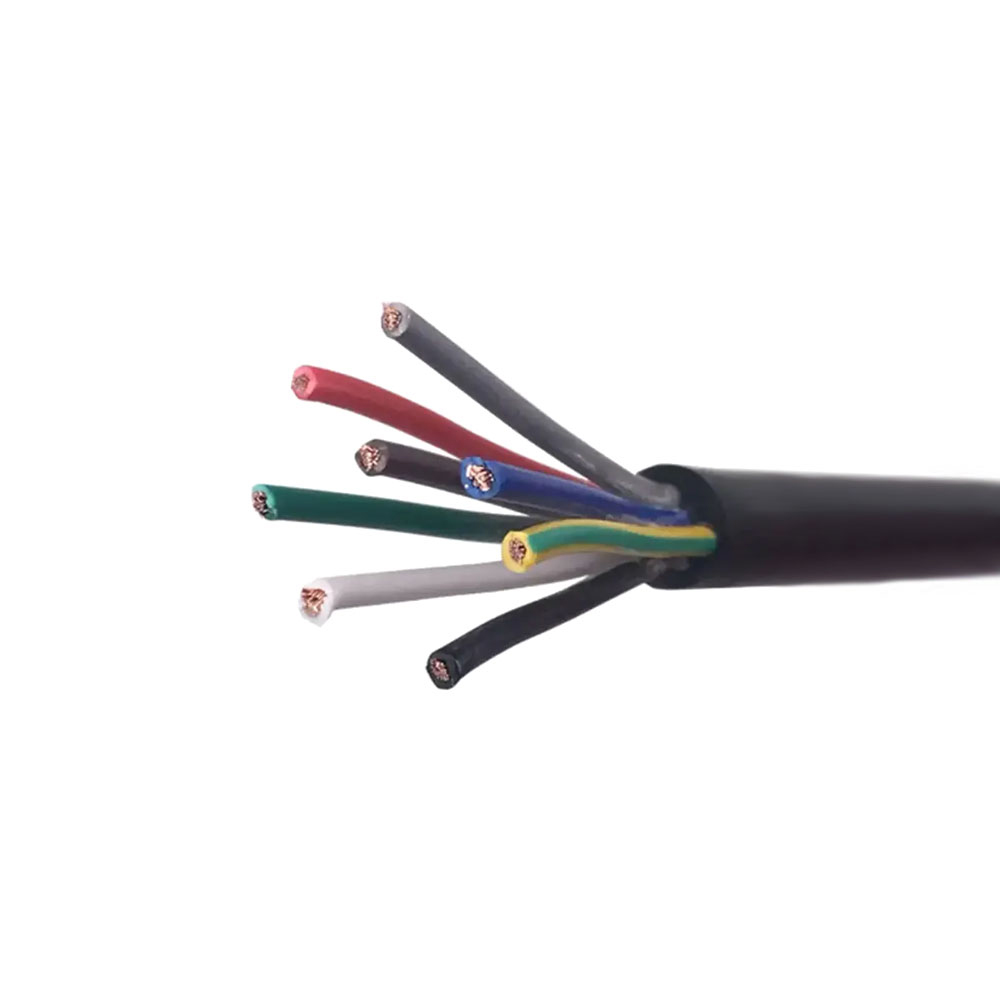

Ground Conductor Identification:
G: With green/yellow dual-color ground identification.
Without green/yellow dual-color ground identification.

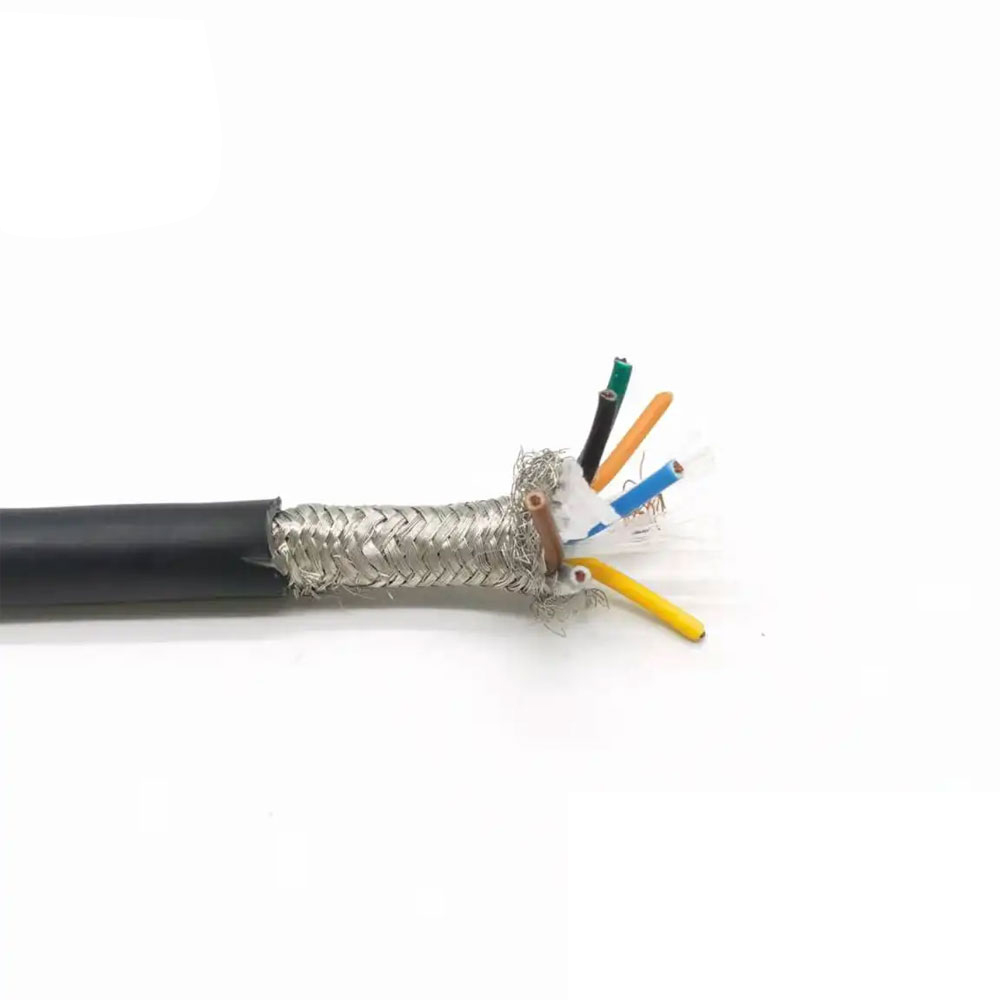

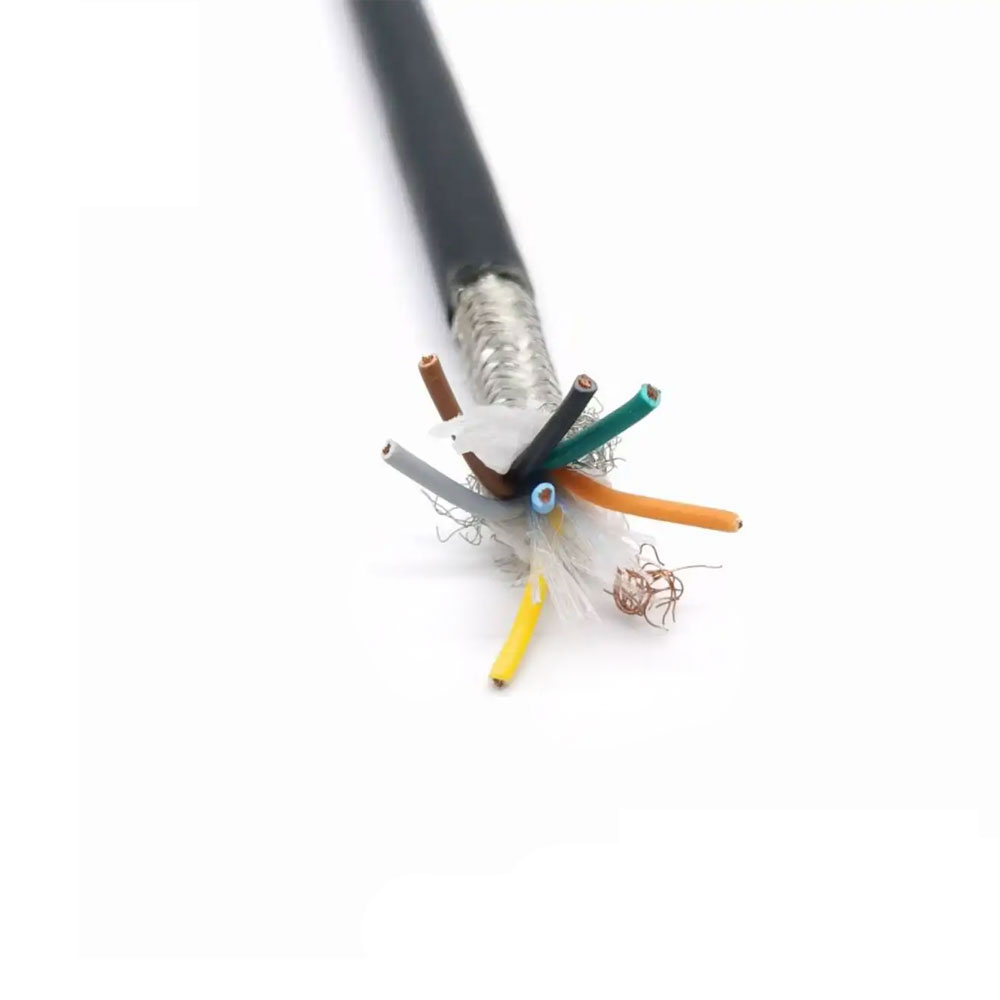

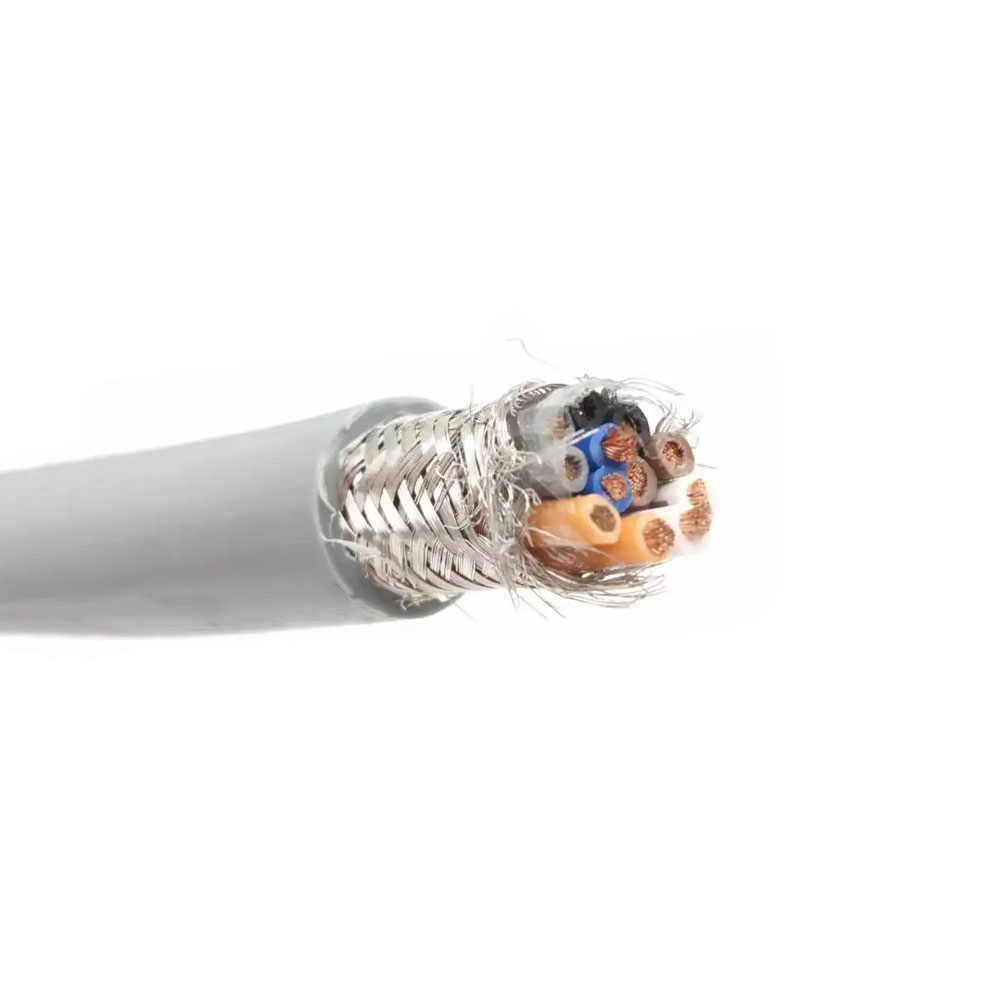

Braiding: Bare copper or tinned copper mesh braiding. Optional (density > 80%).
Sheath: Blended 90°C heat-resistant, flame-retardant PVC, passing the VW-1 flame-retardant test standard.
Black or gray (customizable upon request).
Technical Parameters
Temperature Range:
- Mobile installation: -5°C to +90°C (UL/CSA: +80°C)
- Fixed installation: -15°C to +90°C (UL/CSA: +80°C)
Voltage Range:
- Rated voltage: 1000V
- Test voltage: 4000V
Bending Radius:
- Mobile installation: 10 × cable outer diameter
- Fixed installation: 4 × cable outer diameter
