S6-L-B112-3.0 High-Power Motor & Brake Combo Cable

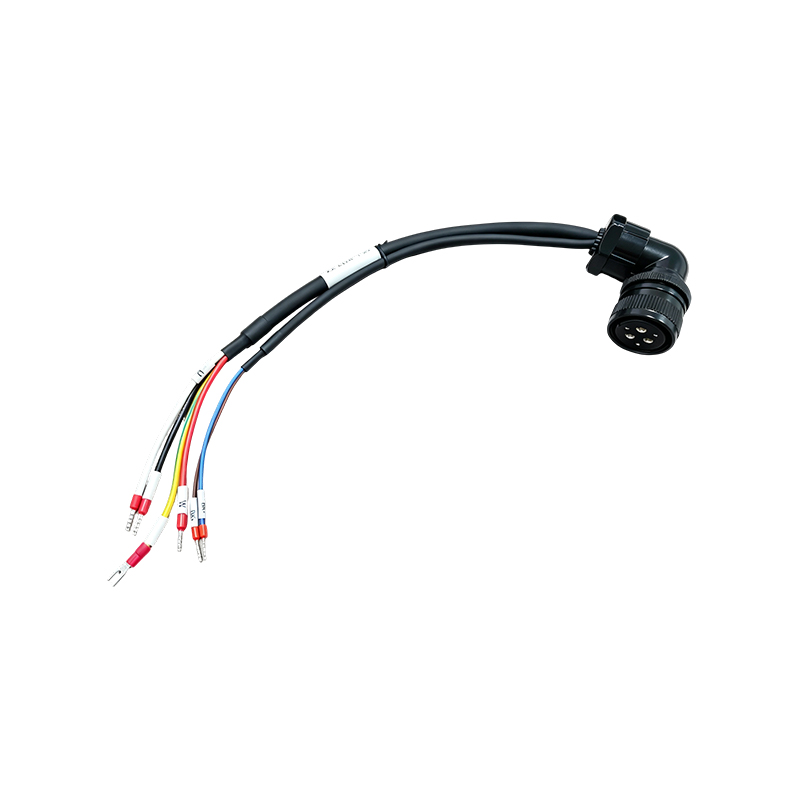

Integrated High-Efficiency Power and Brake Transmission: The cable combines motor power supply and electromagnetic brake power supply within a single main sheath, splitting into independently routed branches. The wire ends form a complete circuit with U, V, W three-phase power lines, a PE grounding wire, and BK+/BK- brake lines, allowing one cable installation to satisfy both motor operation and braking power requirements, significantly simplifying wiring work on the equipment side.

High-Power Current-Carrying Design: The core conductors use heavy-gauge, multi-strand flexible pure copper wire, providing ample current-carrying capacity and low transmission loss to meet the stable power supply requirements of high-power servo motors under heavy-load, continuous operating conditions, effectively reducing heat buildup and voltage drop.

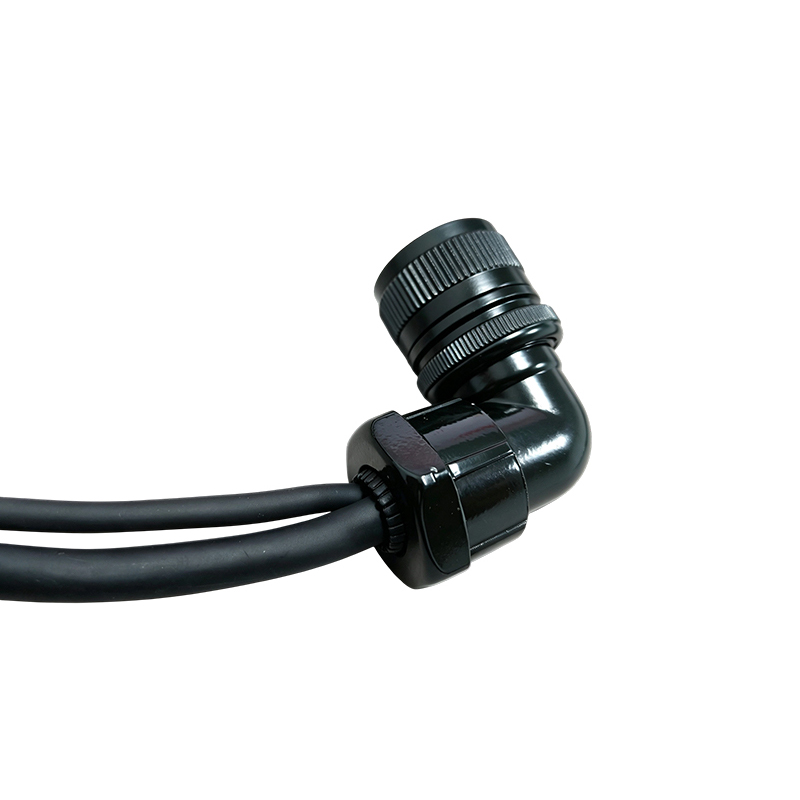

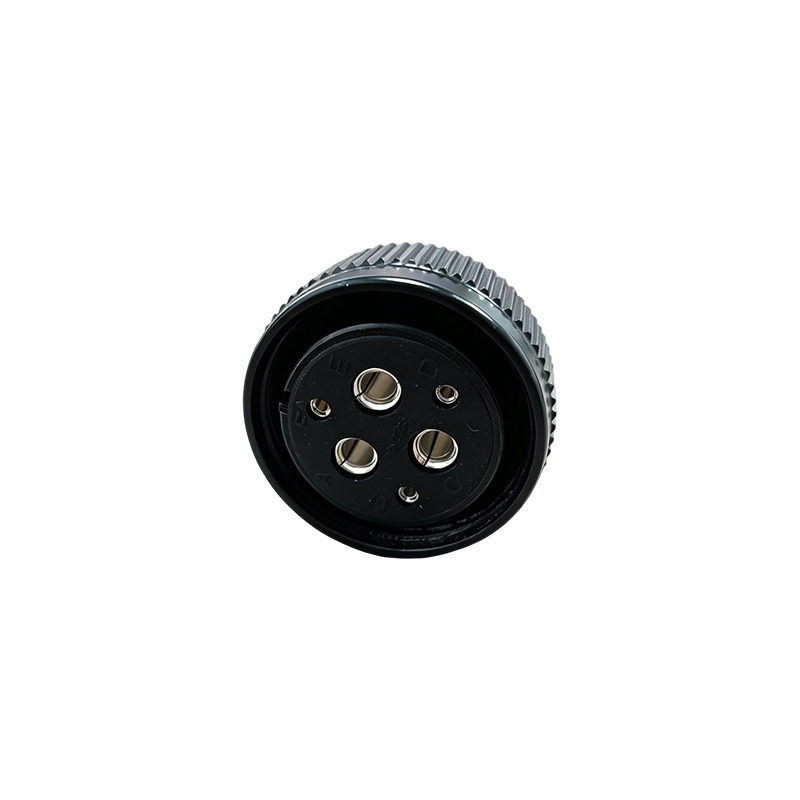

Robust and Reliable Dual-Connector Structure: The drive end is fitted with a right-angle circular aviation connector featuring an internal 4-pin layout, with a die-cast metal housing combined with a waterproof and dustproof locking coupling nut and cable clamp, effectively withstanding vibration, dragging, dust, and moisture in industrial environments. The accompanying 4-pin brake connector also features a keyed pin design to ensure accurate installation.

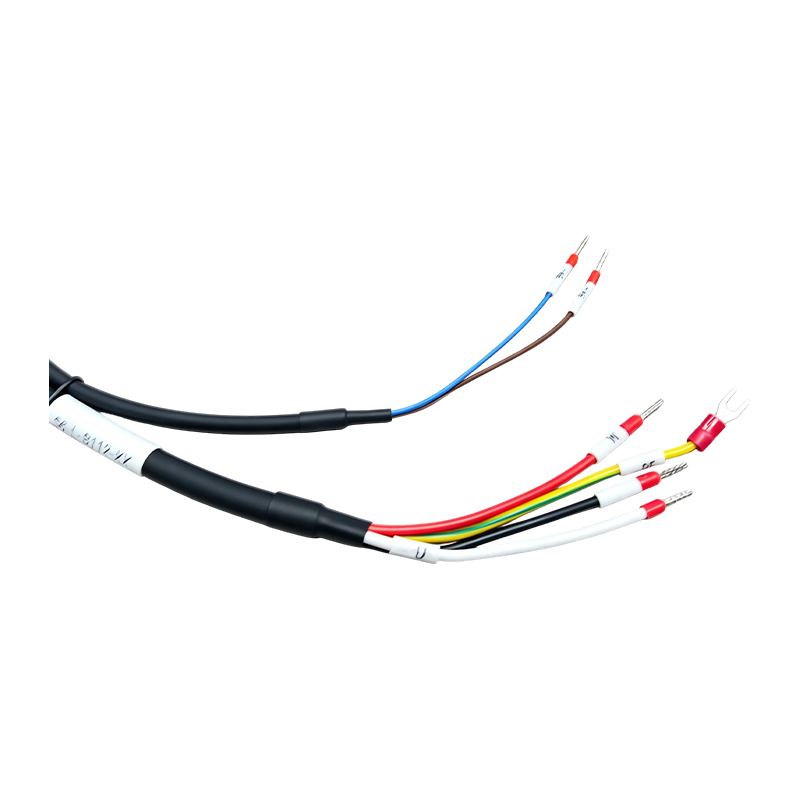

Precise Labeling and Standardized Workmanship: The U/V/W power wires and BK+/BK- brake wires are each clearly marked with heat-shrink labels and fitted with open-barrel or fork-style crimp terminals, allowing installers to wire quickly and accurately based on the labeling, reducing miswiring risk and shortening on-site commissioning time.

Weather- and Abrasion-Resistant Sheath Material: The outer sheath is made of an oil-resistant, abrasion-resistant PVC composite material with excellent flexibility and flame-retardant properties, suitable for sustained use in complex industrial environments such as workshops and production lines.

Full-Process Quality Testing: Every cable undergoes continuity testing, insulation resistance testing, and high-voltage withstand testing prior to shipment, ensuring compliance with China's 3C certification and EU CE certification standards, and providing customers with safe and dependable power and brake transmission.

Product Selling Points

Dedicated Cable for High-Power Servo Systems: Custom-developed for high-power servo motors equipped with electromagnetic brakes, suitable for CNC machine tools, industrial robots, and heavy-load handling equipment where brake reliability is critical.

Simplified Wiring with Dual Functionality: Motor power and brake power are integrated into a single main cable, reducing the number of cables and cable-tray space required on the equipment side and lowering installation complexity.

No Secondary Processing Required: Terminal crimping and connector assembly are completed prior to shipment, allowing users to connect directly to their equipment upon receipt without professional electrical rework, lowering installation barriers and labor costs.

Flexible Customization Service: Cable length, connector model, and terminal type can all be customized according to the customer's equipment interface specifications, fully accommodating high-power servo drive systems from different brands.

Application Range: Power wiring for high-power CNC machine tools, joint drive and brake control for industrial robots, integrated power and brake wiring for heavy-load handling and lifting equipment, and high-power servo systems on automated production lines.

Special Notes: The dual-branch design enables independent power and brake transmission; the keyed connector structure ensures accurate installation; the heavy-gauge conductor design suits high-power applications; the sheath's oil and abrasion resistance suits industrial site conditions; the product has passed China's 3C and EU CE certifications; a reliable choice for power and brake wiring in high-power servo systems.
