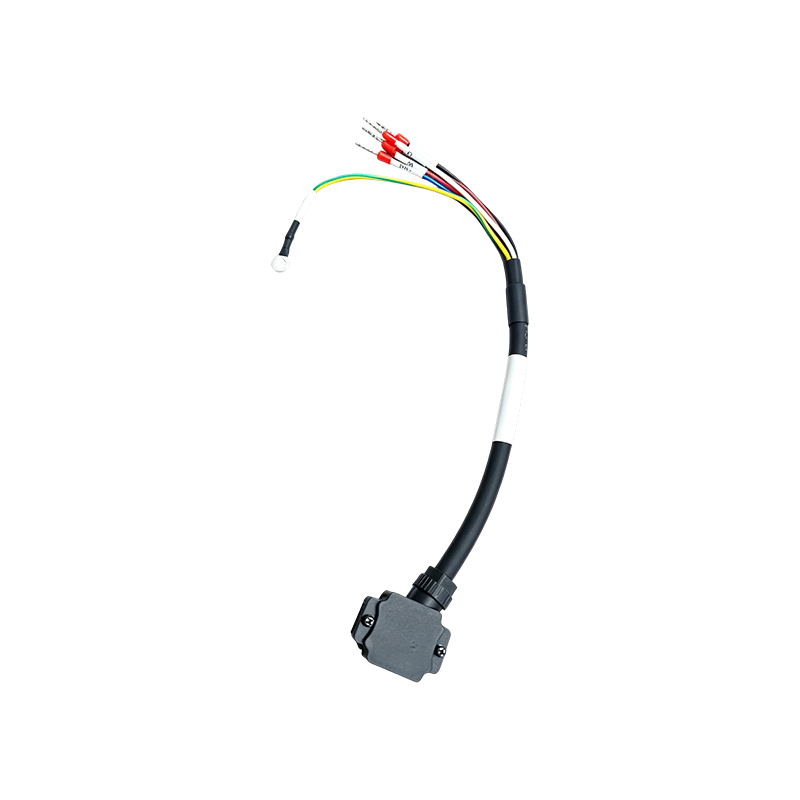

S6-L-B107-5.0 Power & Brake Signal Combo Cable

Integrated Power and Brake Transmission Design: The cable integrates U, V, W three-phase power wires and BK+/BK- electromagnetic brake signal wires — five conductors in total — paired with an independent PE grounding wire, achieving unified connection for both motor power supply and brake control. This eliminates the need for separate wiring runs, satisfying both operation and braking requirements while significantly simplifying installation.

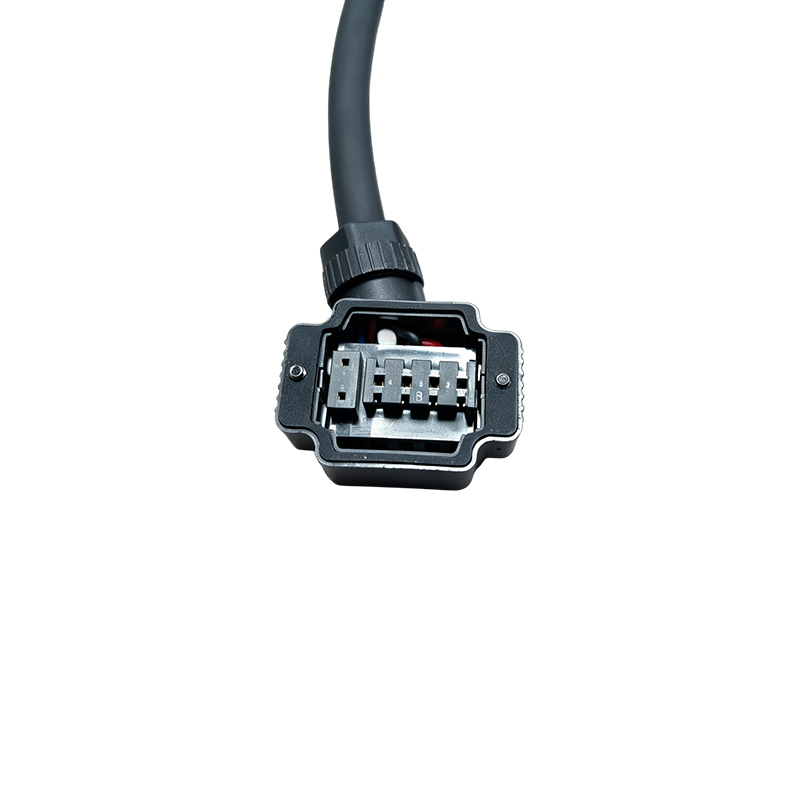

Robust and Reliable Connection Structure: The drive end is fitted with a black square latch-style connector featuring an internal multi-pin terminal layout with numerically coded positions, combined with a locking design for quick insertion and secure retention, effectively preventing poor contact caused by vibration. The motor end comes pre-fitted with open-barrel crimp terminals on each wire, with tin-plated terminal surfaces for stable conductivity and resistance to oxidation and corrosion.

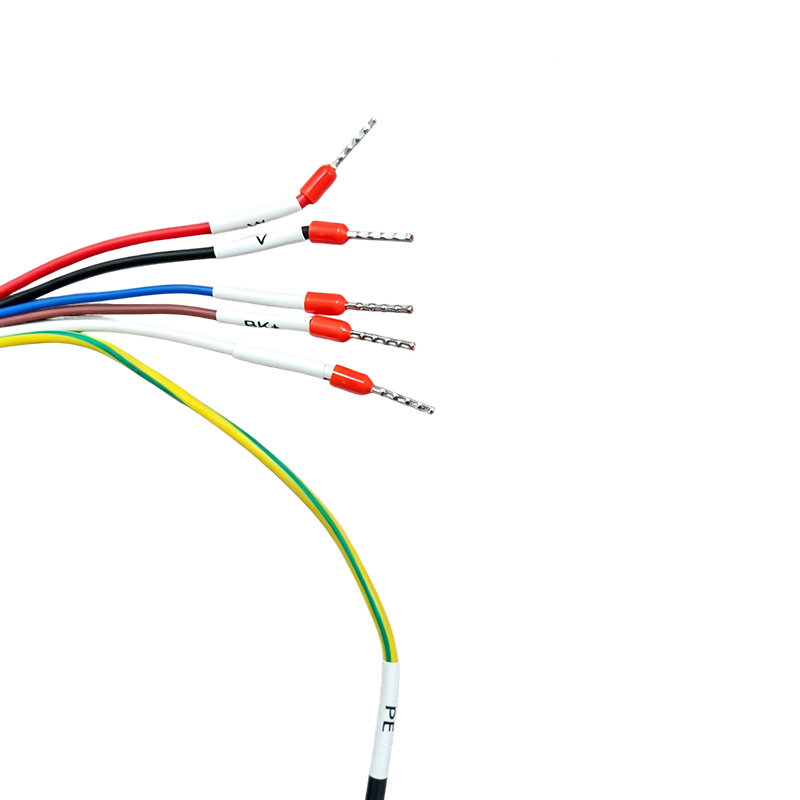

Precise Labeling and Standardized Workmanship: Each wire end is clearly marked with a heat-shrink label indicating its wire sequence (U/V/W/BK+/BK- and PE), and professional crimping technique ensures stable contact resistance. Installers can wire quickly and accurately based on the labeling, significantly reducing the risk of miswiring and shortening on-site commissioning time.

Weather- and Abrasion-Resistant Sheath Material: The outer sheath is made of an oil-resistant, abrasion-resistant PVC composite material with excellent flexibility, weather resistance, and flame retardancy, suitable for sustained use in complex industrial environments such as workshops and production lines.

Full-Process Quality Testing: Every cable undergoes continuity testing, insulation resistance testing, and high-voltage withstand testing prior to shipment, ensuring compliance with China's 3C certification and EU CE certification standards, and providing customers with safe and dependable power and brake transmission.

Product Selling Points

Simplified Wiring with Dual Functionality: Power supply and brake control signals are integrated into a single cable, reducing the number of cables and cable-tray space required on the equipment side while lowering installation complexity and troubleshooting difficulty.

Dedicated Cable for Servo Systems: Custom-developed for servo motors equipped with electromagnetic brakes, suitable for CNC machine tools, industrial robots, and automated production lines where brake reliability is essential.

No Secondary Processing Required: Terminal crimping and connector assembly are completed prior to shipment, allowing users to connect directly to their equipment upon receipt without professional electrical rework, lowering installation barriers and labor costs.

Flexible Customization Service: Cable length, connector model, and terminal type can all be customized according to the customer's equipment interface specifications, fully accommodating servo drive systems from different brands.

Application Range: Power and brake wiring for CNC machine tools, joint drive and brake control for industrial robots, servo systems on automated production lines, integrated power and brake wiring for packaging machinery, and electrical connections for heavy-load handling and lifting equipment.

Special Notes: The 5-wire integrated design enables synchronized power and brake transmission; the keyed connector structure ensures accurate installation; the sheath's oil and abrasion resistance suits industrial site conditions; the product has passed China's 3C and EU CE certifications; an efficient solution for power and brake wiring in servo systems.
