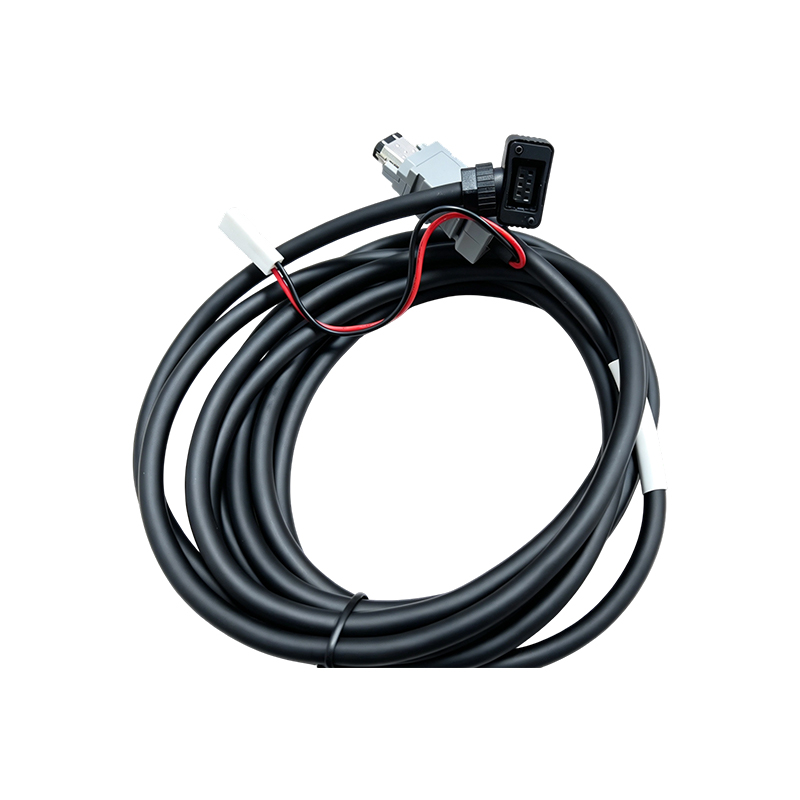

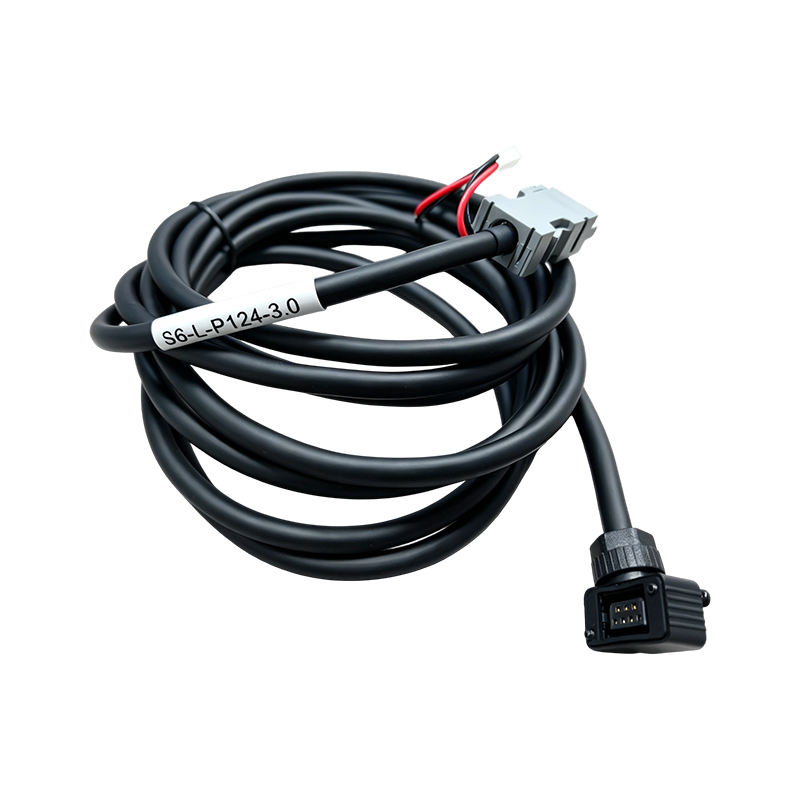

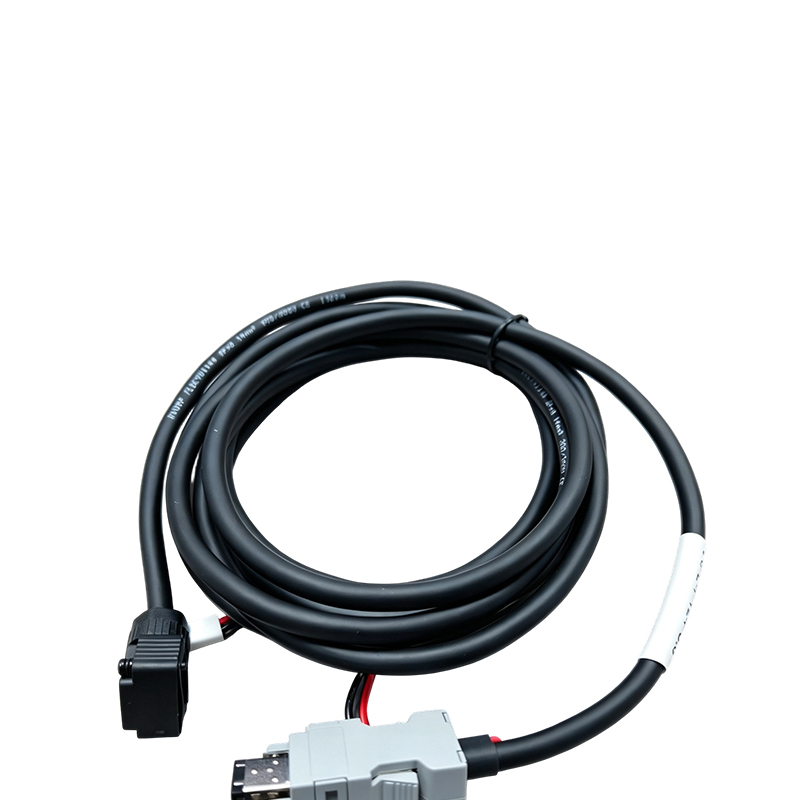

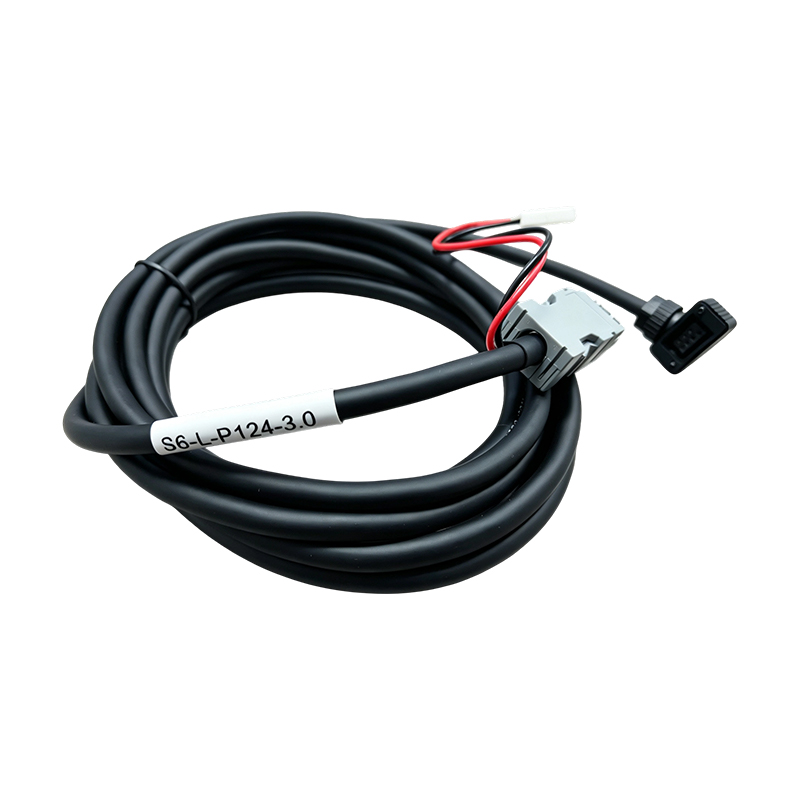

S6-L-P124-3.0 SV660 Encoder & Brake Power Combo Cable

Integrated Signal and Power Design: The cable combines encoder feedback signal wires and electromagnetic brake power lines within a single sheath, with the brake power circuit independently routed out through a dedicated white 2-pin terminal. This integrated design enables both encoder signal acquisition and brake control through one connection, reducing the number of cables required on the equipment side and improving overall wiring neatness and installation efficiency.

High-Precision Anti-Interference Transmission: The encoder signal cores are shielded, providing comprehensive electromagnetic compatibility (EMC) protection from low to high frequencies. This effectively suppresses common-mode interference and magnetic field coupling noise, ensuring that encoder position and speed feedback signals remain clear and undistorted even in control cabinets with densely arranged inverters and servo drives.

Robust and Reliable Dual-End Connection Structure: The drive end is fitted with a gray D-Sub connector featuring a die-cast metal housing and spring-latch locking design for smooth insertion and reliable contact, effectively avoiding poor contact caused by vibration. The motor end uses a black square latch-style connector with an internal 6-pin layout and a waterproof locking nut, providing effective sealing protection suitable for humid, dusty, and other complex site environments.

Weather- and Abrasion-Resistant Sheath Material: The outer sheath is made of an oil-resistant, abrasion-resistant PVC composite material with excellent flexibility and flame-retardant properties, suitable for sustained bending and dragging in complex industrial environments such as workshops and production lines, extending the overall service life of the cable.

Full-Process Quality Testing: Every cable undergoes continuity testing, insulation resistance testing, and signal function testing prior to shipment, ensuring compliance with China's 3C certification and EU CE certification standards, and providing customers with safe and dependable signal and power transmission.

Product Selling Points

Simplified Wiring with Dual Functionality: Encoder signal and brake power are integrated into a single cable, reducing the number of cables and cable-tray space required on the equipment side while lowering installation complexity and troubleshooting difficulty.

Standardized Dual-End Interface Design: Both the D-Sub drive-end connector and the square latch-style motor-end connector use industry-common interface specifications, enabling true plug-and-play connection without additional adapters.

Strong Anti-Interference Performance: The shielded structure fundamentally suppresses electromagnetic interference, making it an ideal solution for reliably transmitting encoder feedback signals in complex electromagnetic environments.

No Secondary Processing Required: Terminal and connector assembly is completed prior to shipment, allowing users to connect directly to their equipment upon receipt without professional electrical rework, lowering installation barriers and labor costs.

Flexible Customization Service: Cable length, connector model, and terminal type can all be customized according to the customer's equipment interface specifications, fully accommodating different application scenarios.

Application Range: Encoder and brake wiring between servo drives and motors, joint position detection and brake control for industrial robots, signal transmission on automated production lines, and integrated precision positioning and braking control for packaging machinery.

Special Notes: The shielding design ensures encoder signal transmission stability; the integrated brake power line simplifies overall equipment wiring; the dual-end keyed connector structure ensures accurate installation; the sheath's oil and abrasion resistance suits industrial site conditions; the product has passed China's 3C and EU CE certifications; a reliable choice for integrated signal and power wiring.
