S6-L-P121-3.0 Servo Encoder Cable

High-Precision Signal Transmission Design: The internal signal cores use twisted-pair construction combined with a metal braided shielding layer, effectively suppressing common-mode interference and electromagnetic coupling noise. This provides comprehensive electromagnetic compatibility (EMC) protection from low to high frequencies, ensuring that encoder position and speed feedback signals remain undistorted and undegraded over extended transmission distances.

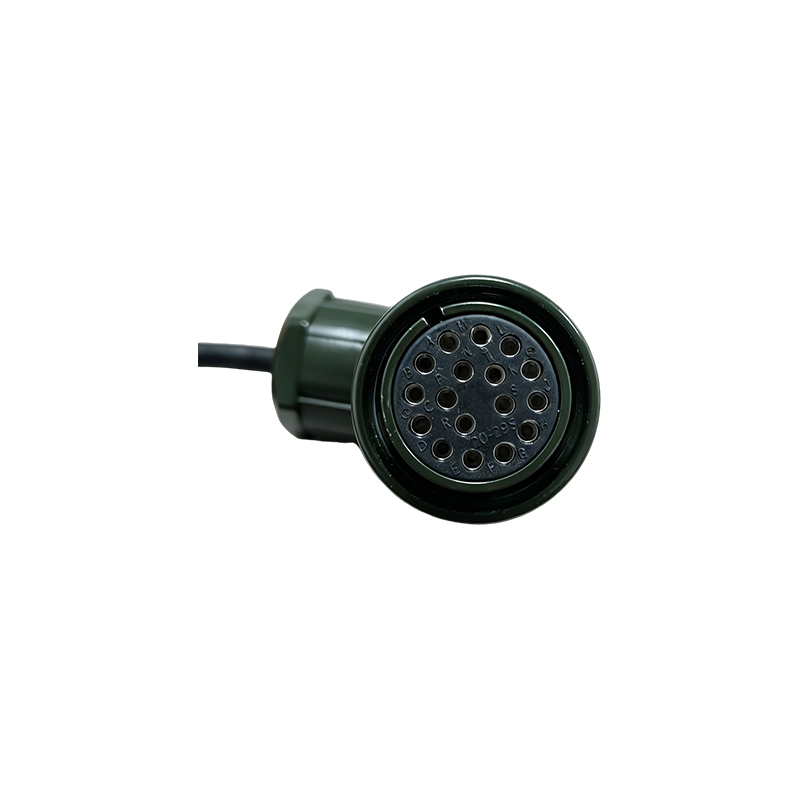

Robust and Reliable Connection Structure: One end is fitted with an olive-green right-angle circular aviation connector using a standard 20-29S shell with 17 alphabetically keyed pin positions to prevent mis-insertion; the die-cast metal connector body, combined with a waterproof and dustproof locking coupling nut and cable clamp, effectively withstands vibration and pulling stress in industrial environments. The opposite end features a gray latch-style connector for convenient insertion and reliable locking, compatible with mainstream servo drive encoder interfaces.

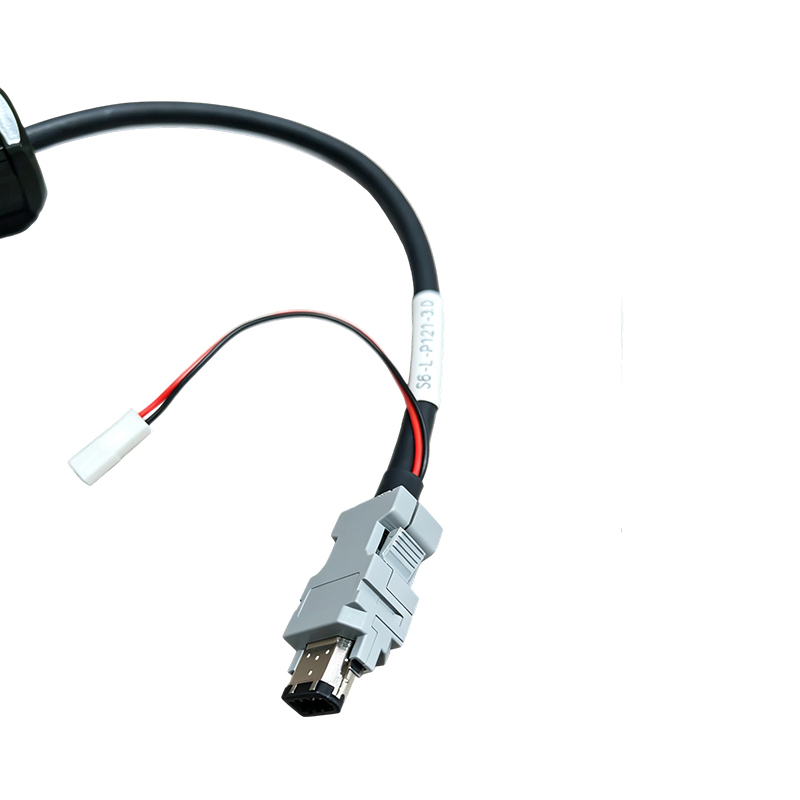

Integrated Multi-Function Auxiliary Interface: A white 2-pin terminal is reserved on the cable, independently routing auxiliary power lines such as brake or fan supply circuits without additional wiring, improving overall wiring efficiency for equipment with multiple power requirements.

Weather- and Abrasion-Resistant Sheath Material: The outer sheath is made of an oil-resistant, abrasion-resistant PVC composite material with excellent flexibility and flame-retardant properties, suitable for sustained bending and dragging in complex industrial environments such as workshops and production lines.

Full-Process Quality Testing: Every cable undergoes continuity testing, insulation resistance testing, and signal function testing prior to shipment, ensuring compliance with China's 3C certification and EU CE certification standards, and providing customers with safe and dependable signal transmission.

Product Selling Points

Dedicated Encoder Cable for Servo Systems: Custom-developed for signal connection requirements between servo motor encoders and drives, suitable for CNC machine tools, industrial robots, automated production lines, and other high-precision control scenarios.

Strong Anti-Interference Performance: The twisted-pair shielded structure fundamentally suppresses electromagnetic interference, making it an ideal solution for reliably transmitting encoder feedback signals in complex electromagnetic environments, particularly in control cabinets with densely arranged inverters and servo drives.

No Secondary Processing Required: Terminal and connector assembly is completed prior to shipment, allowing users to connect directly to their equipment upon receipt without professional electrical rework, lowering installation barriers and labor costs.

Flexible Customization Service: Cable length, connector model, and terminal type can all be customized according to the customer's equipment interface specifications, fully accommodating servo drive systems from different brands.

Application Range: CNC machine tool encoder feedback wiring, industrial robot joint position detection, servo system signal transmission on automated production lines, precision positioning control for packaging machinery, and signal connections for electronic manufacturing equipment.

Special Notes: The shielding design ensures encoder signal transmission stability; the keyed connector structure ensures accurate installation; the sheath's oil and abrasion resistance suits industrial site conditions; the product has passed China's 3C and EU CE certifications; a reliable choice for signal wiring in servo systems.
