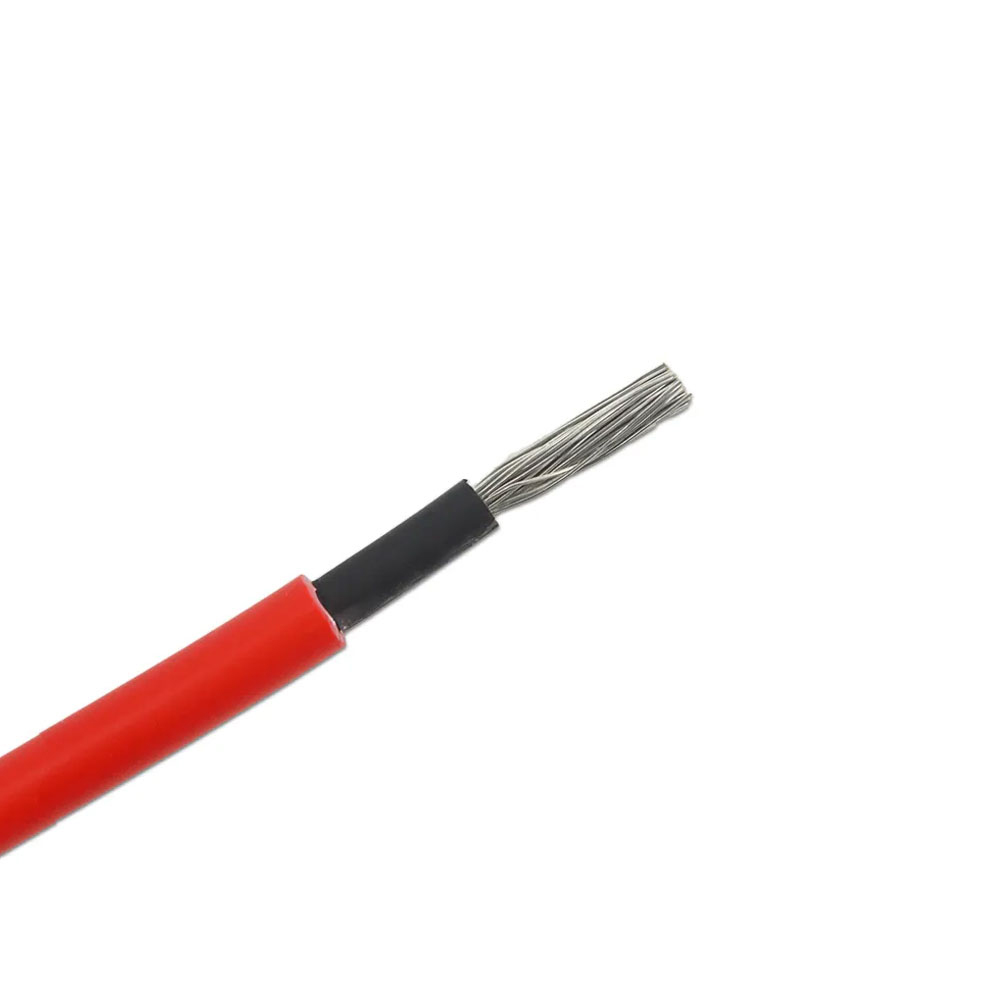

PV1-F Excellent weather resistance Photovoltaic Cable

Characteristics: PV1-F is a special DC cable for photovoltaic systems, using cross-linked low-smoke zero-halogen polyolefin (XLPO) insulation and sheath, offering excellent high-temperature resistance, UV resistance, ozone resistance, and chemical corrosion resistance

Request Quote Contact Us

Product Details
Product Parameters

Product Details

Advantages:
Specialized photovoltaic design: Optimized for the high DC voltage and outdoor exposure conditions of PV systems, with long-term resistance to UV radiation and ozone.
High-temperature resistance: Supports long-term operation at 120°C, tolerating high-temperature hot-spot effects on PV panels.
Low-smoke, halogen-free safety: Low toxicity smoke and no corrosive gases in case of fire, reducing risks to personnel and equipment.
Excellent weather resistance: Passes rigorous climate aging tests, adaptable to outdoor environments with alternating high/low temperatures, humidity, and salt spray.
Flexible and easy to install: The conductor and insulation are flexible, facilitating conduit threading, bundling, and tray installation for PV arrays.

Application Scope: DC side wiring of solar photovoltaic power generation systems, series and parallel connections of photovoltaic modules, DC input connections of inverters, DC busbars in photovoltaic power plants, and all outdoor photovoltaic DC circuits

Special Notes: Specifically designed for photovoltaic DC high voltage; excellent weather resistance ensures over 25 years of outdoor service life; tin-plated conductors prevent oxidation; low-smoke zero-halogen materials ensure fire safety; red and black colors facilitate polarity identification

PREV:No previous article NEXT: No next article

Lighting Up Thousands of Projects That Connect the World's Future

Anhui Zhishang Cable Technology Co., Ltd. is located in Xuanzhou District, Xuancheng City, Anhui Province, a key node city in the Yangtze River Delta region. The company is an enterprise integrating the R&D, production, and sales of wires and cables. It possesses a modern production base covering approximately 5,000 square meters and employs a team of over 50 staff members, including multiple quality engineers and R&D technicians, each with more than 10 years of industry experience.

Certificate Of Honor

News

How Proper House Wiring Cable Installation Reduces Fire Risks？
2026-03-03
The Relationship Between House Wiring Cable Installation and Fire RiskElectrical safety in residential buildings is closely linked to how house wiring cables are installed. While modern cables are des...
READ MORE
What Makes Infrastructure & Construction Cables Different from Standard Cables?
2026-03-03
Understanding Infrastructure & Construction CablesInfrastructure and construction cables are specifically engineered to support large-scale, long-term projects such as buildings, bridges, transpor...
READ MORE
How Are New Energy Cables Supporting the Growth of Offshore Wind Farms?
2026-03-03
Introduction: The Growing Need for New Energy Cables in Offshore Wind FarmsAs the world transitions to renewable energy sources, offshore wind farms are emerging as a key player in the global energy m...
READ MORE
How Do New Energy Cables Enhance Efficiency in Solar and Wind Installations?
2026-03-03
Introduction to New Energy CablesNew energy cables are specialized conductors designed to transmit electricity efficiently and reliably in renewable energy systems such as solar farms and wind turbine...
READ MORE
How Instrumentation Cables Ensure Safety in Hazardous Industrial Zones？
2026-03-03
The Critical Role of Instrumentation Cables in Hazardous Industrial ZonesHazardous industrial zones such as oil and gas facilities, chemical plants, mining operations, and power generation sites prese...
READ MORE
What Role Do New Energy Cables Play in Energy Storage Systems?
2026-03-03
The Strategic Importance of New Energy Cables in Energy Storage SystemsEnergy storage systems are a cornerstone of modern power infrastructure, enabling renewable energy integration, grid stability, a...
READ MORE

X Facebook

Product News

Conductor	Tin-plated copper conductor, multi-stranded (Class 5 or 6)
Cross-section Range	1.5 mm² ~ 35 mm²
Rated Voltage	DC 1.8 kV (conductor to ground)
Test Voltage	6.5 kV (AC, 5 minutes)
Insulation Material	Cross-linked low-smoke zero-halogen polyolefin (XLPO)
Insulation Thickness	0.7 mm ~ 1.2 mm (depending on cross-section)
Sheath Material	Cross-linked low-smoke zero-halogen polyolefin (XLPO)
Sheath Thickness	0.5 mm ~ 1.0 mm (depending on cross-section)
Long-term Operating Temperature	+120℃
Short-term Overload Temperature	+150℃ (1000 hours)
Minimum Installation Temperature	-40℃
UV Resistance	Passes IEC 60332-3-25 UV test (≥ 120 kWh/m²)
Ozone Resistance	Passes IEC 60811-2-1 ozone test
Thermal Shock Resistance	Passes IEC 60216 thermal elongation test (200℃×15min, load 20N/cm², elongation ≤175%)
Moisture Resistance	Passes IEC 60068-2-78 damp heat test (90% RH, +85℃, 1000 hours)
Acid/Alkali Resistance	Passes IEC 60811-2-1 chemical reagent test
Oil Resistance	Passes IEC 60811-2-1 oil immersion test
Flame Retardancy	Passes IEC 60332-1 single vertical flame test
Minimum Bending Radius	Fixed installation- 4 × cable outer diameter; Mobile installation- 5 × cable outer diameter
Torsion Resistance	Passes IEC 60811-2-1 torsion test (±180°/m, 20 cycles)
Color	Red, black (standard), other colors optional
Service Life	≥ 25 years (outdoor environment)
Certification Standards	TÜV 2 PfG 1169/08.2007, IEC 62930
