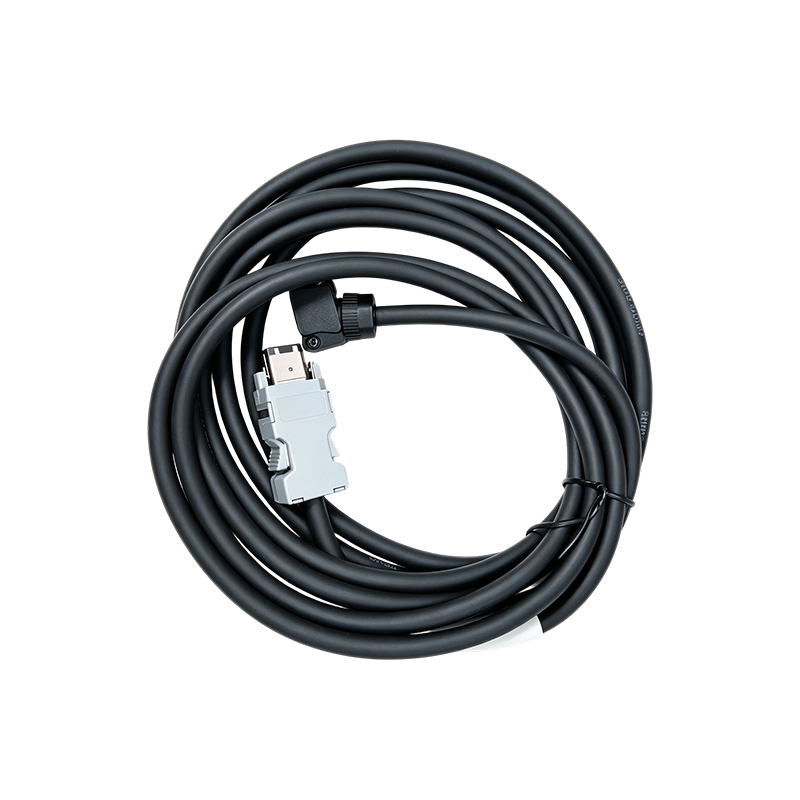

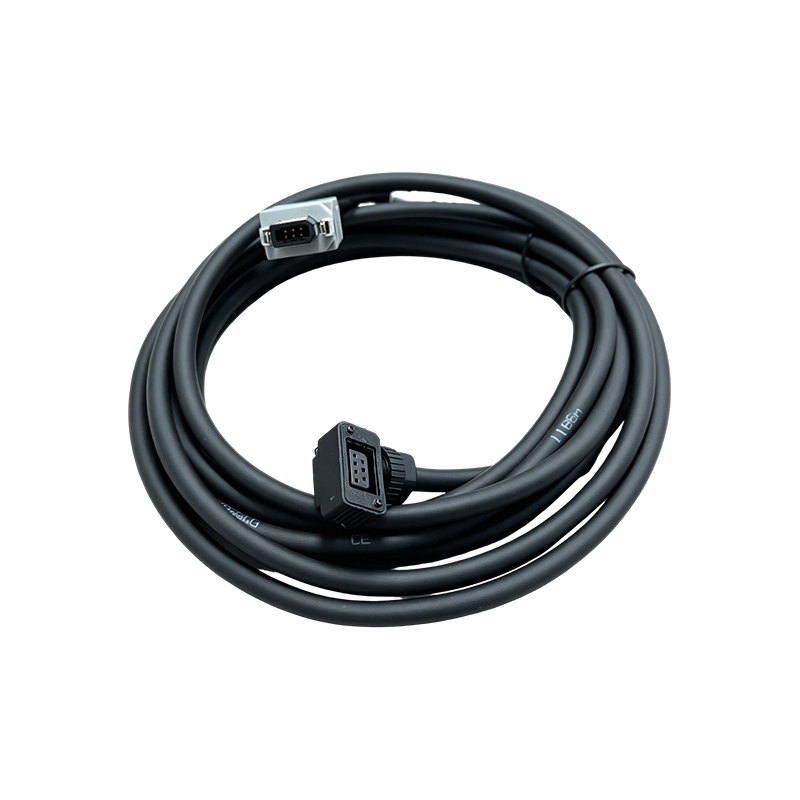

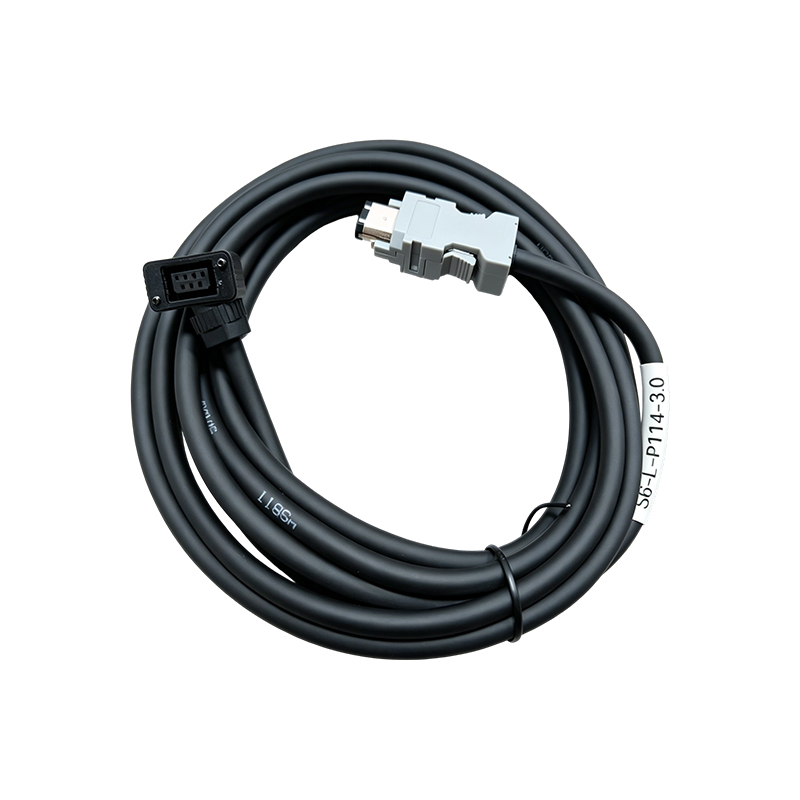

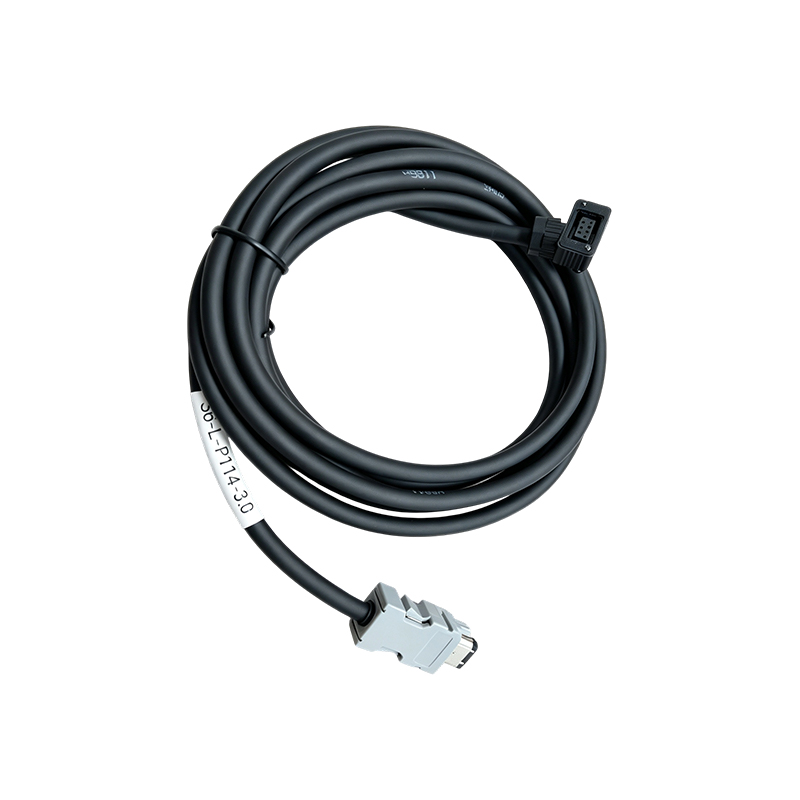

S6-L-P114-3.0 Encoder Feedback Signal Cable

High-Precision Signal Transmission Design: The internal signal cores are shielded to effectively suppress external electromagnetic interference and signal crosstalk, ensuring that encoder position and speed feedback signals maintain high precision and stability during transmission, meeting the stringent real-time signal requirements of servo systems.

Robust and Reliable Dual-End Connection Structure: The drive end is fitted with a gray D-Sub connector featuring a die-cast metal housing and spring-latch locking design for smooth insertion and reliable contact, effectively preventing poor contact caused by vibration. The motor end uses a black square latch-style connector with an internal 6-pin layout and a waterproof locking nut, providing effective sealing protection suitable for humid, dusty, and other complex site environments.

Highly Flexible Sheath Material: The outer sheath is made of a highly flexible, bend-resistant composite material with excellent oil resistance, abrasion resistance, and flame retardancy. Even under repeated bending and pulling in drag chain or robotic arm applications with frequent motion, it maintains stable electrical performance and structural integrity, significantly extending cable service life.

Precise Interface Matching Design: Connector specifications are designed strictly according to standard servo system interface dimensions, with keyed pin arrangements that prevent installation errors and resulting equipment damage or commissioning delays, improving on-site installation efficiency.

Full-Process Quality Testing: Every cable undergoes continuity testing, insulation resistance testing, and signal function testing prior to shipment, ensuring compliance with China's 3C certification and EU CE certification standards, and providing customers with safe and dependable signal transmission.

Product Selling Points

Dedicated Encoder Cable for Servo Systems: Custom-developed for signal connection requirements between servo motor encoders and drives, suitable for CNC machine tools, industrial robots, automated production lines, and other high-precision control scenarios.

Standardized Dual-End Interface Design: Both the D-Sub drive-end connector and the square latch-style motor-end connector use industry-common interface specifications, enabling true plug-and-play connection without additional adapters.

No Secondary Processing Required: Terminal and connector assembly is completed prior to shipment, allowing users to connect directly to their equipment upon receipt without professional electrical rework, lowering installation barriers and labor costs.

Flexible Customization Service: Cable length, connector model, and terminal type can all be customized according to the customer's equipment interface specifications, fully accommodating servo drive systems from different brands.

Application Range: CNC machine tool encoder feedback wiring, industrial robot joint position detection, servo system signal transmission on automated production lines, precision positioning control for packaging machinery, and signal connections for electronic manufacturing equipment.

Special Notes: The shielding design ensures encoder signal transmission stability; the dual-end keyed connector structure ensures accurate installation; the highly flexible sheath suits frequent-motion applications; the product has passed China's 3C and EU CE certifications; a reliable choice for signal wiring in servo systems.
