BTLY Waterproof and moisture-proof Flexible Mineral-Insulated Fire-Resistant Cable

High Reliability and Long Lifespan:
Composed of inorganic materials, it offers superior aging resistance and a lifespan far exceeding that of ordinary cables.
Waterproof and Moisture-Proof:
The aluminum sheath structure ensures safe operation even in damp, directly buried, or underwater environments (special models required).
High Overload Capacity:
High operating temperature and excellent short-term overload performance.
Installation Convenience:
Flexible Structure: Unlike rigid mineral-insulated cables (BTTZ), BTLY can be bent, cut, and installed like ordinary cables, eliminating the need for specialized terminal heads and significantly reducing installation costs and time.
Outstanding Comprehensive Performance:
Combines fire resistance, flame retardance, halogen-free low-smoke properties, waterproofing, and explosion protection (sealed aluminum sheath).
Application Scope:
Primarily used for power supply to firefighting equipment and critical safety systems, as well as in locations where power failure could lead to significant losses or severe consequences.

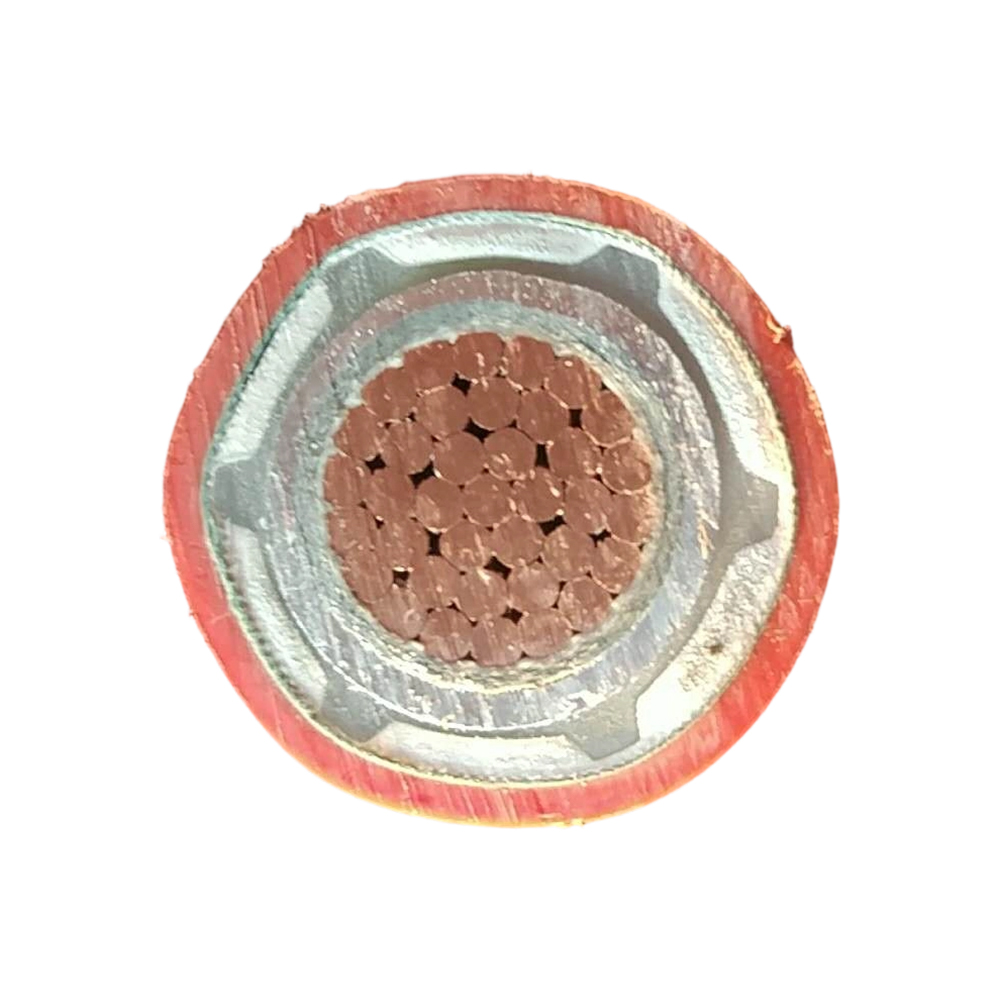

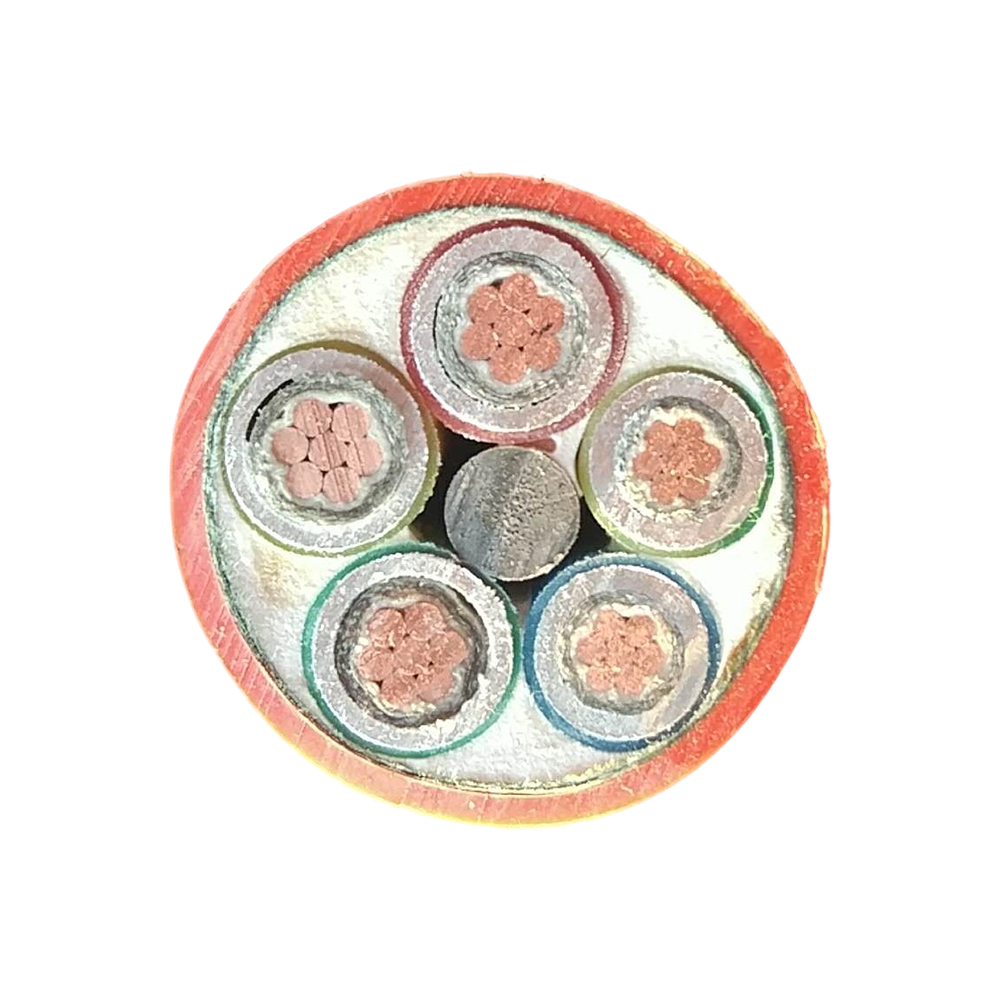

Conductor Annealed copper conductor (Class 2, compacted circular), cross-sectional range: 1.5 mm² ~ 400 mm² (single-core) or larger.
Insulation Layer: Double-layer mica tape wrapping, filled with mineral compound, which is the core of its fire-resistant function.
Metal Sheath: Continuously extruded aluminum sheath serving as a waterproof, moisture-proof barrier and grounding conductor, and providing mechanical protection.
Separator Layer: A separator tape wrapped around the aluminum sheath.
Outer Sheath Low-smoke zero-halogen polyolefin sheath or polyvinyl chloride sheath, typically in orange or halogen-free gray.
Rated Voltage 0.6/1kV.
Long-term Operating Temperature Conductor: +70°C (depending on the outer sheath material, halogen-free types can reach +90°C).
Fire Resistance (Core) Complies with GB/T 19216.21 (IEC 60331-1) standard, withstands flame at 950°C ~ 1000°C for 180 minutes while under rated voltage and mechanical impact, maintaining circuit integrity (3A fuse does not blow).
Flame Retardant Properties: Typically Class A flame retardant (bunched cable burning).
Halogen-Free Low Smoke When the outer sheath is halogen-free low-smoke material, it complies with IEC 60754 and IEC 61034 standards.
Waterproof and Moisture-Proof The aluminum sheath provides 100% radial waterproof and moisture-proof performance.
Minimum Bending Radius 12 × D (D is the cable outer diameter, single-core), 6 × D (multi-core stranded).
