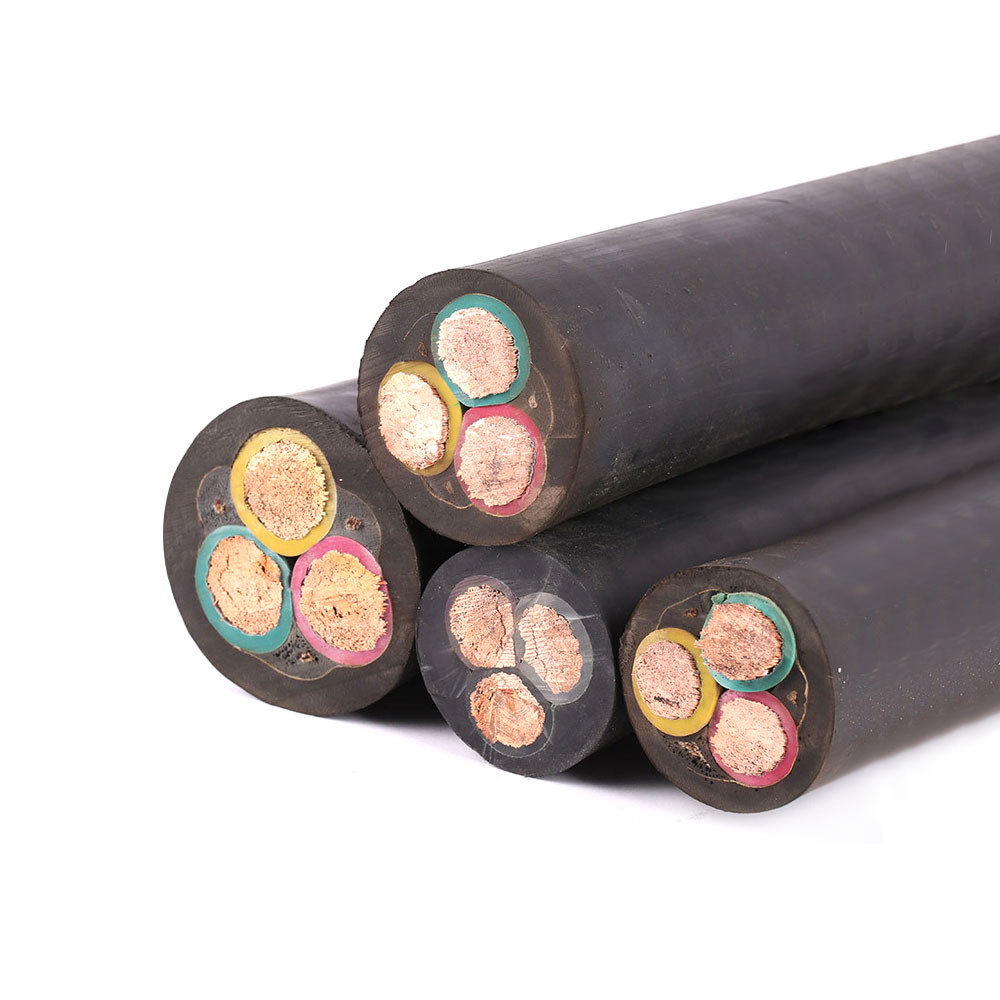

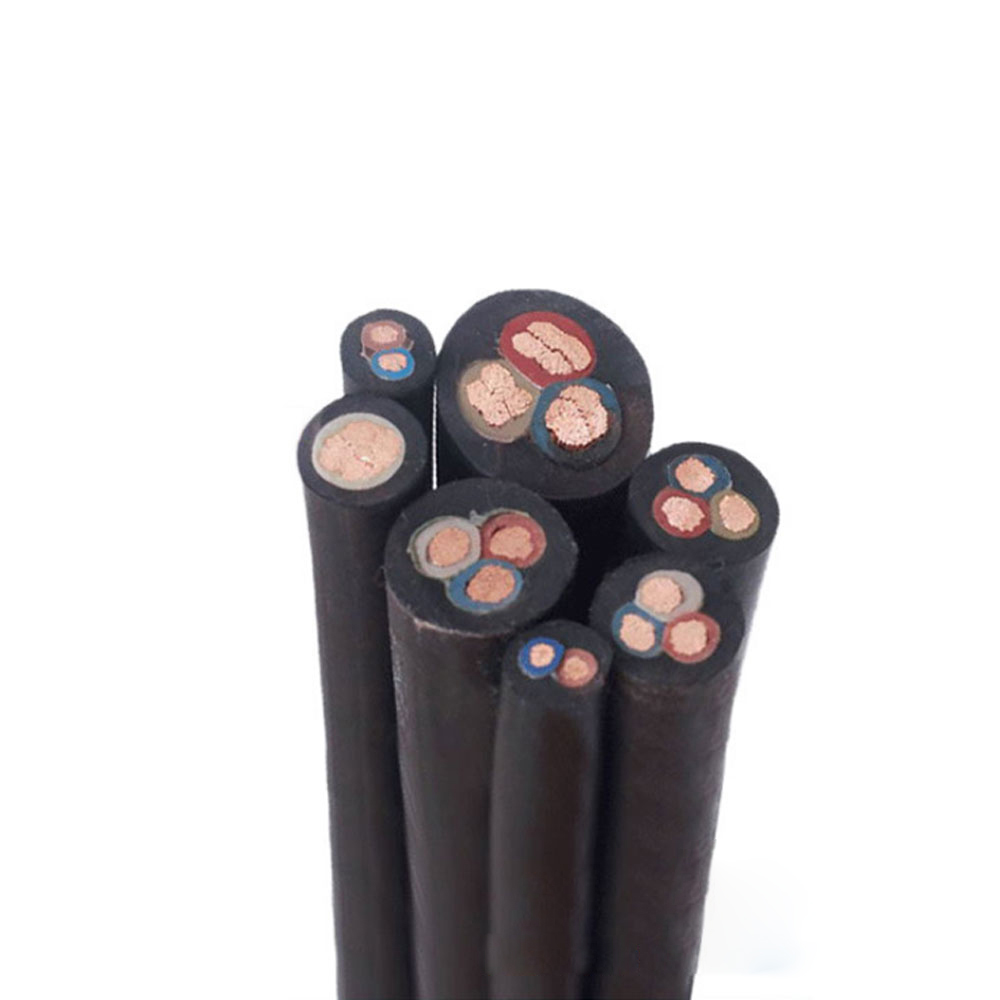

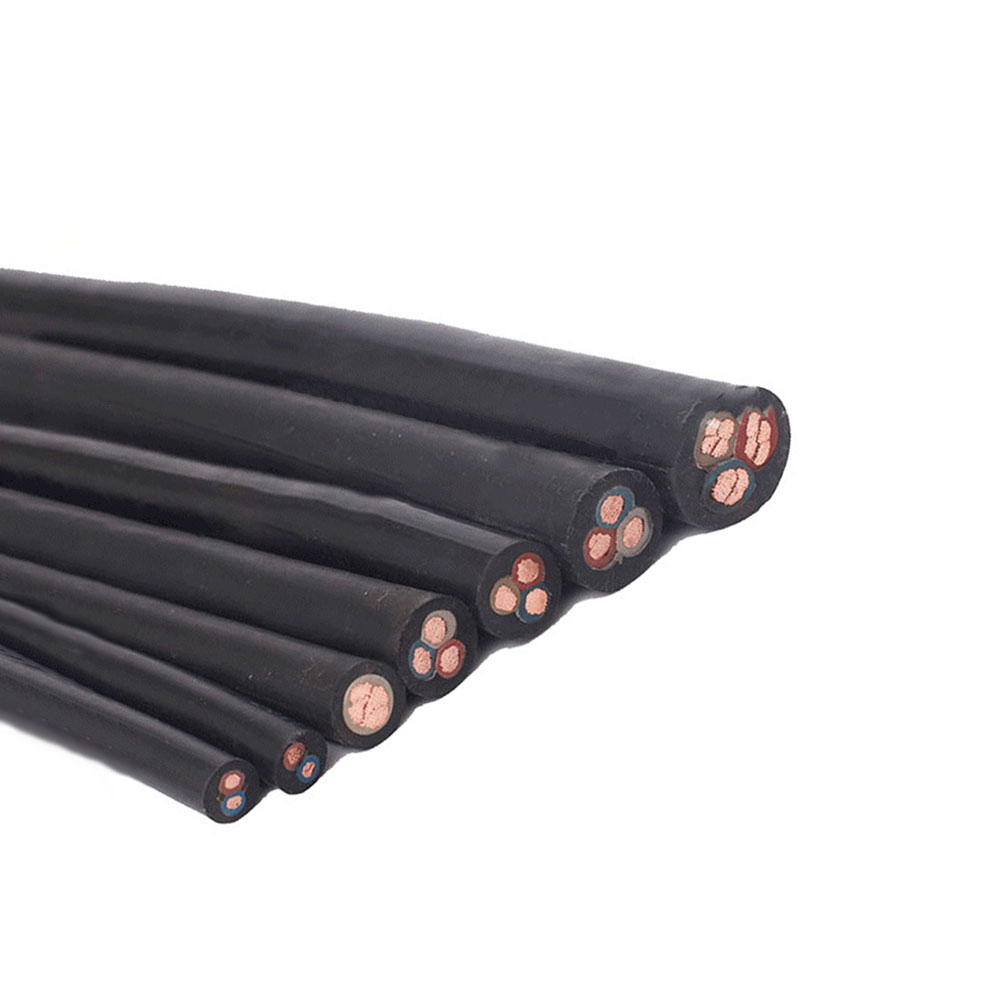

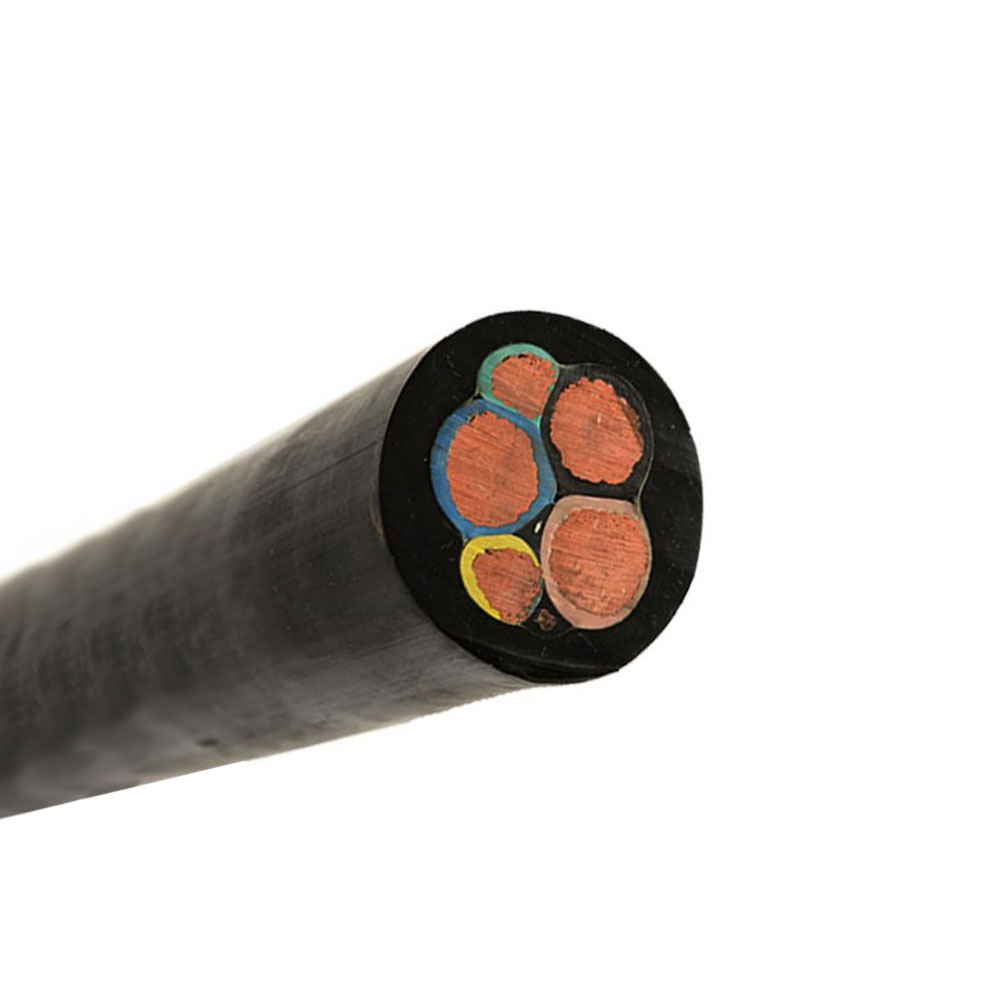

H07RN-F Tolerance to light oil stains CE-Certified Cable

H07RN-F Cable Advantages
Medium-Voltage Rubber Flat Design: Achieves high elasticity and weather resistance of rubber material at 450/750V voltage level
Strong Adaptability to Outdoor Environments: Chloroprene rubber sheathing resists aging and weather, making it suitable for long-term outdoor use
Flat Structure Saves Space: Parallel conductor arrangement reduces overall thickness, facilitating compact wiring for outdoor equipment
Good Mechanical Protection: Rubber sheathing resists wear and light tearing, adapting to complex outdoor working conditions
European Medium-Voltage Outdoor Standard Cable: Complies with EU harmonized standards, suitable for compliant use in European outdoor medium-voltage equipment

H07RN-F Cable Selling Points
EU Outdoor Medium-Voltage Flat Rubber Cable: Specifically designed for European outdoor mobile medium-voltage equipment and temporary medium-voltage power supply
CE-Certified Outdoor Medium-Voltage Flat Cable: Complies with the Low Voltage Directive and outdoor medium-voltage usage requirements, eligible for EU market access
Plug-and-Play Outdoor Medium-Voltage Solution: Rubber material offers excellent weather resistance, can be directly used in outdoor damp and dusty environments
Economical Outdoor Medium-Voltage Connection: Provides low-cost rubber power cords for outdoor engineering equipment and mobile power stations exported to Europe
Complete Specifications and Stable Supply: Common cross-sections (1.5–6 mm²) are well-stocked, supporting urgent engineering project needs

H07RN-F Cable Application Scope
Power Cords for Outdoor Engineering Equipment: Outdoor rubber medium-voltage power cords for European market mobile generators and welding equipment
Temporary Medium-Voltage Power Supply for Events: Flat rubber cables for temporary medium-voltage power distribution at outdoor music festivals and sports events
Medium-Voltage Wiring for Outdoor Lighting: Medium-voltage rubber power supply lines for square high-mast lights and stadium lighting
Connections for Mobile Medium-Voltage Equipment: Temporary incoming and outgoing lines for outdoor transformers, rubber connection cables for mobile distribution boxes
Repair of Outdoor Medium-Voltage Equipment in Europe: Specialized rubber flat cables for outdoor medium-voltage equipment repairs, outdoor medium-voltage replacement wires in EU regions
Compliance Certifications: CE, ROHS

Conductor: Class 5 or Class 6 annealed copper conductor (ultra-fine wires, highly flexible), cross-sectional range: 1.5 mm² to 400 mm² (common core count and cross-sectional combinations).
Insulation Material: Natural/synthetic rubber compound (IE4 type), thickness greater than H05RN-F.
Sheath Material:Chloroprene rubber (CR) or similar synthetic rubber (SE4 type), with greater thickness and mechanical strength.
Core Count and Colors: Common configurations: 1-core, 2-core, 3-core, 4-core, 5-core (3+2 or 4+1). Core color coding complies with IEC 60445; sheath is typically black or orange.
Rated Voltage:450/750V (this is the key difference from H05RN-F, supporting three-phase 380V systems).
Long-term Operating Temperature:+60°C (some models up to +70°C).
Minimum Operating Temperature:-25°C (fixed installation), -15°C (mobile use).
Minimum Bending Radius:12 × D during mobile use (D: cable outer diameter; higher requirement than H05RN-F due to thicker construction).
Test Voltage:2500V AC / 5 minutes (for the 450/750V rating).
