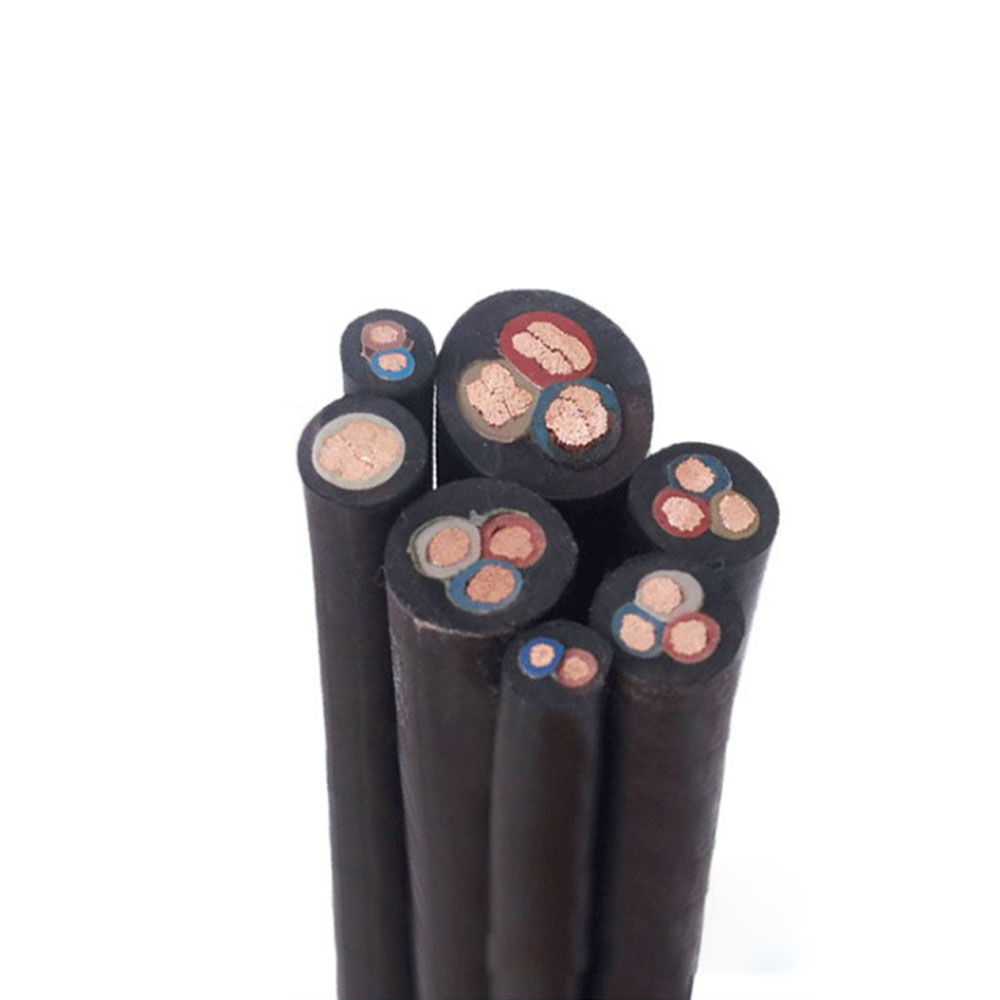

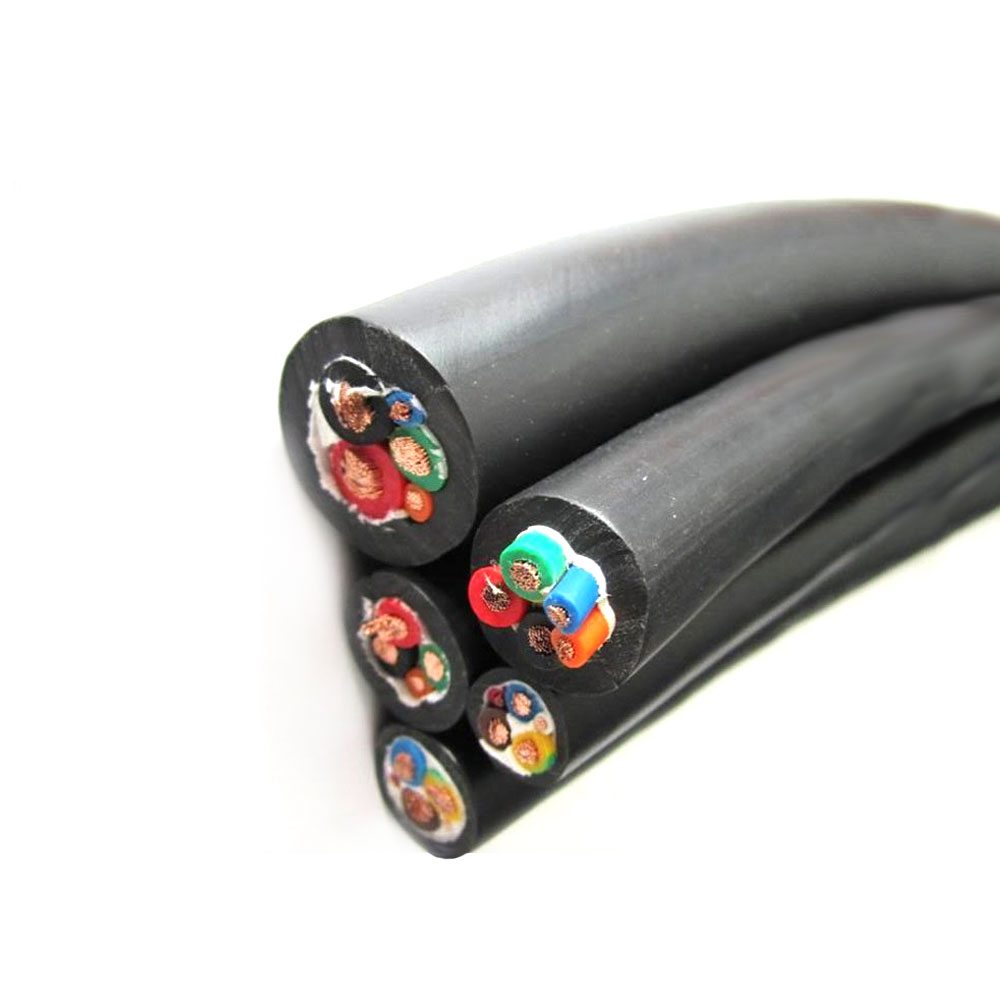

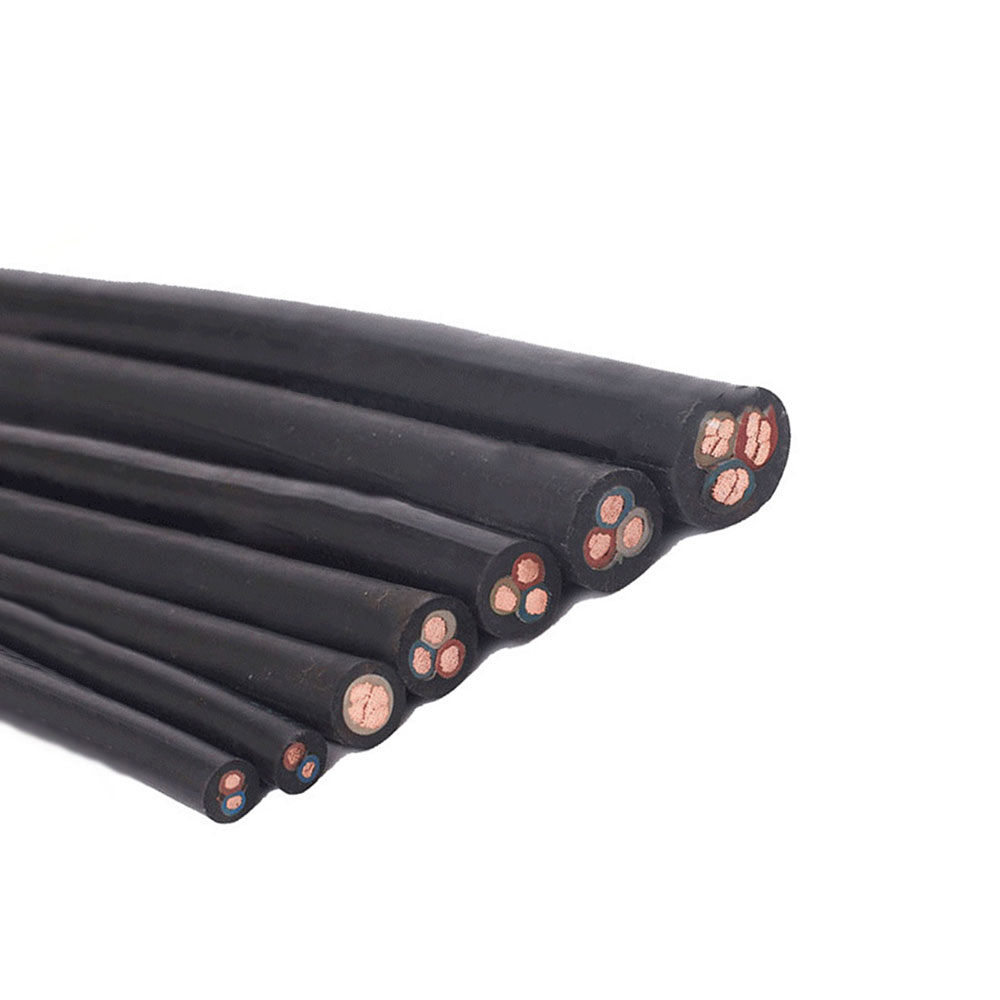

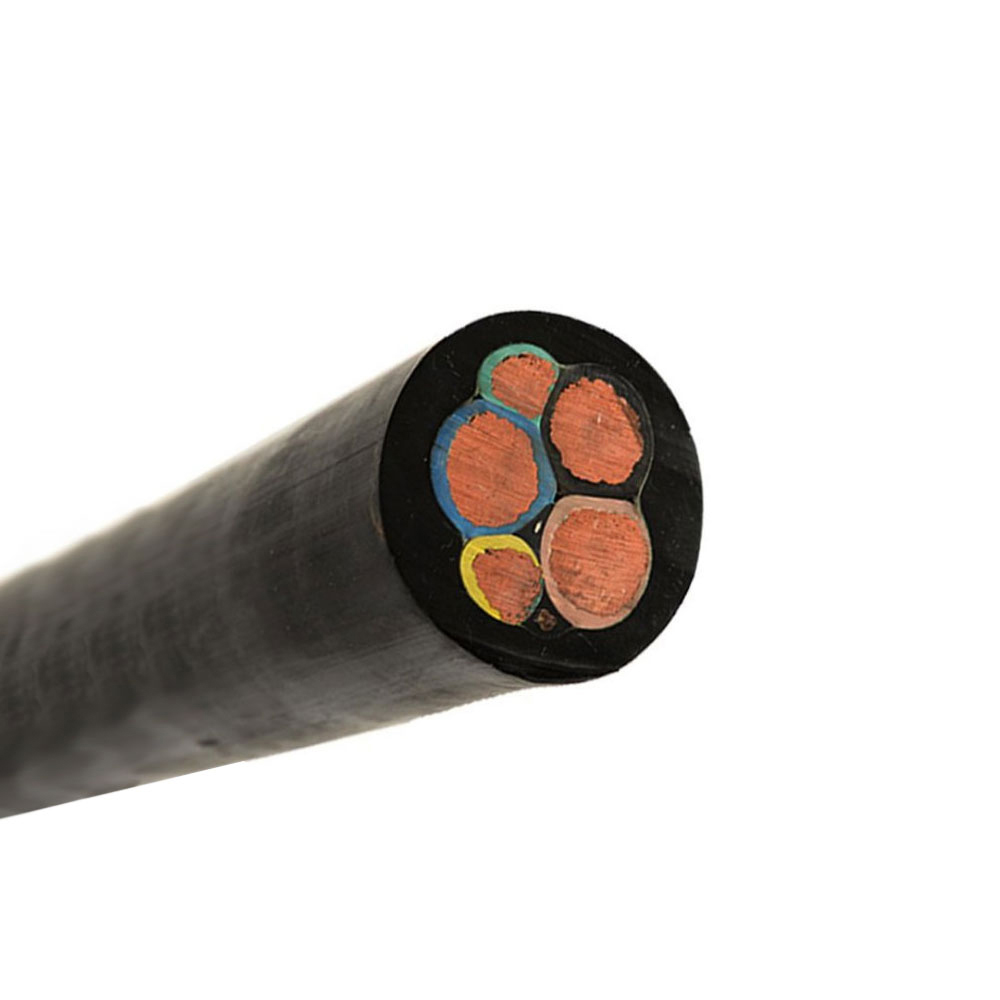

H05RN-F UV protection CE-Certified Cable

H05RN-F Cable Characteristics
Model Identification: H – harmonized standard, 05 – 300/500V rated voltage, R – natural or synthetic rubber insulation, N – chloroprene rubber sheathing, F – flat structure
Rated Voltage: 300/500V
Conductor Material: Multi-strand fine-stranded soft copper conductors arranged in parallel
Insulation Material: Rubber (natural or synthetic rubber) insulation
Sheathing Material: Chloroprene rubber (CR) sheathing
Structural Features: Flat, parallel two-core structure, rubber material provides high elasticity and flexibility
Temperature Rating: Long-term operating temperature of 60°C
Weather Resistance Characteristics: Sheathing resists UV, ozone, light oil stains, and chemical corrosion
Certification Standards: Compliant with harmonized standards such as VDE 0282 and HD 22.13; passes CE certification

Request Quote Contact Us

Product Details
Product Parameters

Product Details

H05RN-F Cable Advantages
High Elasticity of Rubber Material: Both insulation and sheathing are rubber, offering excellent bending performance and strong resistance to mechanical fatigue
Good Outdoor Weather Resistance: Chloroprene rubber sheathing resists UV and ozone, suitable for outdoor and semi-outdoor environments
Flat Structure for Easy Installation: Parallel conductor arrangement saves space, facilitating installation in narrow or flat channels
Resistance to Oil Stains and Chemical Corrosion: Sheathing has a certain tolerance to light oil stains and acid-base environments
European Outdoor Standard Cable: Complies with EU harmonized standards, suitable for compliant use in European outdoor electrical equipment

H05RN-F Cable Selling Points
EU Outdoor Flat Rubber Cable: Specifically designed flat rubber cable for European outdoor mobile equipment and temporary power usage scenarios
CE-Certified Outdoor Flat Cable: Complies with the Low Voltage Directive and outdoor usage requirements, eligible for EU market access
Plug-and-Play Outdoor Solution: Rubber material offers excellent weather resistance, can be directly used in outdoor damp and sunny environments
Economical Outdoor Flat Connection: Provides low-cost rubber power cords for garden tools and outdoor lighting exported to Europe
Stable Specifications and Fast Supply: Common cross-sections (0.75–2.5 mm²) are well-stocked, supporting urgent project needs

H05RN-F Cable Application Scope
Power Cords for Outdoor Power Tools: Outdoor rubber power cords for European market garden tools such as lawn mowers and hedge trimmers
Temporary Power Connections for Events: Flat rubber extension cords for temporary power supply at outdoor exhibitions and markets
Wiring for Outdoor Lighting Equipment: Outdoor flat rubber power supply lines for garden lights and landscape lighting
Outdoor Use of Mobile Equipment: Rubber power connections for equipment such as outdoor cleaning machines and mobile water pumps
Repair of Outdoor Equipment in Europe: Specialized rubber flat cables for outdoor appliance repairs, outdoor replacement wires in EU regions
Compliance Certifications: CE, ROHS
