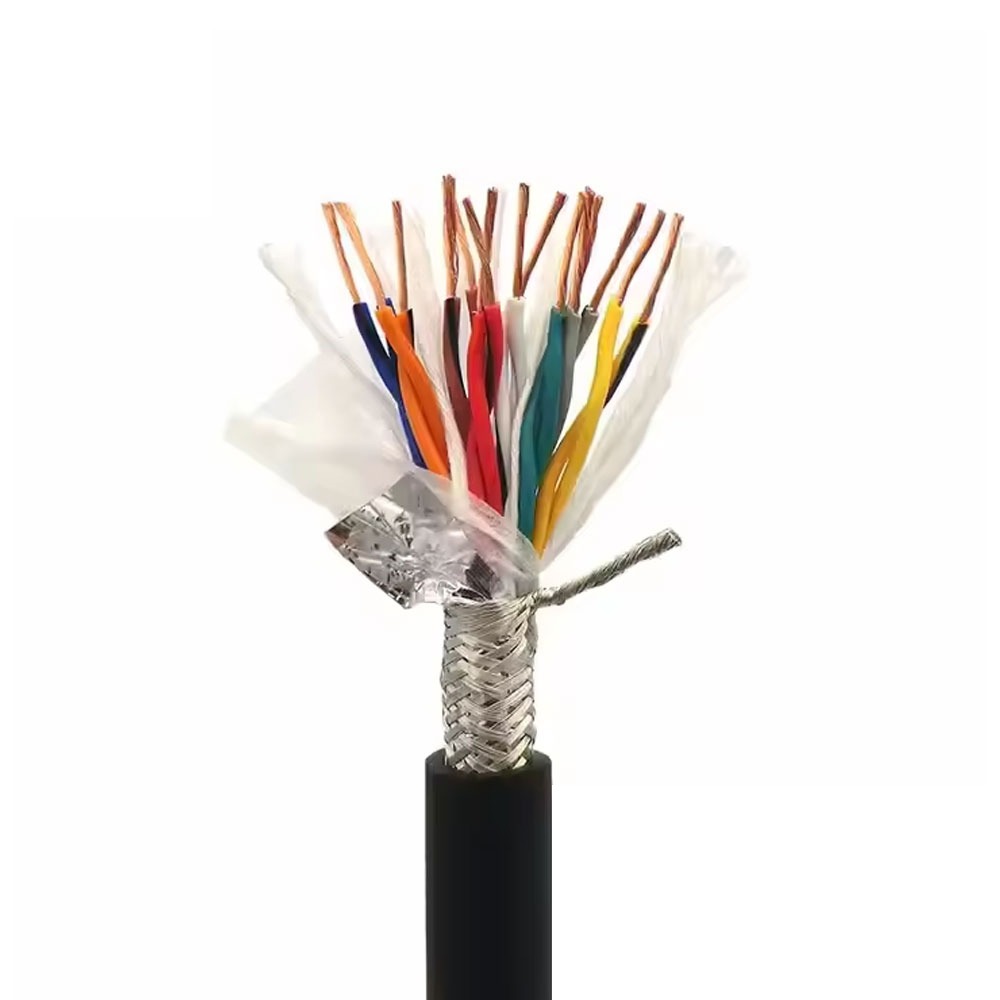

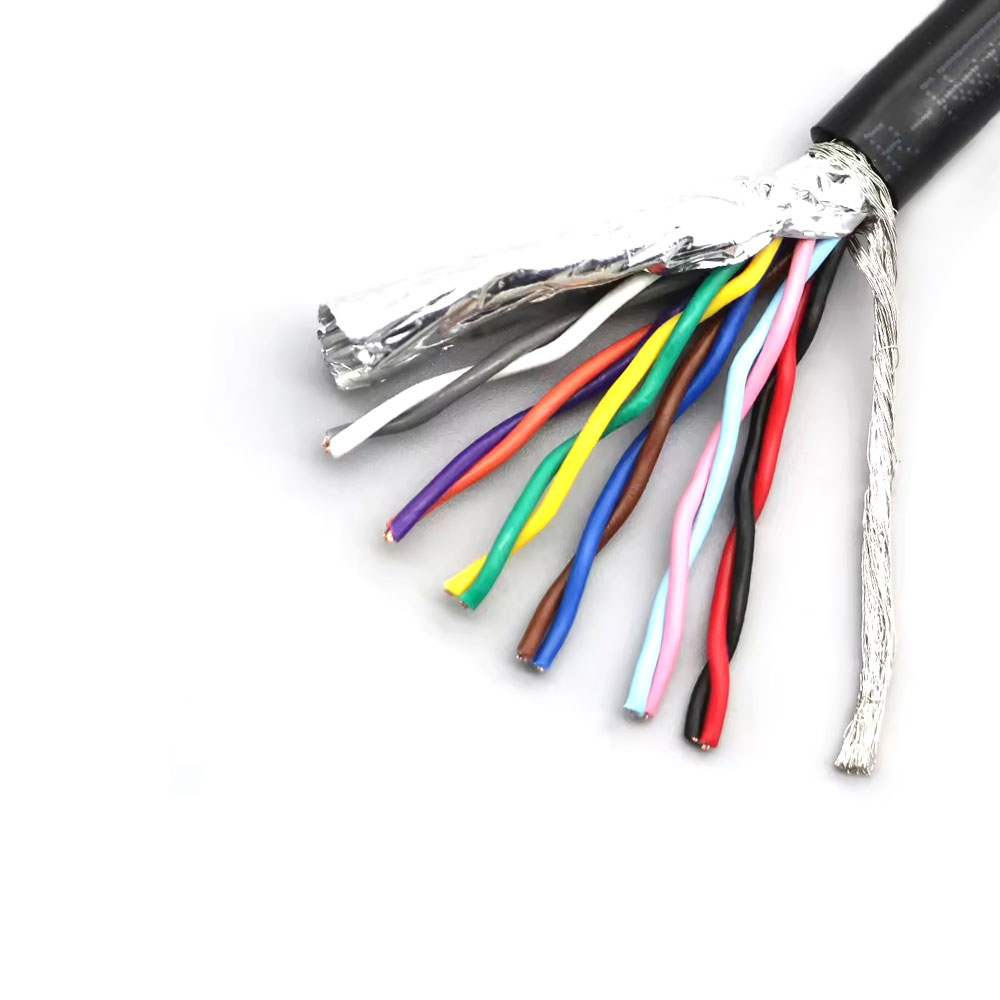

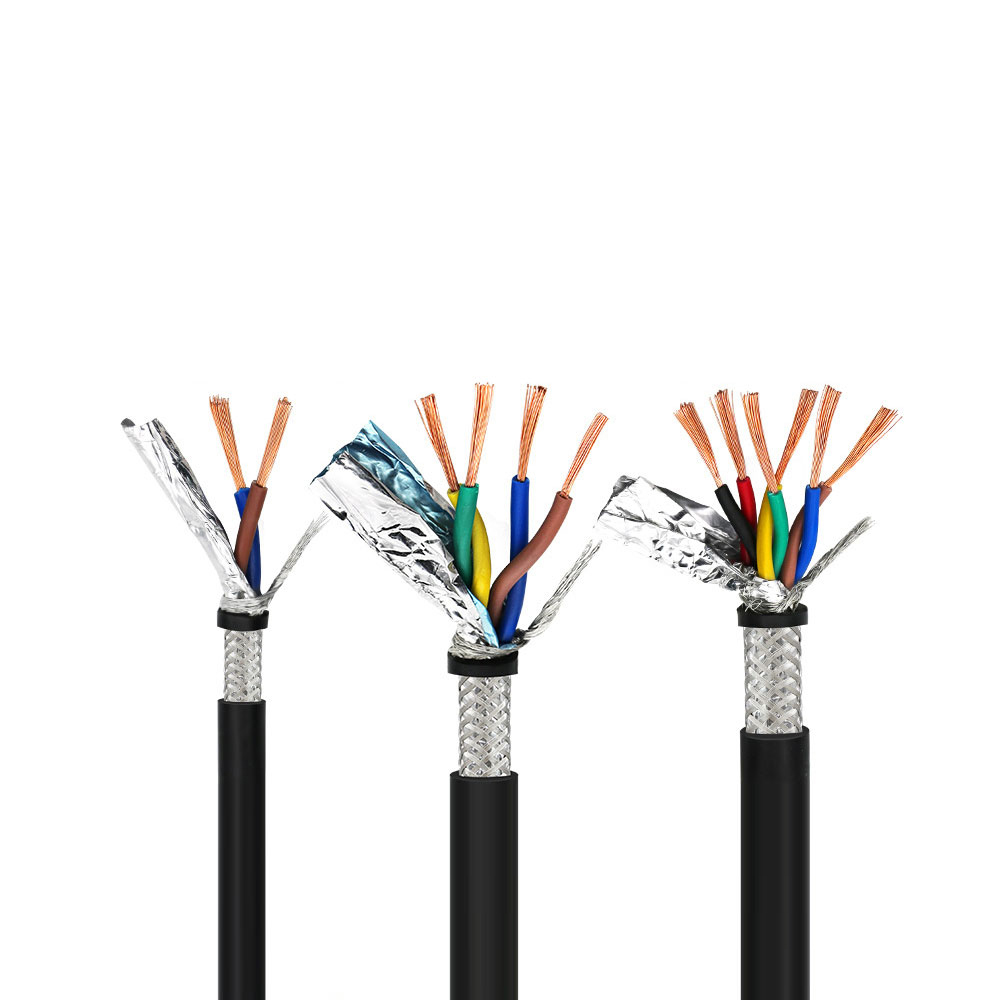

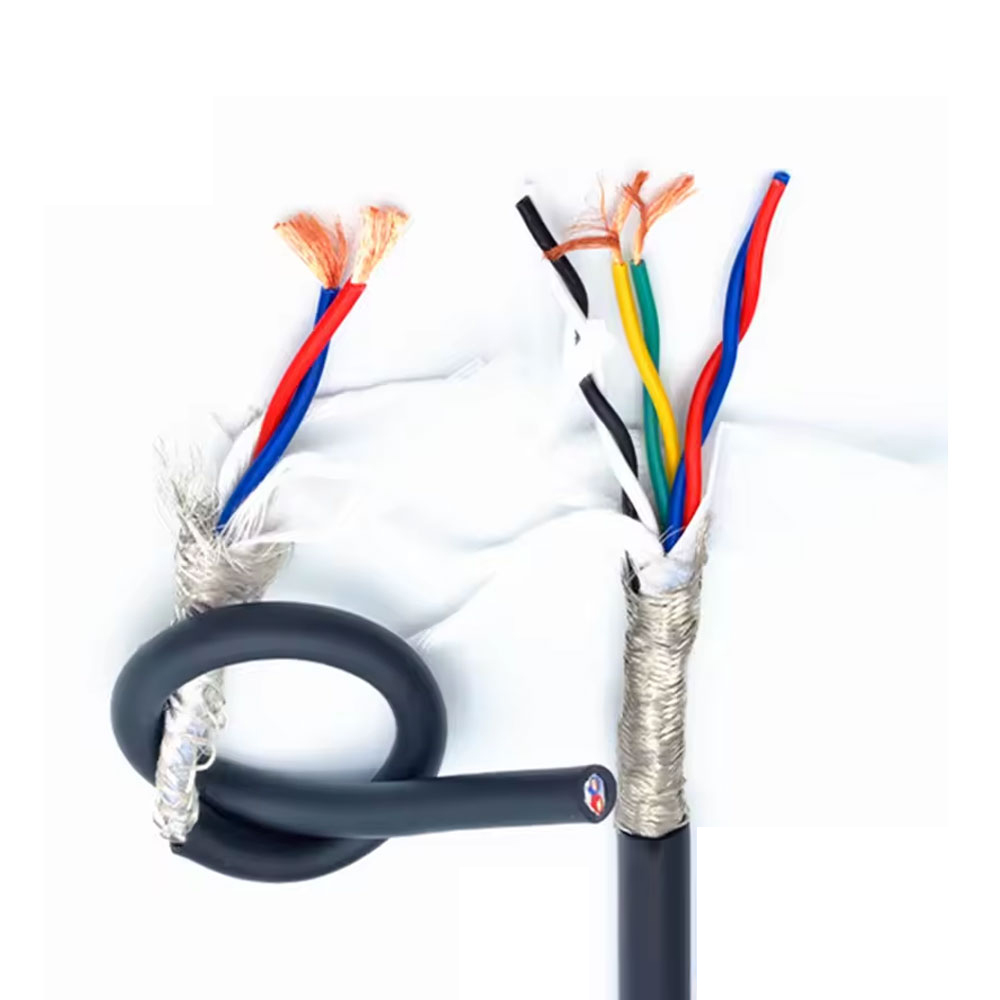

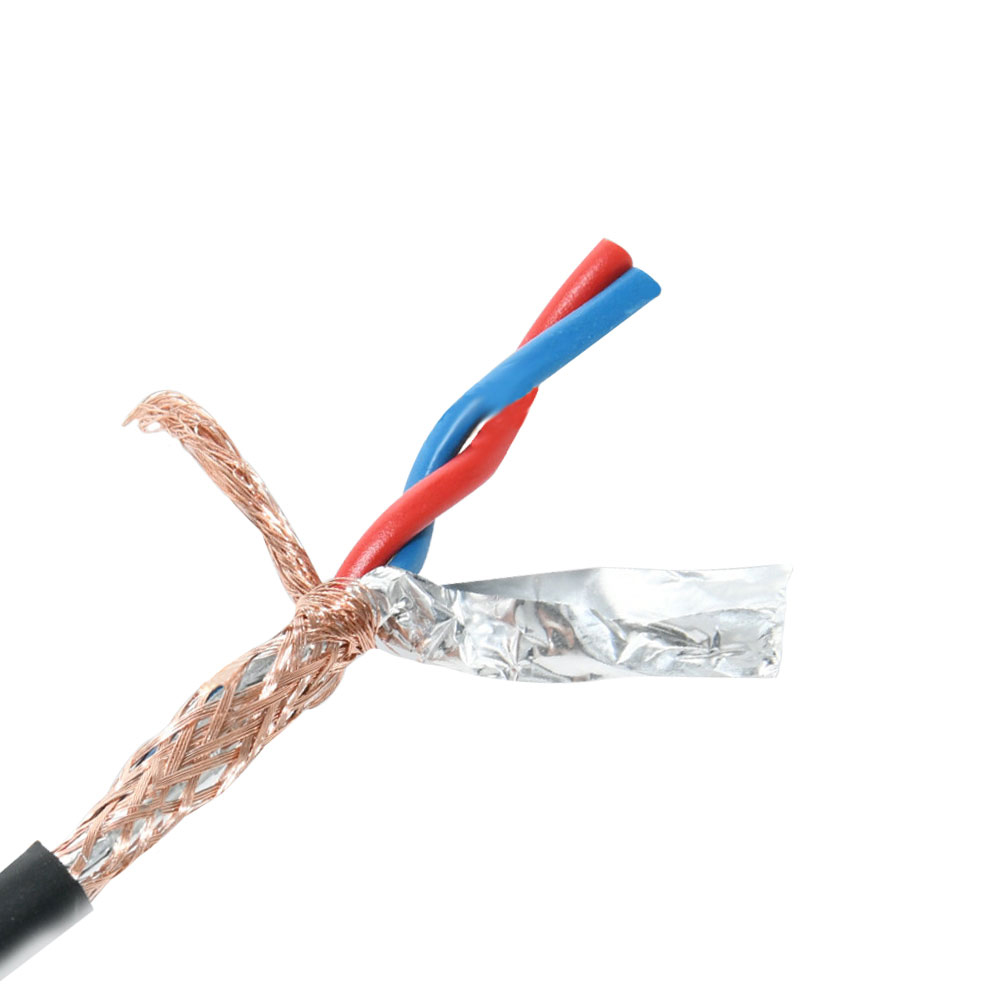

WDZB1-RYJYSP WDZB1N-RYJYSP Building Wire

WDZB1-RYJYSP/WDZB1N-RYJYSP Cable Characteristics
Model Identification: WDZB1—Halogen-free, low-smoke, flame-retardant Class B1; RYJYSP indicates irradiated cross-linked polyethylene insulation and sheathing with shielding and twisted-pair structure; N indicates fire-resistant type
Rated Voltage: 300/500V
Conductor Material: Multi-strand fine-stranded soft copper conductor in twisted-pair structure
Insulation Material: Irradiated cross-linked polyethylene (XLPE) insulation
Sheathing Material: Irradiated cross-linked polyethylene (XLPE) sheathing
Shielding Structure: Individual aluminum foil shielding for each twisted pair, plus overall copper wire braided shielding
Twisted-Pair Structure: Conductors twisted in pairs to reduce crosstalk and external interference
Flame-Retardant Grade: Class B1 flame retardant (according to GB 31247 standard, equivalent to EU standard Class B1ca)
Fire Resistance Performance: Type N meets the 750°C/90-minute fire resistance test (according to GB/T 19666 standard)
Temperature Rating: Long-term operating temperature of 90°C
Environmental Characteristics: Halogen-free, low-smoke, low-toxicity; smoke toxicity during combustion complies with GA 306 standard
Certification Standards: Compliant with GB/T 19666 and GB 31247; passes CCC certification

Request Quote Contact Us

Product Details
Product Parameters

Product Details

WDZB1-RYJYSP/WDZB1N-RYJYSP Cable Advantages
Quadruple Anti-Interference Design: Twisted-pair structure, independent pair shielding, overall shielding, and Class B1 flame retardancy and fire resistance comprehensively defend against electromagnetic and fire threats
EU-Standard Flame Retardancy and Fire Resistance: Class B1 flame retardant plus fire resistance meets EU CPR Regulation Class B1ca level, with high international recognition
High Environmental Safety Assurance: Halogen-free, low-smoke characteristics reduce secondary fire hazards, protecting personnel's escape safety and the environment
Flexible and Easy to Wire: Fine-stranded twisted-pair soft conductor structure facilitates bending and installation in complex paths
Strong Weather Resistance: Irradiated cross-linked sheathing resists UV and moisture, suitable for harsh indoor and outdoor environments
Long-Term Stability and Reliability: Irradiated cross-linked insulation resists aging; multiple shielding structures ensure signal purity and stability

WDZB1-RYJYSP/WDZB1N-RYJYSP Cable Selling Points
Class B1 High-Shielding Fire-Resistant Signal Cable: Provides a complete solution for signal transmission in strong interference environments requiring fire resistance in international high-end projects
Core Signal Cable for Foreign-Related Critical Facilities: Suitable for high-reliability signal transmission scenarios such as international data centers, foreign-related hospital operating rooms, and multinational laboratories
Fully Irradiated Cross-Linked Quadruple Protection Design: Dual cross-linking of insulation and sheathing resists aging; twisted-pair plus double shielding plus flame retardancy and fire resistance achieves comprehensive protection
Suitable for Harsh Environment International Projects: Weather-resistant sheathing supports complex international engineering environments such as outdoors, tunnels, and cross-border underground utility corridors
Comprehensive Class B1 Fire Protection and Anti-Interference Solution: Class B1 flame retardant plus fire-resistant type covers high-end signal transmission needs in commercial, transportation, industrial, and other fields

WDZB1-RYJYSP/WDZB1N-RYJYSP Cable Application Scope
Signal Transmission in International High-Interference Environments: Multinational substation monitoring, foreign-funded factory automation buses, international port equipment sensor signals
Low-Voltage Systems for Foreign-Related Critical Facilities: International data center server communication, foreign-related hospital life monitoring systems, multinational R&D laboratory data lines
Cross-Border Complex Environment Signal Projects: International tunnel monitoring networks, cross-border utility corridor sensing systems, offshore platform communication lines
Emergency and Fire Signal Systems for International Projects: Multinational enterprise fire alarm buses, international venue emergency broadcast control, embassy district fire feedback signals
Intelligent International Projects for Green Certification: Building automation signals for LEED Platinum-certified projects, international smart campus data buses, multinational energy management lines
Compliance Certifications: CCC/ROHS; Class B1 flame retardant passes GB 31247 test (equivalent to EN 50399); fire-resistant type passes GB/T 19666 test

Product Parameters

Conductor	Class 5 or higher annealed copper conductor (ultra-fine copper wires, extremely flexible), with a small cross-section ranging from 0.5 mm² to 2.5 mm² (common), optimized specifically for signal transmission.
Pair Structure	Insulated cores are precisely twisted in pairs with a fixed pitch, forming the physical foundation for signal integrity.
Insulation Material	Cross-linked polyethylene (XLPE), meeting Class B1 requirements for halogen-free, low-smoke, and flame-retardant properties.
Pair Shielding	Typically, an aluminum-plastic composite tape is wrapped around each twisted pair as pair shielding to prevent alien crosstalk between pairs.
Overall Shielding	A braided copper mesh or aluminum-plastic composite tape with a drain wire is used as overall shielding around all pairs to resist external interference.
Sheath Material	Halogen-free, low-smoke, flame-retardant polyolefin sheath, meeting overall Class B1 performance criteria.
Rated Voltage	300/300V, clearly indicating its signal transmission attributes.
Long-Term Operating Temperature	90°C
Combustion Performance Rating	Class B1 – The entire cable must pass all tests specified in GB 31247.
Halogen-Free and Low-Smoke	The entire structure complies with GB/T 17650.2 and GB/T 17651.2 (light transmittance ≥ 80%).
Heat Release and Toxicity	Meets Class B1 limits for THR and pHRR, as well as Class t1 toxicity requirements.
Burning Droplets	None.
Characteristic Impedance	Stable values, such as 100Ω ±15%, suitable for high-speed differential transmission.
Minimum Bending Radius	≥ 15×D (due to its extremely complex structure, bending requirements are particularly strict).
Shielding Effectiveness	High shielding attenuation at high frequencies (e.g., >90 dB @ 1 GHz), with excellent near-end crosstalk (NEXT) and attenuation-to-crosstalk ratio (ACR) performance.
Transmission Bandwidth	High, capable of supporting digital signal transmission at rates such as 100 Mbps, 1 Gbps, and beyond.
WDZB1N-RYJYSP	Fire resistance
