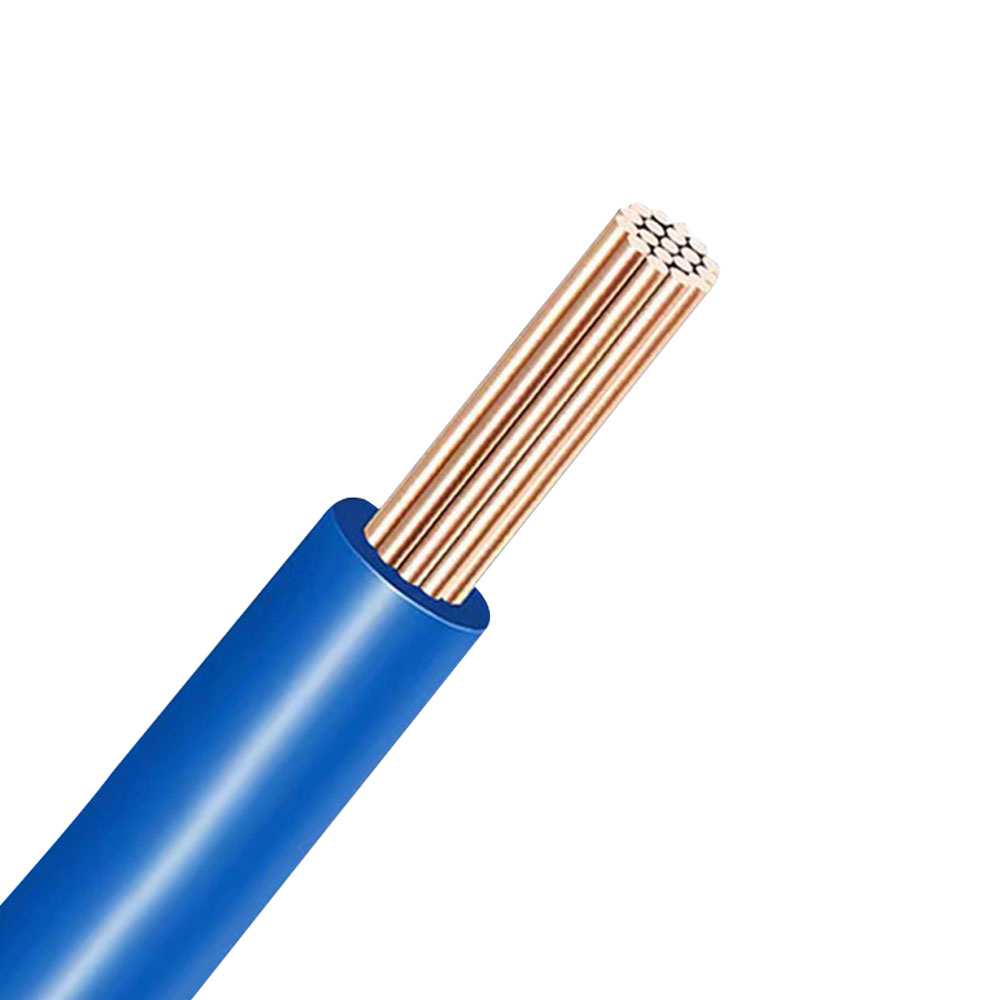

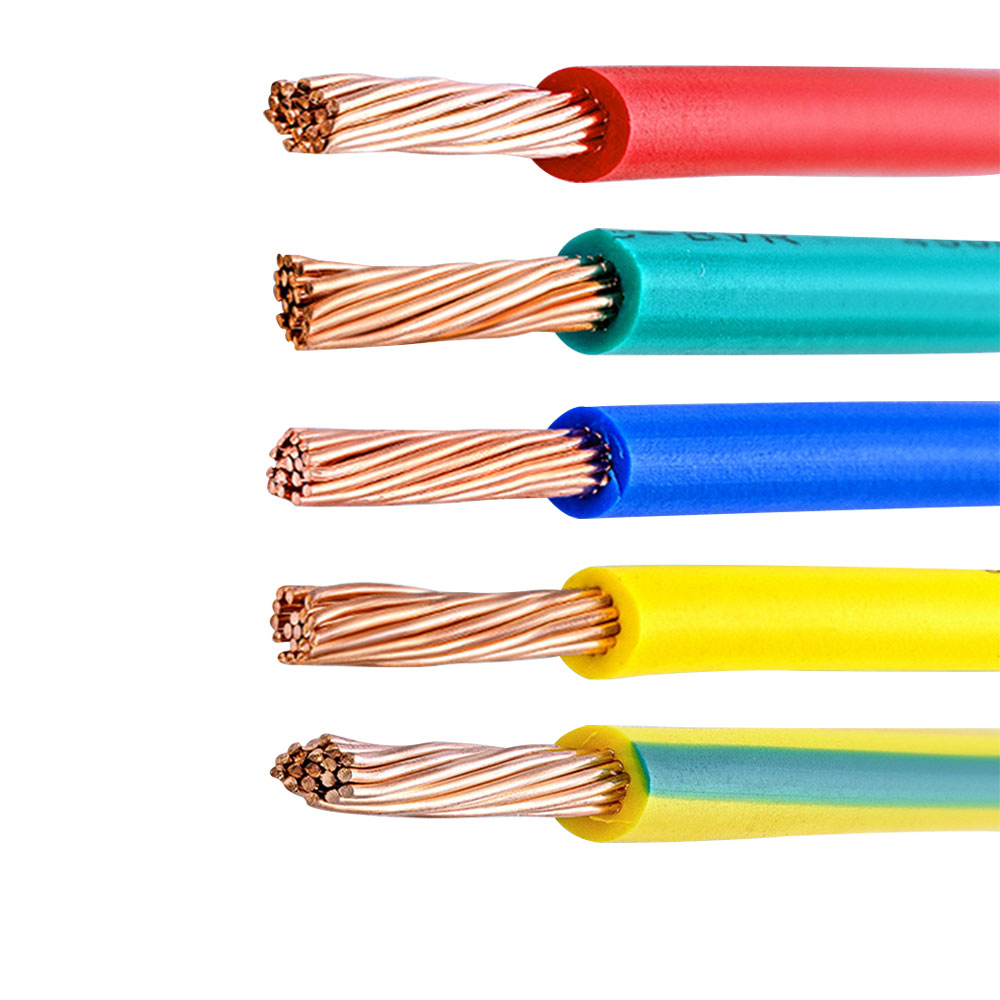

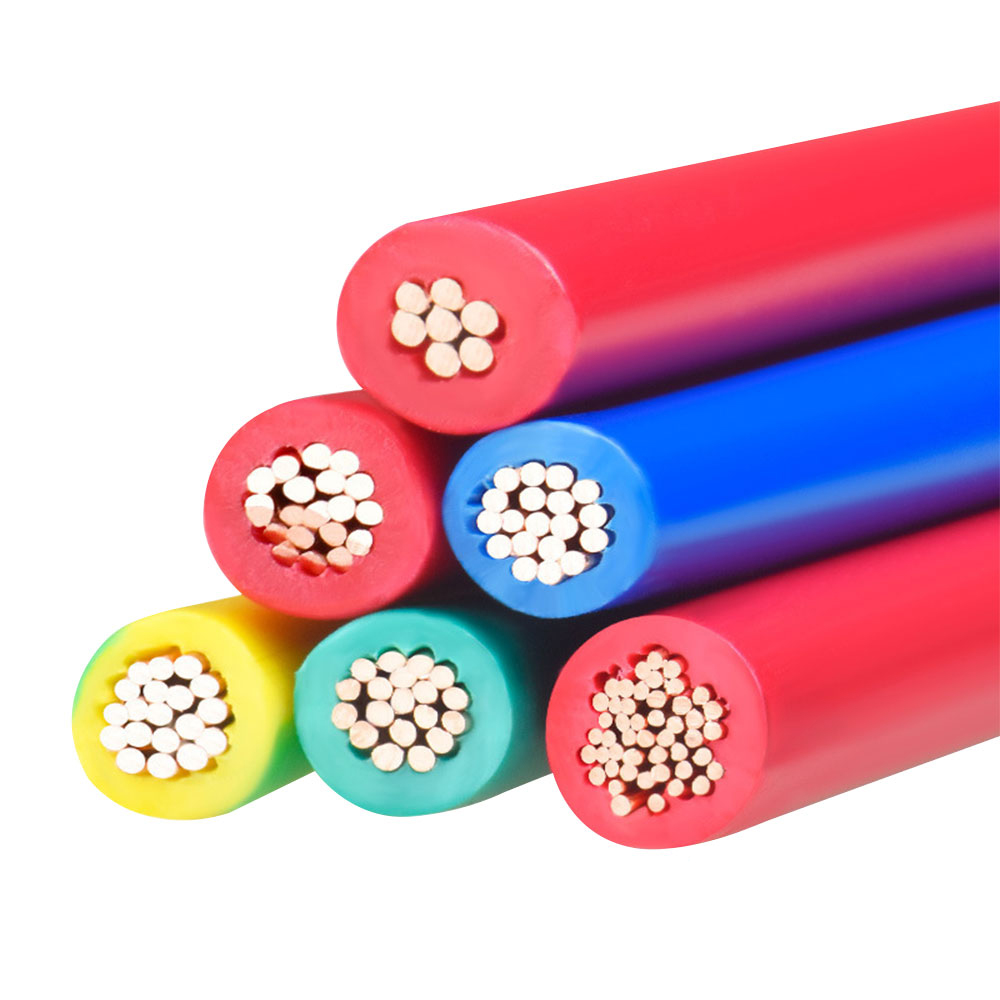

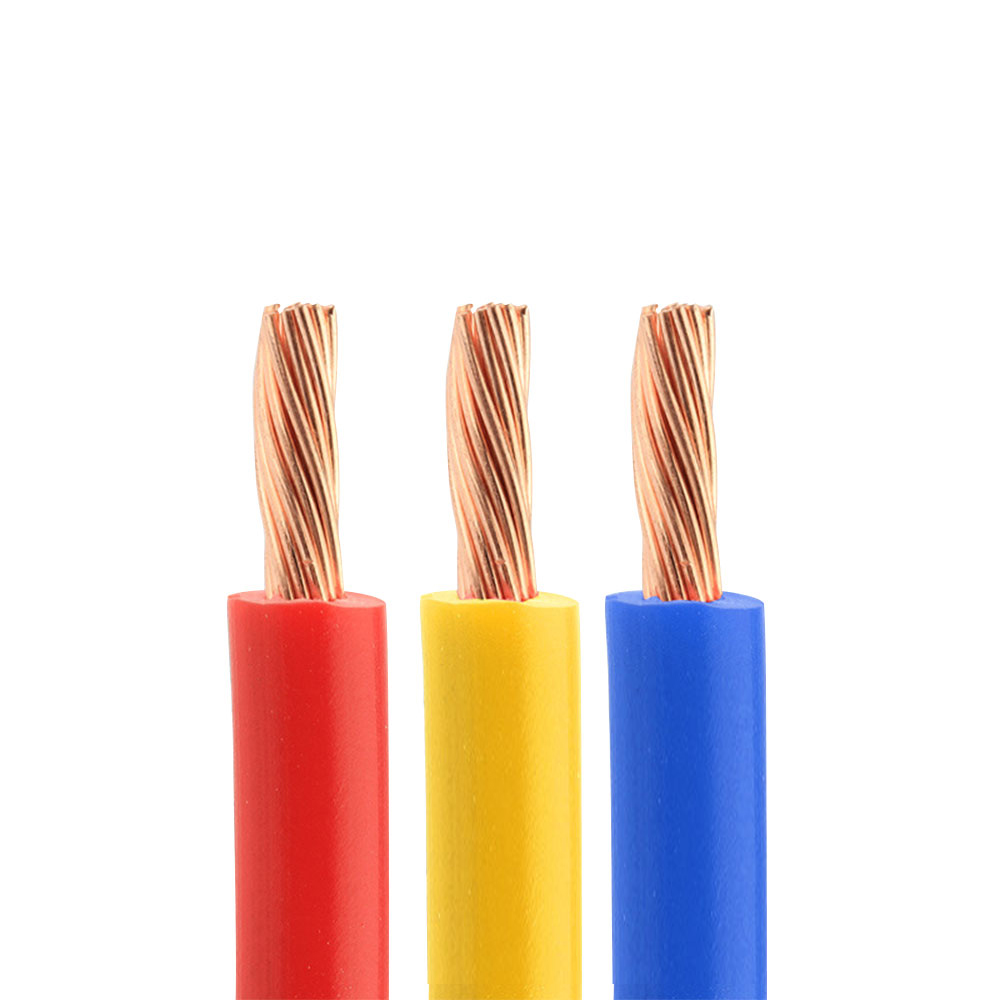

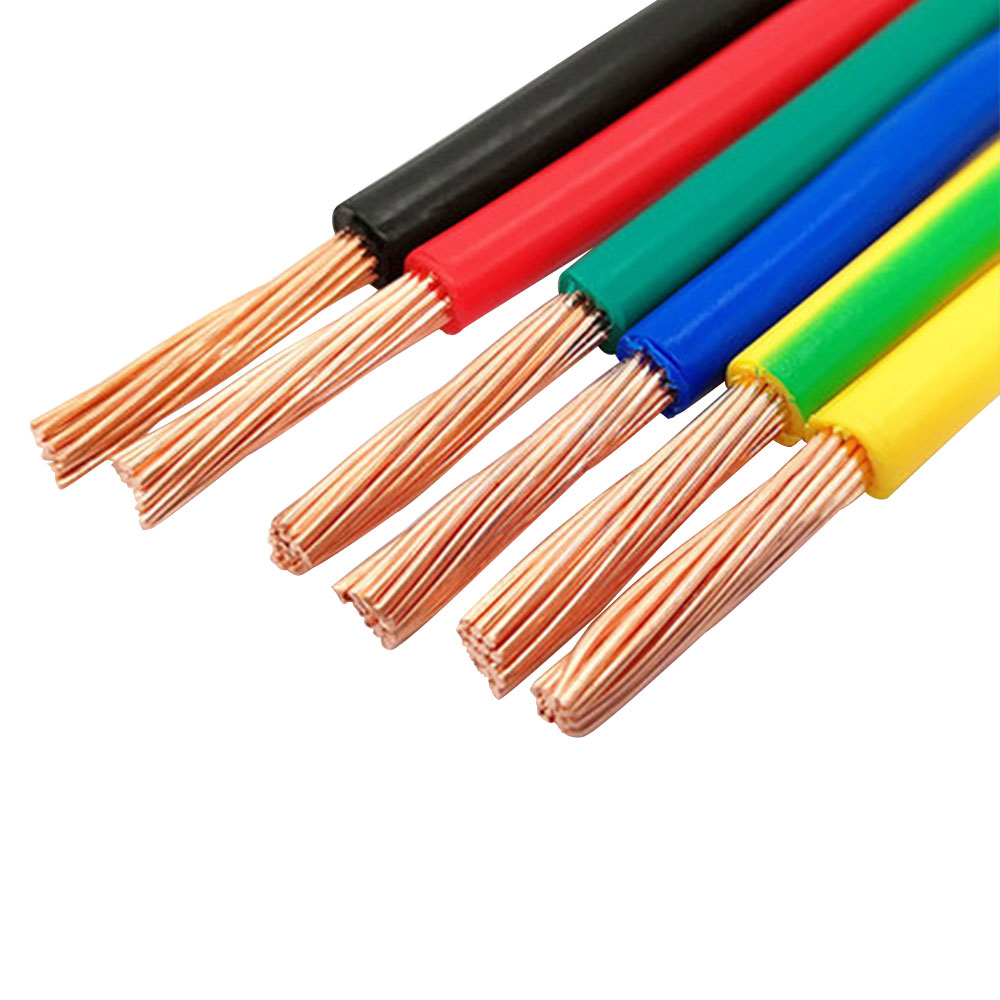

WDZ(A/B/C/D)-BYJ WDZ(A/B/C/D)N-BYJ Building Wire

WDZ(A/B/C/D)-BYJ/WDZ(A/B/C/D)N-BYJ Cable Advantages
High-Level Fire Safety: Grade A flame-retardant provides the highest level of flame spread suppression
Environmental and Health Protection: Halogen-free, low-smoke characteristics reduce secondary fire hazards and ensure personnel escape safety
Excellent Electrical Performance: Cross-linked polyethylene insulation offers high temperature resistance (90°C), high current-carrying capacity, and long service life
Reliable Fire Resistance Performance: Type N maintains circuit integrity during fires, buying time for critical equipment power supply
Strong Adaptability: Different flame-retardant grades meet the requirements of various building risk areas

WDZ(A/B/C/D)-BYJ/WDZ(A/B/C/D)N-BYJ Cable Selling Points
Mandatory Cable for High-End Buildings: Grade A flame-retardant is essential for densely populated places such as super high-rises, subways, and airports
Benchmark Product for Environmental Safety: Halogen-free, low-smoke characteristics meet green building certification requirements (LEED/BREEAM)
Comprehensive Fire Protection Solution: Flame-retardant grades A to D and fire-resistant types cover all building fire protection needs
Long Lifespan and Low Maintenance: Cross-linked polyethylene insulation resists aging, with a design lifespan of over 30 years
Complete Compliance Assurance: Complies with the latest national fire protection standards, with complete supporting test reports

WDZ(A/B/C/D)-BYJ/WDZ(A/B/C/D)N-BYJ Cable Application Scope
Core Areas of Public Buildings: Airport terminals, high-speed railway stations, subway stations, hospital outpatient halls
Densely Populated Places: Commercial complexes, exhibition centers, stadiums, school teaching buildings
Special Risk Areas: Underground spaces, high-rise building shafts, substations, data centers
Fire Protection Guarantee Circuits: Fire pump rooms, smoke exhaust rooms, emergency lighting, fire alarm systems
Green Building Projects: LEED/BREEAM certified projects, star-rated hotels, high-end residences
Compliance Certifications: CCC/ROHS

Conductor: Annealed copper conductor (Class 1 or Class 2)
Cross-sectional range:1.5 mm² to 400 mm² (common)
Insulation material: Cross-linked polyethylene (XLPE)
Rated voltage:** 450/750 V
Long-term allowable operating temperature:90°C (significantly higher than the 70°C of ordinary BV wires)
Short-circuit temperature:Maximum 250°C (duration ≤ 5 seconds)
Installation temperature: ≥ 0°C
Minimum bending radius during installation: ≥ 6 × D (cable outer diameter) (higher requirement compared to the 4D for PVC insulation)
Flame retardant rating: Classes A, B, C, D, requiring bundle flame tests according to standards such as GB/T 18380.33-2008, assessing flame spread height and self-extinguishing time.
Halogen-free: Complies with GB/T 17650, with released gas pH ≥ 4.3 and conductivity ≤ 10 μS/mm during combustion, indicating low corrosiveness.
Low-smoke: Complies with GB/T 17651, with light transmittance ≥ 60% (or 80%) during combustion, indicating sparse smoke.
Insulation resistance at 90°C:≥ 0.010 MΩ·km
WDZ(A/B/C/D)N-BYJ: Fire resistance.
