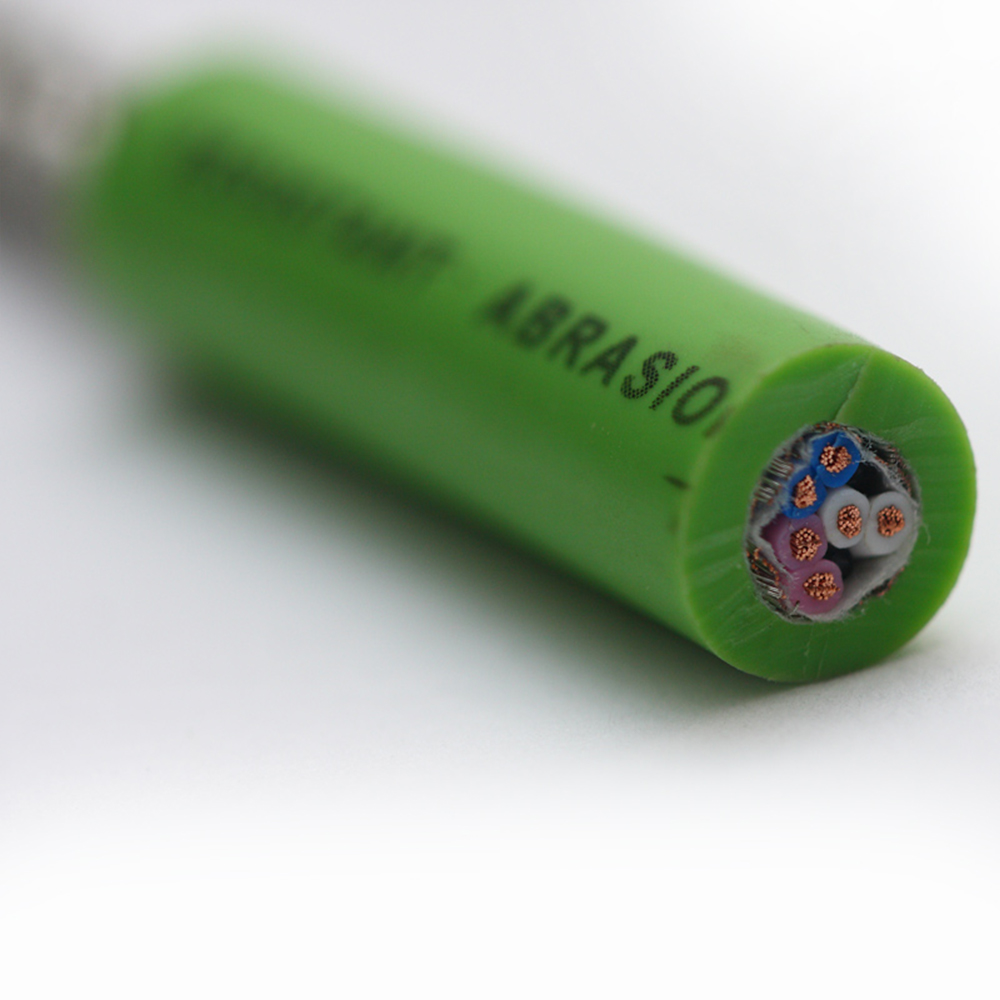

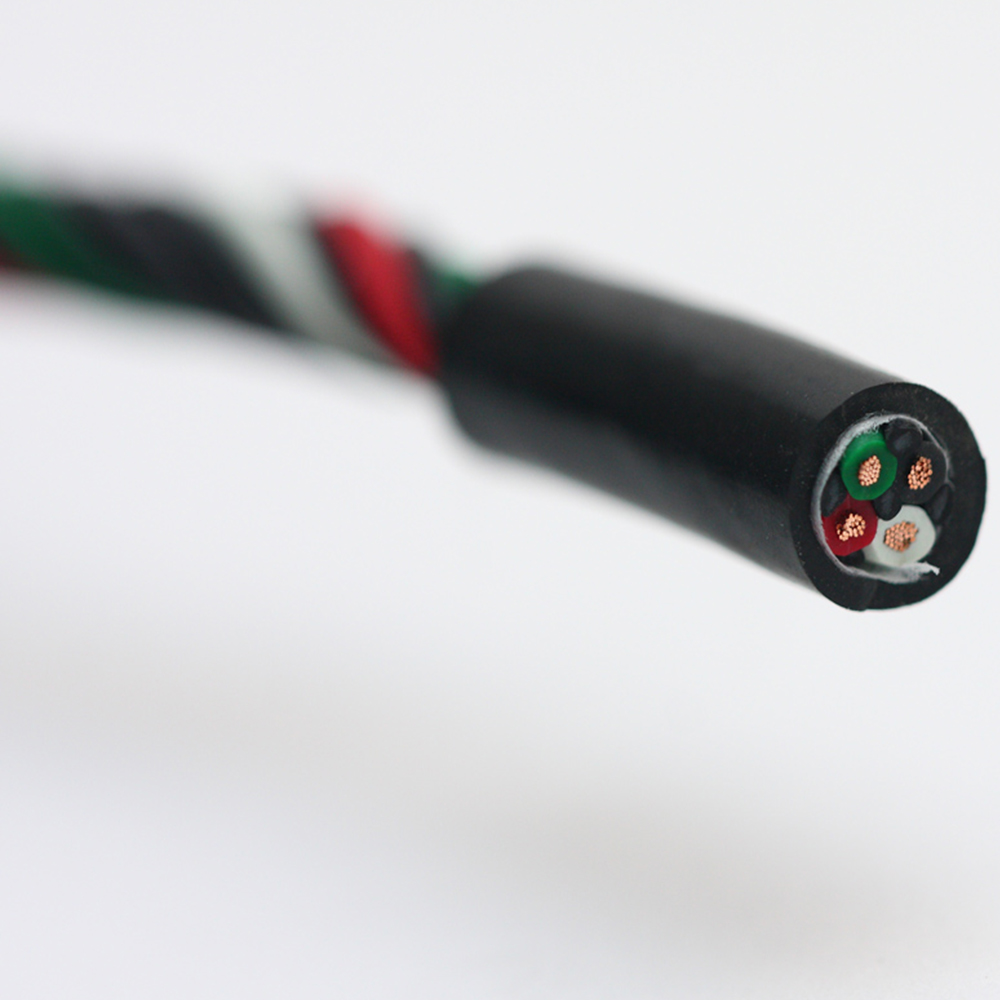

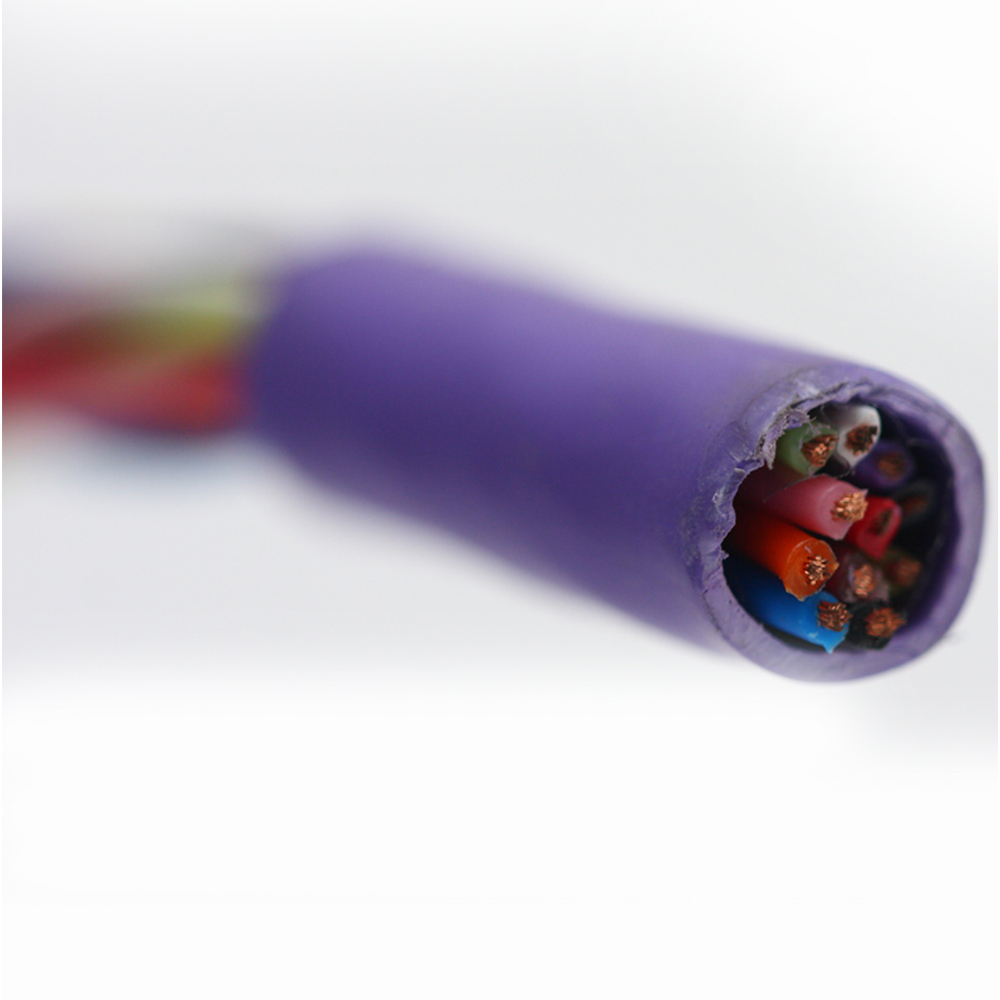

JOR-256 PUR Robot Cable

JOR-256 PUR Robot Cable Advantages
High-performance PUR Sheathing: Oil-resistant, hydrolysis-resistant, and wear-resistant, suitable for industrial oily environments
Highly Flexible Dynamic Design: Optimized twisting pitch, passes 10 million cycles of cable carrier bending tests
Strong Shielding for Anti-Interference: High-density braided shielding effectively suppresses electromagnetic interference, ensuring stable signal transmission
Extreme Temperature Resistance: Wide temperature range of -40°C to 90°C, adaptable to harsh working conditions
Easy Installation and Maintenance: Flexible structure facilitates cable carrier installation, and the sheathing is tear-resistant and easy to strip

JOR-256 PUR Robot Cable Selling Points
Dedicated Cable for Industrial Robots: Optimized for high-dynamic scenarios such as six-axis robots and SCARA robots
High Reliability for Cable Carrier Systems: Passes TÜV 20 million bending cycle certification, ensuring long-term stable operation
Oil Contamination Resistance Solution: PUR sheathing tolerates common industrial oils, reducing maintenance frequency
High Electromagnetic Compatibility: Shielding structure meets anti-interference requirements for servo systems and encoder signals
Plug-and-Play Compatibility: Standard outer diameter compatible with mainstream cable carriers and connectors

JOR-256 PUR Robot Cable Application Scope
Wiring for Industrial Robot Joints: Power and control signal transmission inside six-axis robot bodies
Cable Carrier Systems for Automated Production Lines: Dynamic power supply for high-speed gantry manipulators and material conveying lines
Servo Motor and Encoder Connections: Integrated transmission of power and feedback signals for servo drive systems
Moving Parts of CNC Machine Tools: Tool magazine and spindle moving cables in machining centers
Dynamic Wiring for Special Equipment: Power supply for motion units in laser cutting machines and 3D printing equipment

Conductor: Fine oxygen-free copper wire (multi-strand, exceeding Class 6 stranding), cross-section typically 0.25 mm² to 25 mm² (or larger).
Insulation: Special thermoplastic elastomer (TPE) or cross-linked polyethylene (XLPE), color-coded.
Core Structure: Multi-core integration (e.g., 4-core, 8-core, 12-core, 19-core, etc.), including power, control, signal, bus, and optional fiber optic units; cores often use twisted pair/star-quad configuration.
Inner Sheath/Filling: High-strength, low-friction TPE/PUR inner sheath, securing cores and reducing internal stress.
Outer Sheath: Abrasion-resistant polyurethane (PUR), optimized thickness, tear-resistant, oil-resistant, hydrolysis-resistant.
Rated Voltage:300/500V or 0.6/1kV (depending on model).
Test Voltage: 1500V to 3500V (according to voltage rating).
Bending Radius: Mobile installation: 7.5 × D to 10 × D (D: cable outer diameter).
Temperature Range:Mobile: -5°C to +90°C; Fixed: -30°C to +90°C.
Flame Retardant Rating: Complies with IEC 60332-1-2 (or higher).
Oil Resistance: Passes IEC 60811-2-1 (resistant to mineral oil, grease).
Hydrolysis/Microbial Resistance:** Suitable for humid environments (some models).
