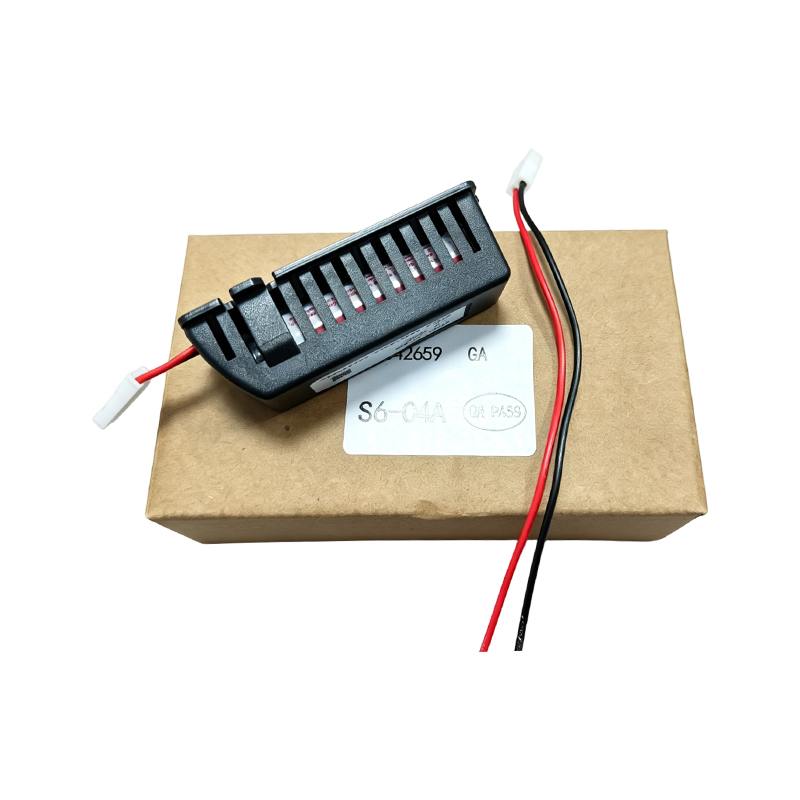

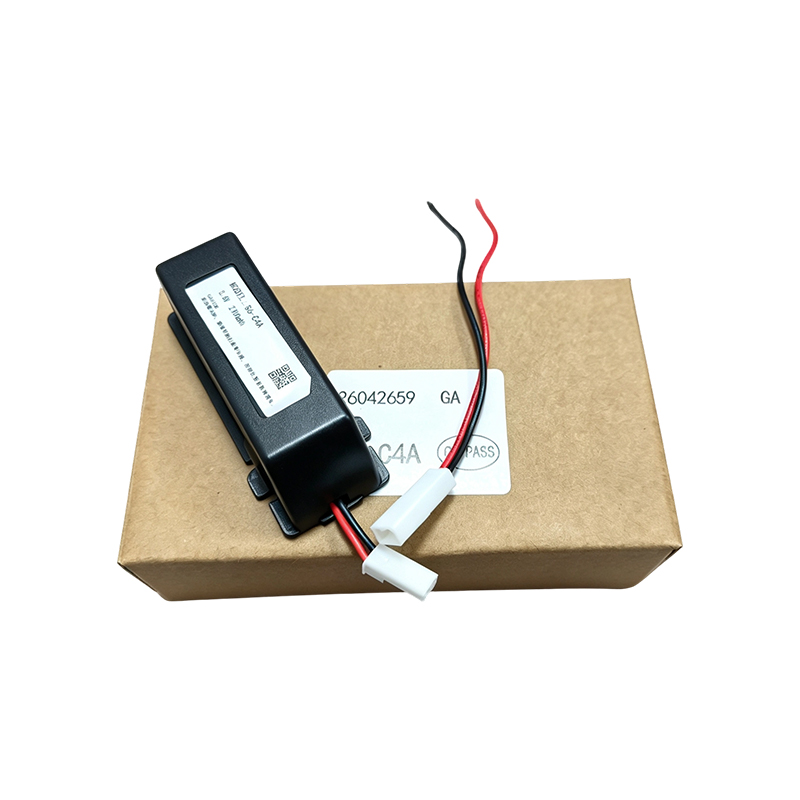

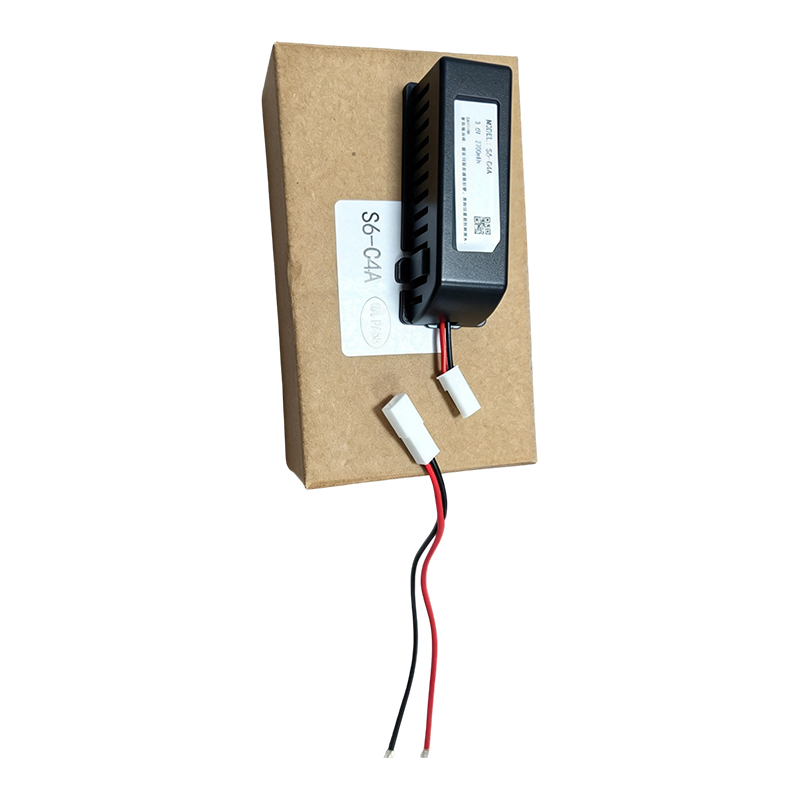

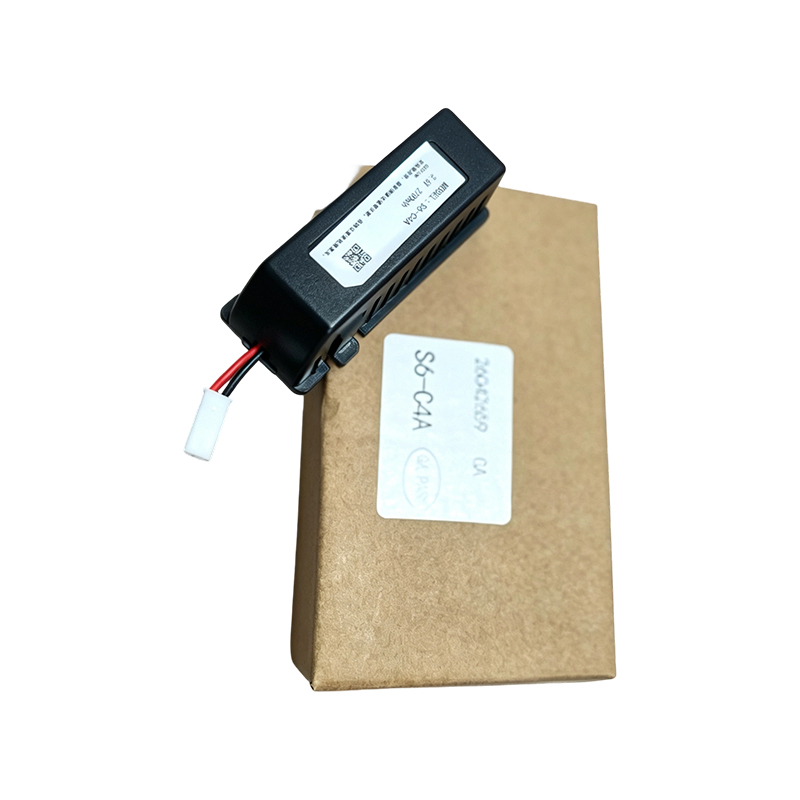

S6-C4A Servo Encoder Backup Battery Pack

Stable and Reliable Voltage Retention: The battery pack is precisely assembled from multiple series-connected nickel-metal hydride cells, with a nominal voltage of 3.6V and a nominal capacity of 2700mAh. It continuously powers the absolute encoder when the drive's main power is off, ensuring motor position data is retained and eliminating the need to re-home the axis after power-up, effectively improving production efficiency.

Premium Housing Material Design: The housing is molded from black, high-strength ABS engineering plastic in one piece, featuring slotted ventilation ribs on the surface that are both aesthetically clean and effective at dissipating heat from the internal cells, extending battery service life. Latching tabs on both sides allow secure mounting inside drives or electrical cabinets, preventing loosening or dislodgement.

Standardized Interface Design: The product is equipped with a white 2-pin connector and red/black lead wires, using an interface specification compatible with mainstream servo drive battery ports. Users can plug it in directly upon receipt without additional wiring or modification, significantly shortening installation and commissioning time.

Strict Quality Control and Safety Certification: Every batch of battery packs undergoes capacity testing, internal resistance testing, and safety performance testing prior to shipment. Each pack carries a QA PASS quality mark and a unique traceability QR code, ensuring every unit meets the relevant safety standards and provides customers with a safe and dependable backup power source.

Flexible Capacity Options: The product is available in multiple capacity specifications (such as 2700mAh and 1100mAh), allowing users to select the appropriate version based on their drive model and required backup duration for different application scenarios.

Product Selling Points

Dedicated Backup Battery for Servo Systems: Custom-developed for servo drive systems requiring position retention on absolute encoders during power loss, serving as a standard replacement part for CNC machine tools, industrial robots, and similar equipment.

Plug-and-Play, No Modification Required: The standard 2-pin interface design allows users to connect directly to the drive's battery compartment upon receipt, without needing professional electrical rework.

Ventilated Structure Extends Service Life: The slotted heat-dissipation design effectively lowers the operating temperature of the battery pack, slowing capacity degradation and extending overall product lifespan.

Traceable Quality: Every battery pack carries a unique identification code and QA PASS certification mark, having passed multiple inspections before leaving the factory.

Application Range: Encoder backup power for CNC machine tool servo drives, absolute encoder position retention for industrial robot joint motors, and battery maintenance and replacement for servo systems on automated production lines.

Special Notes: The battery pack's voltage status should be checked periodically, and it should be replaced promptly when capacity is insufficient to avoid loss of encoder data due to inadequate backup power; the product passes strict factory testing and carries a unique traceability code; a reliable spare part for absolute encoder position retention in servo systems.
