Product Name

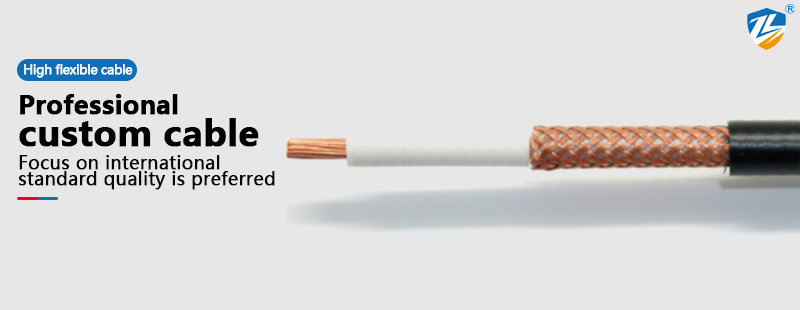

Single core high-speed shielded dragging chain cable
Product Application
Widely used in signal and control applications for automated CNC machining centers, servo motors or servo encoders and other drag chain systems. Copper wire shielding that meets EMC requirements prevents electromagnetic interference and is also suitable for data transmission, measurement, feedback, encoders, rotary transformers, tachometers, signal and system applications in dry and humid indoor and outdoor environments, as well as in areas such as cranes and conveyor facilities, as well as automated production processes.
Oil resistance according to DIN EN 60811-404 4 hours+90C
UV ozone and weather resistance in accordance with EN 50396 and HD 605 2
Resistant to coolant, microorganisms, weak acids and alkalis
Features
Compliant with RoHS
Complies with UL and CUL standards
Compliant with 2014/35/EU Guideline ("Low Voltage Directive") CE
Product structure
Conductor material bare copper
Conductor grade in accordance with DIN VDE 0295 Class 6 conductor or IEC 60228 Class 6 conductor
Core wire insulation PVC-J-105-003 (2105-LF)
Shielding tinned copper wire woven shielding density 280%
Outer sheath DQPVC-H-90-003 (9039-LF) low wear, anti-cutting, low adhesion
Sheath color black (RAL 9005): gray (RAL 7001): orange (RAL 2004): green (RAL 6018)
Technical parameter
Rated voltage 25 and above: 0.6/1KV: 0.75 to 16: 300/500V: 0.5 and below: 300/300V
Measured overvoltage 3500V: 2000V: 1500V
Conductor resistance+20 ° C according to DIN VDE 0295 Class 6 conductor or IEC 60228 Class 6 conductor
Fixed minimum bending radius of 4 x d
Minimum bending radius movement 7.5 x d
Movement speed self-supporting: max8 m/s, sliding: ax.5 m/s
Wire length self-supporting/sliding max.400 m
Acceleration max.100 m/s2
Bending cycle<35 times/min Life>8 million times
Fixed minimum/maximum operating temperature -40C/+100C (UL: 90C)
Working temperature shift minimum/maximum -25C/+100C (UL: 90C)
Flame retardant grade in accordance with IEC 60332-1-2; UL/CUI FT1、FT2
